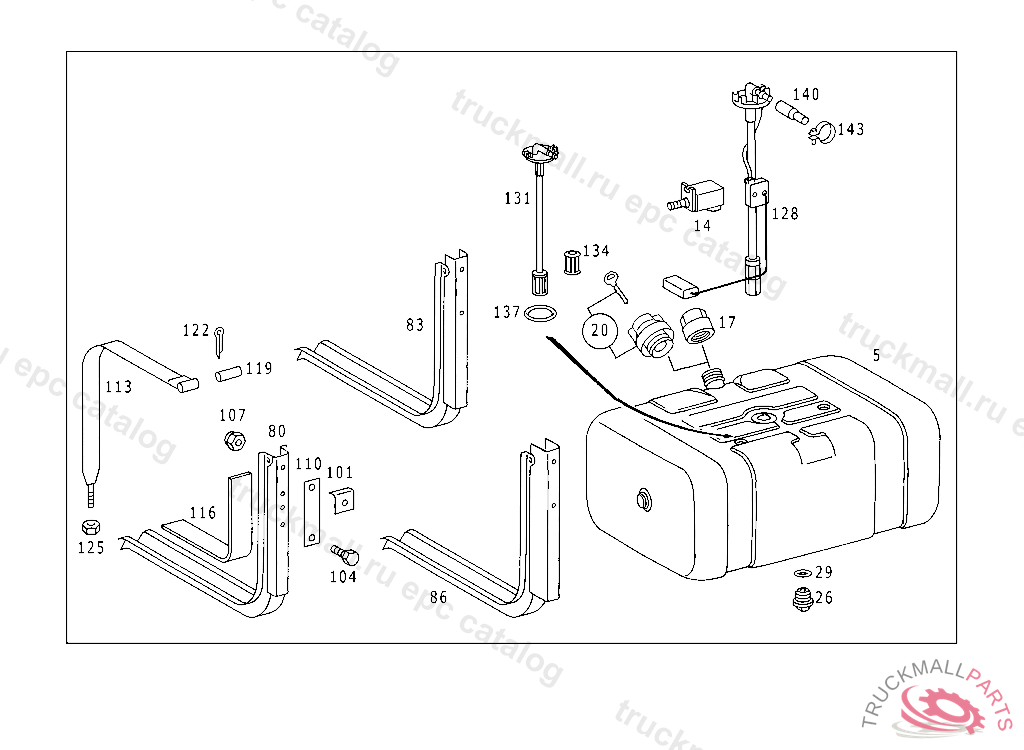

Поз.
Артикул
Описание
5
5
5
14
VALVE (VENT VALVE)
17
OUTFIT (LOCK,KEY,HANDLE) LOCKABLE
20
FILLER CAP FILLER CAP TO A 388 470 69 01
26
FITTING
29
SEAL RING FUEL STRAINER SCREEN
80
SUPPORT FUEL TANK
80
CONSOLE , Replaced By: A6964707442
83
104
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
104
SCREW BATTERY CASE TO SIDE MEMBER
107
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
110
PAD FUEL TANK TO CONSOLE
113
STRAP FUEL TANK TO SUPPORT
116
SHIM BRAKE ANCHOR
119
PIN STRAP TO CONSOLE
122
COTTER PIN STRAP TO SUPPORT
125
NUT FUEL TANK TO SUPPORT
128
SENDER UNIT FUEL GAUGE
131
134
STRAINER
137
SEAL RING
140
HOSE
143
CLAMP , Replaced By: N000000000667
