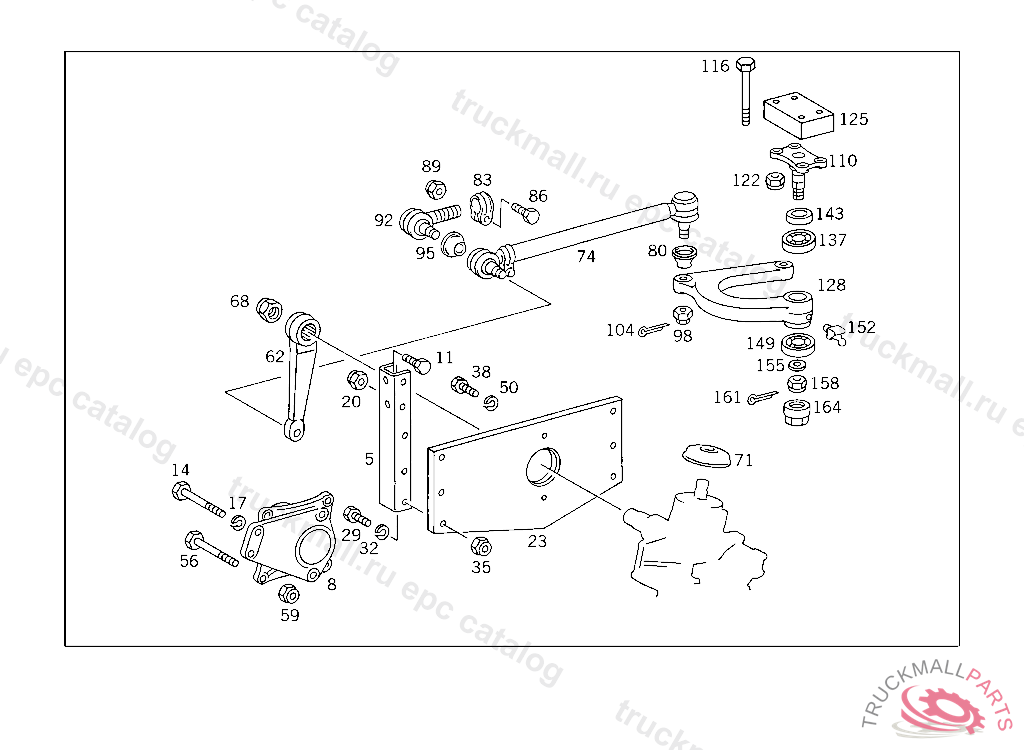

Поз.
Артикул
Описание
5
5
11
SCREW , Replaced By: N308676016020
20
NUT , Replaced By: N910113016001
23
23
29
SCREW , Replaced By: N308676016006
32
LOCK WASHERROCKINGER TYP 59 G140,59 G150
35
NUT , Replaced By: N910113016001
38
SCREW , Replaced By: N308676016007
50
LOCK WASHERROCKINGER TYP 59 G140,59 G150
62
62
68
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
71
BOOT
74
74
80
BOOT FIXED PART OF JOINT
83
CLAMP CLAMP, ONE-HOLE
86
SCREW CLAMP, TWO-HOLE, UP TO CHASSIS 5 034559, FROM CHASSIS SEE SERIE
89
HEXAGON NUT
89
NUT , Replaced By: N910113010002
92
JOINT R.H. THREAD LEMFOERDER,5 180856
92
JOINT R.H. THREAD EHRENREICH,5 180856
95
BOOT FIXED PART OF JOINT
98
NUT STEERING INTERMEDIATE ARM BEARING
104
COTTER PINROCKINGER TYP 260 G140
110
TRUNNION BEARING STEERING INTERMEDIATE ARM
116
SCREW , Replaced By: N308676014012
122
NUT STEERING SUPPORT TO FRAME
122
NUT , Replaced By: N910113014000
128
STEERING INTERMEDIATE ARM STEERING INTERMEDIATE ARM
137
TAPERED ROLLER BEARING FRONT
143
SEAL RING
149
TAPERED ROLLER BEARING BOTTOM
152
GREASE NIPPLE
155
THRUST WASHER STEERING INTERMEDIATE ARM BEARING
158
NUT STEERING INTERMEDIATE ARM BEARING
161
COTTER PINROCKINGER TYP 260 G140
164
CAP AT STEERING INTERMEDIATE ARM
999
RUBBER BUFFER
999
BUSHING
