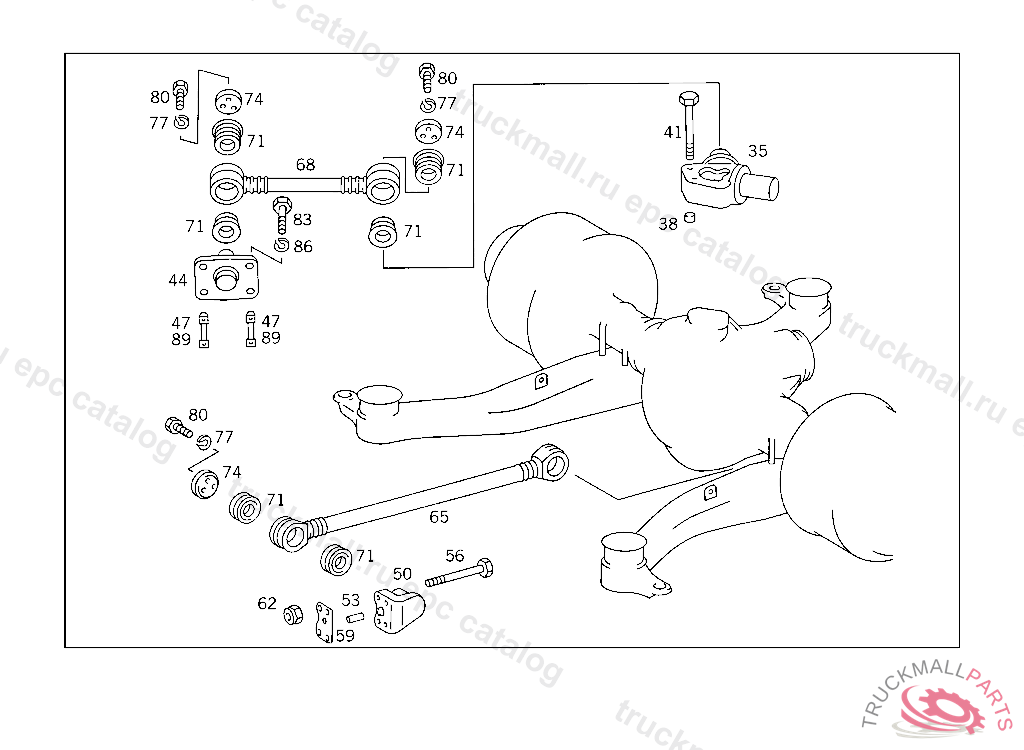

Поз.
Артикул
Описание
35
BEARING BODY REAR AXLE,TOP
38
BUSHING BEARING BODY TO REAR AXLE
41
SCREW BEARING BODY TO REAR AXLE
44
PIN LEFT AND RIGHT UPPER CONTROL ARMS
47
PLATE WITH THREADED HOLES DIAGONAL CONTROL ARM TO REAR AXLE AND TO FRAME
50
BEARING BRACKET THRUST ARM
53
PIN
56
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
56
SCREW , Replaced By: N308676018010
59
SHIM AS REQUIRED 4.00 MM
59
SHIM AS REQUIRED 3.50 MM
62
NUT TORSION BAR TO BEARING BRACKET,5 904661
65
THRUST ARM (LONGITUDINAL CONTROL ARM)
68
THRUST ARM LONGITUDINAL CONTROL ARM
68
THRUST ARM , Replaced By: A3573303111
71
RUBBER RING LONGITUDINAL CONTROL ARM TO BEARING BODY
71
RUBBER RING LONGITUDINAL CONTROL ARM TO BEARING BODY
74
THRUST WASHER LONGITUDINAL CONTROL ARM TO BEARING BODY AND TO REAR AXLE
77
LOCK WASHER FITTING TO BRACKET
80
SCREW LONGITUDINAL CONTROL ARM TO BEARING BODY AND TO REAR AXLE
83
SCREW , Replaced By: N304017016004
86
LOCK WASHERROCKINGER TYP 59 G140,59 G150
