Поз.
Артикул
Описание

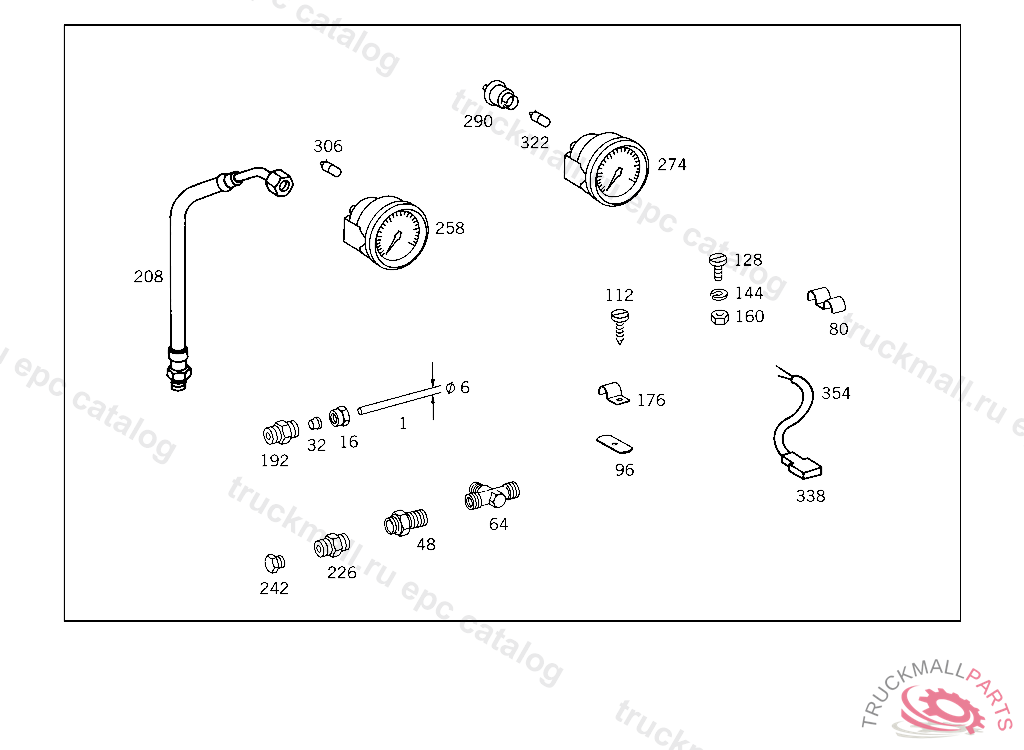

1
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
1
LINE , Replaced By: A0004296201
16
UNION NUT
32
GLAND , Replaced By: A0019901667
48
DOUBLE FITTING BETWEEN TIRE INFLATOR CYLINDER AND PRESSURE REGULATOR
64
CROSS FITTING BETWEEN THE LINES
80
CLAMP LINE MOUNTING
96
PLATE
112
SHEET METAL SCREW BUZZER TO CAB,4 374617
128
SCREW COMPRESSED AIR LINE MOUNTING
144
LOCK WASHER CONTACT PLATE TO STEERING WHEEL
160
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
176
CLAMP LINE MOUNTING
192
DOUBLE FITTING
208
HOSE PRESSURE GAUGE
226
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236, Replaced By: N000000006190
242
SCREW PLUG AT TANK
258
AIR PRESSURE GAUGE
274
AIR PRESSURE GAUGE
274
AIR PRESSURE GAUGE AT INSTRUMENT PANEL
274
AIR PRESSURE GAUGE , Replaced By: A0015420008
290
LAMP SOCKET INFLATION PRESSURE CONTROL SYSTEM
290
SOCKET SPEEDOMETER LIGHTING
306
BULB2W
322
BULB TELL-TALE LAMP
338
PLUG CONNECTOR ADDITIONAL FLOODLIGHT,5 216258
354
ELECTRIC CABLE FROM PLUG CONNECTION TO AIR PRESSURE GAUGE
999
CONNECTOR , Replaced By: A0004312031, +001N074302022304
999
