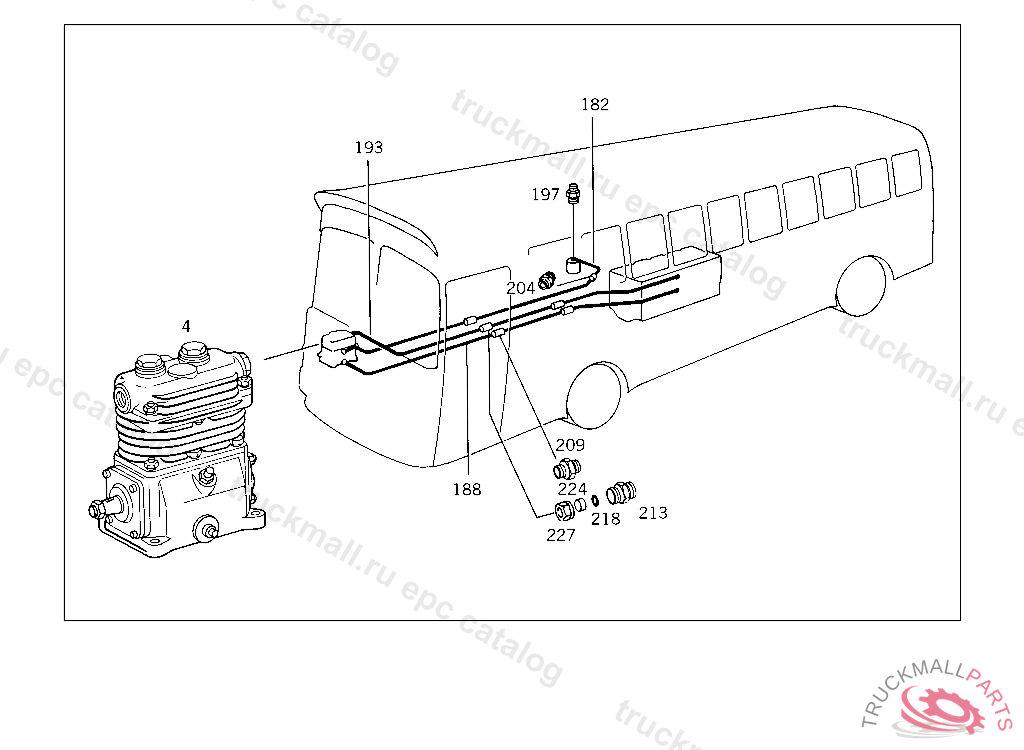

Поз.
Артикул
Описание
4
COMPRESSOR TWO-CYLINDER AIR COMPRESSOR
4
COMPRESSOR TWO-CYLINDER AIR COMPRESSOR
182
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
188
LINE FROM EXPANSION TANK TO HEATING PIPE 8X1 MM, ORDER BY THE METER
193
LINE GAS LINE 10X1,5, LENGTH AVAILABLE 3000 MM REPAIR WORK SUBJECT TO SAFETY CHECK
197
SCREW FITTING LUBRICATING LINE
204
ADAPTER FITTING FUEL LINE
209
FITTING (PARTS KIT),LINE RUPTURE
209
FITTING , Replaced By: A0029905971
213
FITTING (PARTS KIT),LINE RUPTURE
213
CONNECTION FITTING , Replaced By: A0049971672
218
SEAL RING PNEUMATIC VALVE
218
SEAL RING , Replaced By: N007603010110
224
KLEMMRING. SEAL CONE OIL RETURN LINE
224
SEAL CONE FEED LINE AND RETURN LINE,842222, 001-041
227
UNION NUT LINE CONNECTION
227
UNION NUT
999
999
COMPRESSOR AIR-COOLED
999
COMPRESSOR WATER-COOLED
999
SCREW BRACKET TO APPARATUS SUPPORT
999
SCREW , Replaced By: A0069909301
999
DOUBLE FITTING LINE CONNECTION TO P.T.O. SHIFTING CYLINDER
