Главная
›
Mercedes
›
TRUCK
›
3331 K - 3340 K
›
374.685
›

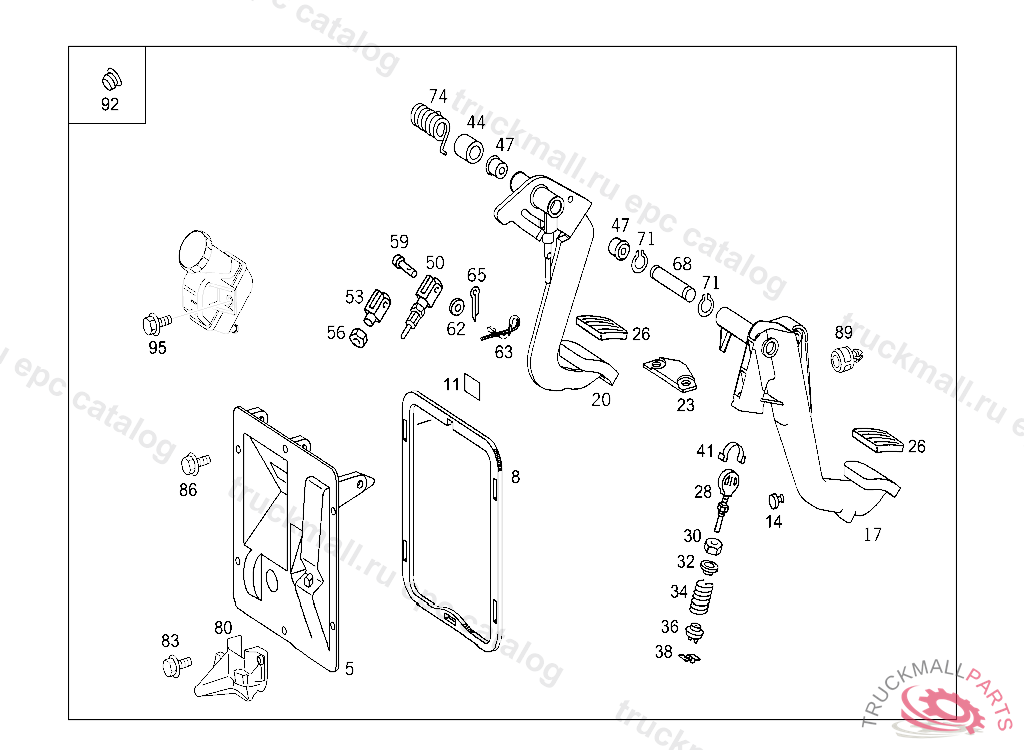

29 PEDAL ASSEMBLY
›
090 CLUTCH AND BRAKE PEDAL ASSEMBLY
Mercedes N304032008005 - ГАЙКА М8
3331 K - 3340 K 374.685
29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
Поз.
Артикул
Описание
5
A9402940001
8
A9702940080
17
A9402900416
17
A9402900216
20
A9402900118
20
A9402900418
26
A2012920082
PAD BRAKE PEDAL
44
A9702940053
SPACER TUBE BRAKE PEDAL TO BEARING BRACKET
47
A1242920050
BUSHING BRAKE PEDAL
50
A9702900239
53
N071752008003
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
56
N304032008005
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
59
A3852920174
PIN ROD TO BRAKE PEDAL
62
N000433008406
WASHER BRACKET TO CROSS MEMBER
65
N000094002059
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
68
A9702940274
PIN CLUTCH AND BRAKE PEDALS TO BEARING BRACKET
71
A0079942041
LOCK STOP TO BEARING BRACKET
74
A9409930020
86
N000000006271
HEXAGON HEAD BOLT PROTECTIVE PLATE TO CLAMP M8X20,V 214001
89
A1242910086
STOP CLUTCH PEDAL
89
A1632910086
