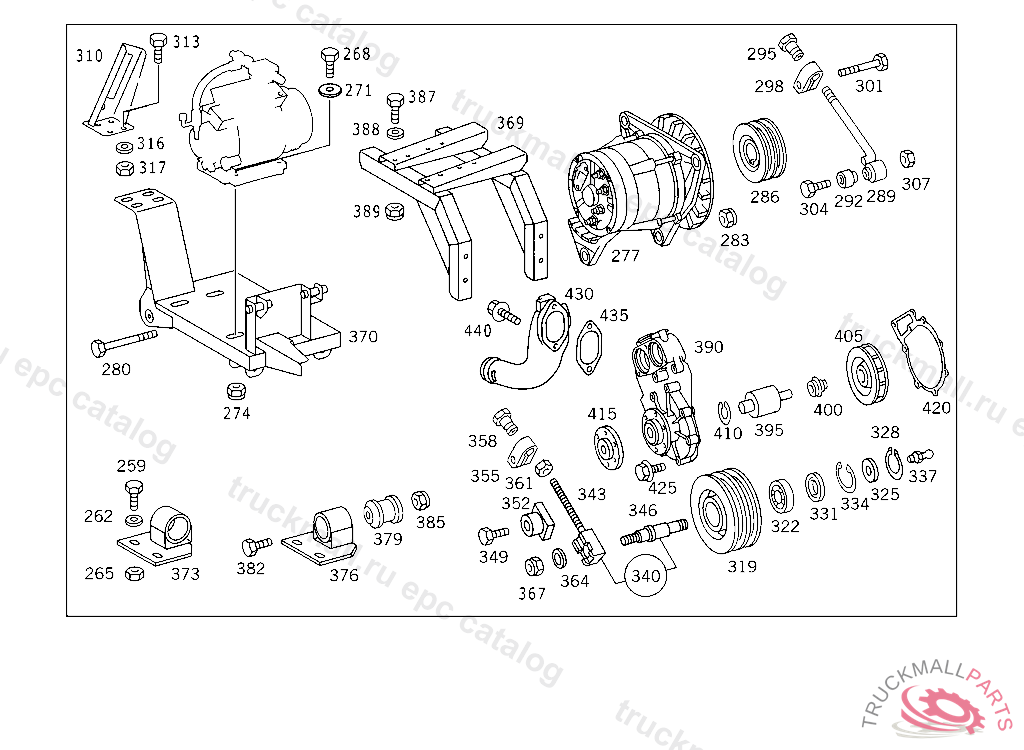

Поз.
Артикул
Описание
259
SCREW BRACKET TO BUMPER,LEFT M 10X25
262
WASHER GROUND CABLE
265
NUT BRACKET TO RETARDER
268
SCREW , Replaced By: N304017010040
271
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
274
NUT , Replaced By: N910113010003
277
ALTERNATOR
277
ALTERNATOR
280
SCREW BEARING BRACKET TO CONSOLE
280
SCREW ALTERNATOR TO SUPPORT
283
NUT ALTERNATOR TO SUPPORT
286
PULLEY
289
CLAMPING BOLT ALTERNATOR TO SUPPORT
292
BUSHING
295
NUT TIGHTENER PULLEY TO LEVER
298
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
301
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
304
SCREW CLAMPING BOLT TO BRACKET
307
NUT OIL COOLER TO BRACKET,TOP
310
BRACKET COMPRESSOR BEARING
313
SCREW BRACKET TO BUMPER,LEFT M 10X25
316
WASHER GROUND CABLE
317
NUT BRACKET TO RETARDER
319
PULLEY BELT TIGHTENER
322
GROOVED BALL BEARING BELT TIGHTENER
325
SPACER WASHER BELT TIGHTENER 1.00 MM
325
SPACER WASHER BELT TIGHTENER 0.20 MM
325
SPACER WASHER BELT TIGHTENER 0.20 MM
325
SPACER WASHER BELT TIGHTENER 0.50 MM
325
SPACER WASHER BELT TIGHTENER 0.20 MM
325
SPACER WASHER BELT TIGHTENER 1.00 MM
328
LOCK RING BELT TIGHTENER
331
SPACER TUBE BELT TIGHTENER
334
LOCK RING BELT TIGHTENER
337
GREASE NIPPLE INTERMEDIATE LEVER
340
TIGHTENER PULLEY BELT TIGHTENER
343
SUPPORT BELT TIGHTENER
346
PIN BELT TIGHTENER
349
SCREW , Replaced By: A0089908001
352
CLAMPING PIECE
355
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
358
NUT TIGHTENER PULLEY TO LEVER
361
NUT ALTERNATOR TO SUPPORT
364
WASHER , Replaced By: N000125017016
367
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
369
SUPPORT FOR REFRIGERANT COMPRESSOR
369
SUPPORT FOR REFRIGERANT COMPRESSOR
370
SUPPORT FOR REFRIGERANT COMPRESSOR
373
BEARING COMPRESSOR BEARING
376
BEARING COMPRESSOR BEARING
379
BUFFER BEARING BRACKET TO CONSOLE
382
SCREW ALTERNATOR TO SUPPORT
385
NUT ALTERNATOR TO SUPPORT
387
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
387
SCREW , Replaced By: N304017010040
387
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
388
WASHER
388
WASHER GROUND CABLE
389
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
389
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
390
WATER PUMP
395
SHAFT
395
SHAFT
395
SHAFT , Replaced By: A4032001802
395
SHAFT , Replaced By: A4422000102
400
SEAL , Replaced By: A0012012619
400
SEAL , Replaced By: A0012011919
400
SEAL , Replaced By: A0012011919
400
SEAL , Replaced By: A0012011819
400
SEAL , Replaced By: A0012011719
400
SEAL WITH THRUST RING AND BOOT
405
IMPELLER
410
LOCK RING TORSION BAR TO LINK,5 903513
415
HUB WATER PUMP
420
GASKET WATER PUMP
425
SCREW EXHAUST PIPE TO MUFFLER AND TO HEATER UNIT M 8X55
430
INTAKE PIPE SOCKET AT WATER PUMP COVER
435
GASKET
440
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
999
PLATE FRONT AXLE BEAM STRUT
999
LOOM TIE CONNECTING PIPE TO INTAKE PIPE
999
CLAMP ,1B263724
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
O-RING CHECK VALVE TO AIR RESERVOIR
