Поз.
Артикул
Описание

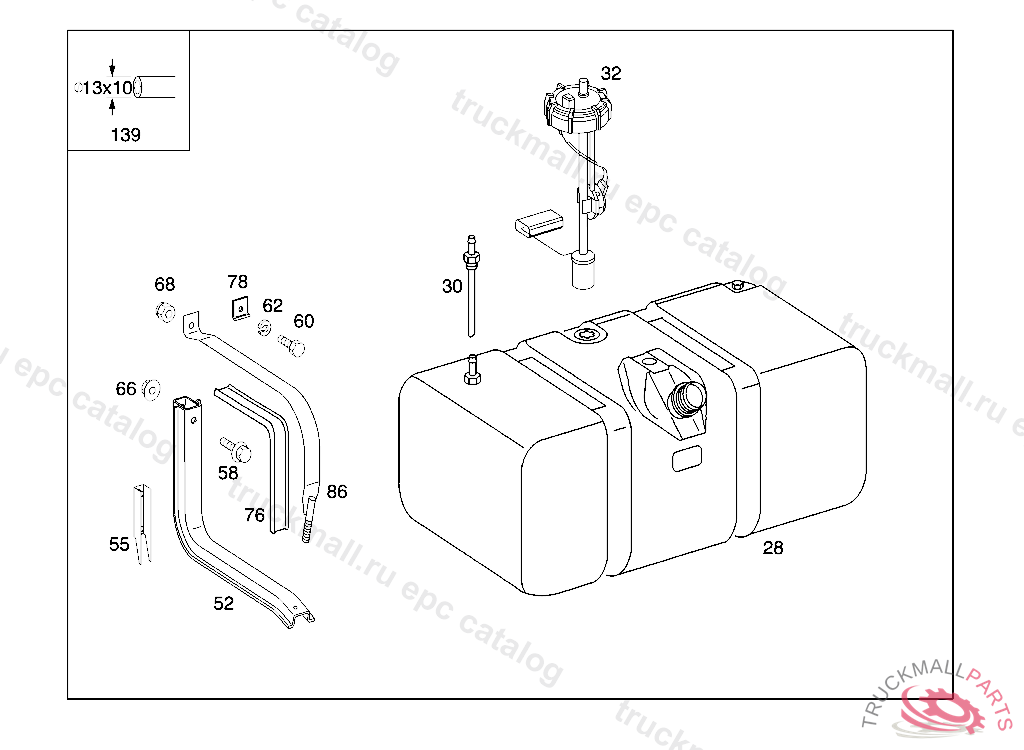

28
FUEL TANK100 L
30
LINE
32
FUEL GAUGE DASH UNIT
52
SUPPORT FUEL TANK,FRONT AND REAR
55
BRACKET
58
SCREW BRACKET TO FRAME
58
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
60
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
62
LOCK WASHER BRACKET TO SUPPORTING ARM
66
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
68
NUT BRACKET TO RETARDER
76
PAD SUPPORT TO SIDE MEMBER
78
PLATE STRAP TO CONSOLE
86
STRAP FUEL TANK TO SUPPORT
139
HOSE FEED & RETURN 13X1.5 MM, ORDER BY THE METER
139
HOSE FEED & RETURN 13X1.5 MM, ORDER BY THE METER
999
SEAL RING FUEL STRAINER SCREEN
999
CLAMPING PLATE
999
WASHER BATTERY CASE
999
LOOM TIE , Replaced By: A3459977390
999
FITTING
999
FUEL TANK
999
FRAME
999
FRAME
999
LOOM TIE BATTERY MOUNTING,D 211563
999
FUEL TANK LESS SENDER UNIT "300 L",D 276012
999
FUEL TANK LESS SENDER UNIT 210 L
999
PAD SUPPORT TO SIDE MEMBER
999
FUEL TANK LESS SENDER UNIT 300 L
999
OUTFIT (LOCK,KEY,HANDLE) LOCKABLE
999
VALVE (VENT VALVE)
999
STRAP FUEL TANK MOUNTING
999
FUEL TANK LESS SENDER UNIT
999
SUPPORT FUEL TANK MOUNTING,D 339846
999
FUEL TANK LESS SENDER UNIT BEPO , 150L, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A9794700503
999
BOTTOM PLATETOA 979 470 02 90
999
FILTER ELEMENTTORACOR
999
FUEL GAUGE DASH UNIT FUEL GAUGE TO A 979 470 01 03,D 339846
999
RUBBER MAT ,D 339846
999
RUBBER SECTION ,D 339846D 437847
