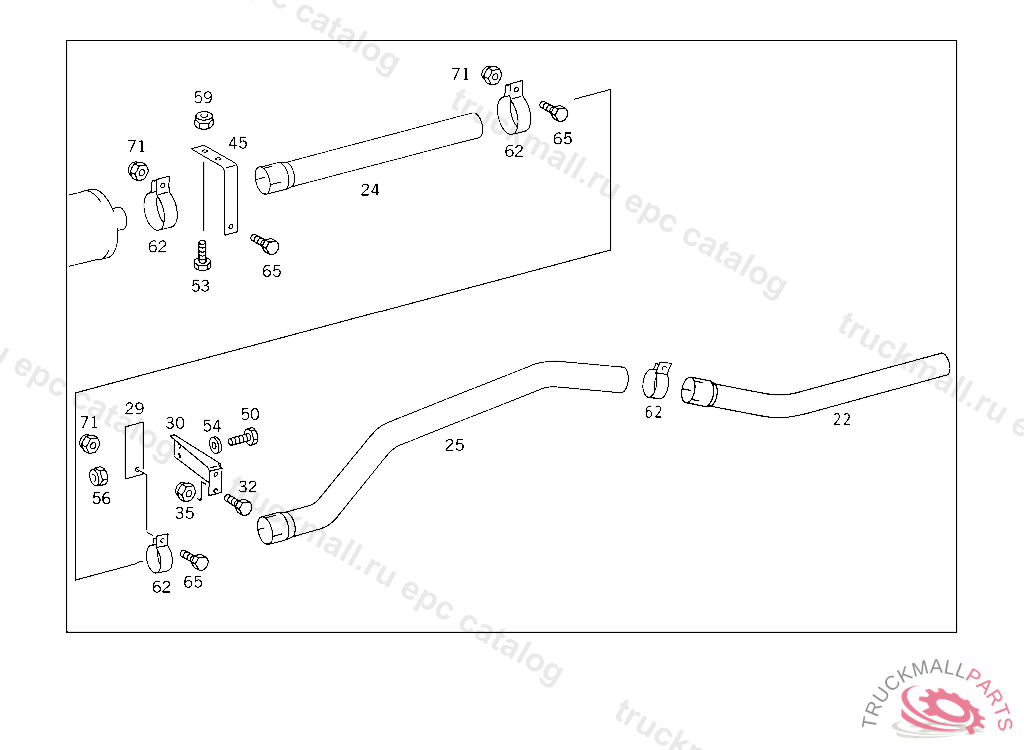

Поз.
Артикул
Описание
22
REAR EXHAUST PIPE CENTRAL EXHAUST PIPE
24
CONNECTOR CENTRAL EXHAUST PIPE
25
REAR EXHAUST PIPE
29
SUPPORT EXHAUST PIPE SUSPENSION
30
SUPPORT EXHAUST PIPE SUSPENSION
32
SCREW , Replaced By: N910143008002
35
NUT HORN TO BRACKET M8
45
BRACKET
45
BRACKET EXHAUST PIPE TO SUPPORT
50
SCREW , Replaced By: N910143008002
50
SCREW PLUG SOCKET TO FRAME
50
SCREW PLUG SOCKET TO FRAME
53
SCREW CROSS MEMBER TO SIDE MEMBERS
53
SCREW , Replaced By: N304017010002
54
WASHER , Replaced By: N000125008443
56
NUT HORN TO BRACKET M8
56
NUT HORN TO BRACKET M8
59
NUT BRACKET TO CROSS MEMBER
62
CLAMP , Replaced By: N071555100501
62
CLAMP EXHAUST PIPE TO BRACKET
65
SCREW POWER CYLINDER TO BEARING BRACKET
65
SCREW , Replaced By: N304017010040
71
NUT HORN TO BRACKET M8
71
NUT BRACKET TO CROSS MEMBER
