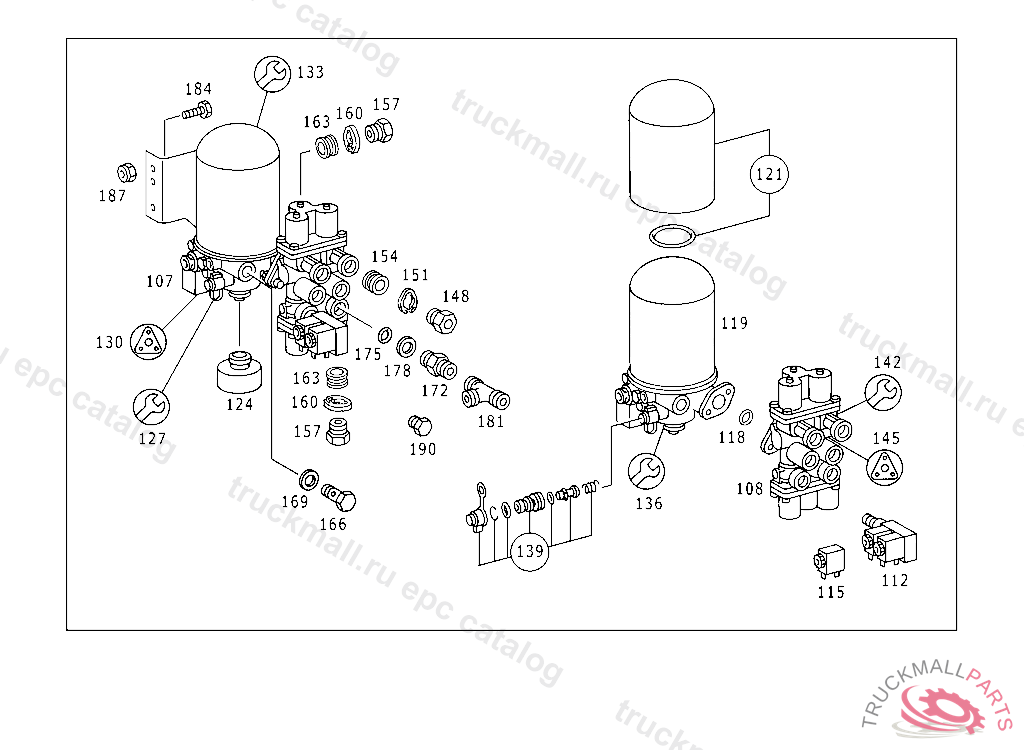

Поз.
Артикул
Описание
107
VALVE VALVES,BRAKE BOOSTER KNORR
107
VALVE VALVES,BRAKE BOOSTER WABCO
108
VALVE FOUR-CIRCUIT PROTECTIVE VALVE TO 693 420 75 71
108
VALVE FOUR-CIRCUIT PROTECTIVE VALVE TO 693 420 73 71
112
VALVETO 382 420 72 71
112
VALVE"PARKER", TO 696 420 71 71
112
VALVE EXHAUST BRAKE TO382 42073 71, NOT USED
115
SOLENOIDTO 386 997 73 36
118
SEAL RINGTO 693 420 73 71
119
AIR DEHYDRATORTO 693 420 75 71
119
ANTI-FREEZE DEVICETO 693 420 73 71
121
REPAIR KIT. AIR CLEANERTO 693 420 75 71
121
AIR CLEANER COMPLETE TO BOSCH,KNORR
121
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
124
MUFFLER VALVE CENTRE TO 693 420 75 71
127
GASKET KIT AIR DEHYDRATOR TO 693 420 75 71
130
GASKET KIT AIR DEHYDRATOR TO 693 420 75 71
133
ANTI-FREEZE DEVICE. REPAIR KIT AIR DEHYDRATOR TO 693 420 73 71
133
REPAIR KIT , Replaced By: A0004303115
136
ANTI-FREEZE DEVICE. REPAIR KIT VALVE TO 693 420 73 71
136
GASKET KIT , Replaced By: A0004303215
139
PARTS KIT PRESSURE REGULATOR TO 693 420 73 71,75 71
142
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE TO 693 420 75 71
142
REPAIR KIT VALVE TO 695 420 75 71
145
RS PROTECTION VALVE FOUR-CIRCUIT PROTECTIVE VALVE TO 693 420 75 71,D 333550
145
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE TO 693 420 75 71,D 333549
148
SCREW. UNION SCREW LINE CONNECTION
148
SCREW. UNION SCREW LINE CONNECTION
151
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
151
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
154
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
154
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
157
SCREW. UNION SCREW , Replaced By: A0009973734
160
LOCK , Replaced By: A0009945448
163
SEAL RING , Replaced By: A0009940747
166
HOLLOW SCREW OIL LINE TO TRANSMISSION
169
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
175
O-RING CHECK VALVE TO AIR RESERVOIR
175
O-RING CHECK VALVE TO AIR RESERVOIR
178
THRUST RING CHECK VALVE TO AIR RESERVOIR
178
THRUST RING CHECK VALVE TO AIR RESERVOIR
184
SCREW BATTERY CASE
187
NUT , Replaced By: N910113014000
190
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
999
REPAIR KIT PRESSURE REGULATOR TO 693 420 73 71
999
PRESSURE REGULATOR , Replaced By: A0024314306
999
REPAIR KIT VALVE TO 000 420 40 71
999
REPAIR KIT VALVE TO 000 420 49 71
