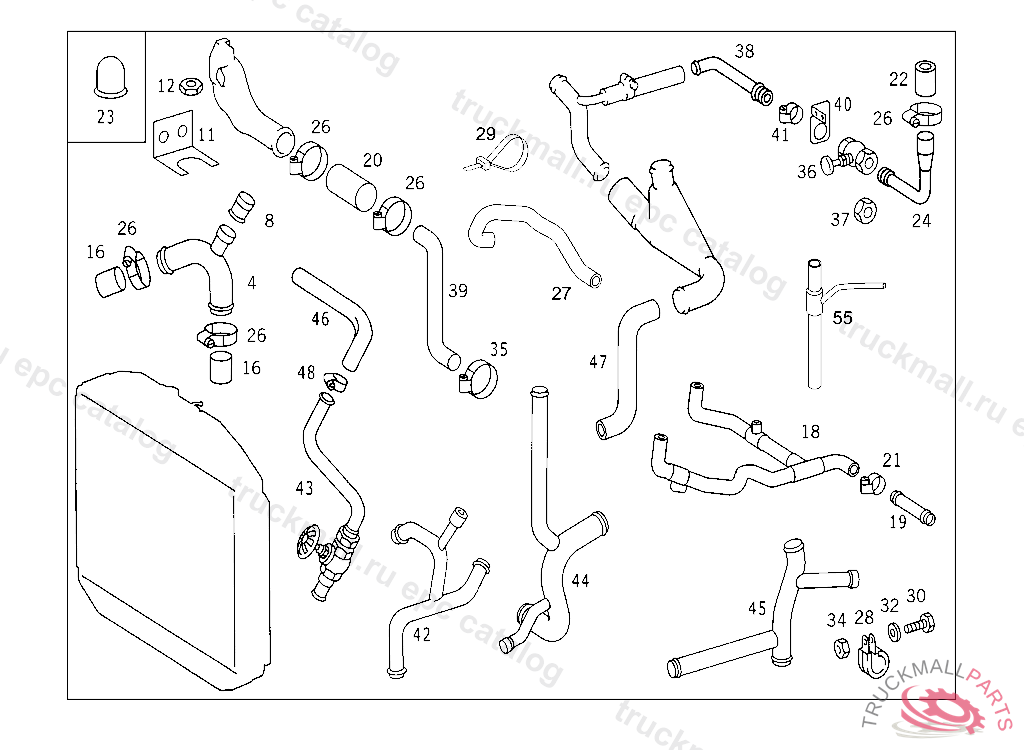

Поз.
Артикул
Описание
4
PIPE ELBOW FROM RADIATOR TO WATER PUMP
8
FITTING BUBBLE SEPARATOR
8
FITTING SHUT-OFF VALVE
8
FITTING BUBBLE SEPARATOR
11
ANGLE SHUT-OFF VALVE
12
NUT BUBBLE SEPARATOR
16
HOSE HEAT EXCHANGER
16
HOSE HEAT EXCHANGER
18
HOSE SHUT-OFF VALVE
19
COOLING WATER PIPE SHUT-OFF VALVE
20
HOSE FROM WATER PUMP TO INTERMEDIATE PIECE
21
CLAMP , Replaced By: N000000000670
21
CLAMP
21
CLAMP , Replaced By: N000000000671
21
CLAMP
21
CLAMP , Replaced By: N000000000670
22
HOSE HEATING WATER HOSE ON HEATING LINE 38X50X60
23
LOCKING CAP , Replaced By: A3845067233
23
LOCKING CAP SHUT-OFF VALVE
24
LINE HEATING WATER HOSE ON HEATING LINE
26
CLAMP CHARGE AIR INTERCOOLER
26
LOOM TIE HOSE TO FILLER NECK
26
LOOM TIE (DRY FILTER)
27
HOSE
28
CLAMP STAY TO BRACKET
29
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
30
SCREW
32
WASHER , Replaced By: N000125008443
34
NUT LEVER TO SHIFTING SHAFT
35
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
35
CLAMP25-40X13 MM
36
VALVE BUBBLE SEPARATOR
36
VALVE BUBBLE SEPARATOR
36
VALVE (SHUT-OFF VALVE),084759
36
VALVE HEATING WATER HOSE ON HEATING LINE
36
VALVE BUBBLE SEPARATOR
36
SEPARATOR HEATING WATER LINE
36
VALVE BUBBLE SEPARATOR
37
NUT BUBBLE SEPARATOR
38
LINE HEATING WATER HOSE ON HEATING LINE
39
HOSE FROM BUBBLE SEPARATOR TO WATER PUMP
40
BRACKET SHUT-OFF VALVE
41
CLAMP , Replaced By: N000000000670
41
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
42
SEPARATOR (BUBBLE SEPARATOR)
42
SEPARATOR (BUBBLE SEPARATOR),XB208693
42
SEPARATOR (BUBBLE SEPARATOR)
42
SEPARATOR (BUBBLE SEPARATOR)
43
SEPARATOR (BUBBLE SEPARATOR)
44
SEPARATOR (BUBBLE SEPARATOR),XB208694
45
SEPARATOR (BUBBLE SEPARATOR)
46
HOSE FROM RESERVOIR TO BUBBLE SEPARATOR
46
HOSE FROM RESERVOIR TO BUBBLE SEPARATOR
46
HOSE FROM EXPANSION TANK TO RADIATOR
47
HOSE FROM BUBBLE SEPARATOR TO WATER PUMP
48
CLAMP , Replaced By: N000000000667
48
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
55
HOSE ON WATER COOLER
55
HOSE BUBBLE SEPARATOR TO RADIATOR
999
LOCKING CAP AT WATER EXPANSION TANK
999
LOCKING CAP COOLING WATER LINE
999
SEPARATOR (BUBBLE SEPARATOR)
999
SHAFT SHUT-OFF VALVE
999
GUSSET PLATE FRONT, NOT USED
999
BRACKET SHUT-OFF VALVE
999
HOSE FROM INTERMEDIATE PIECE TO HEATING PIPE, NOT USED
999
HOSE
999
BRACKET HEATER UNIT, NOT USED
999
INTERMEDIATE PIECE HEATING WATER LINE, NOT USED
999
HOSE FROM RADIATOR TO WATER PUMP
