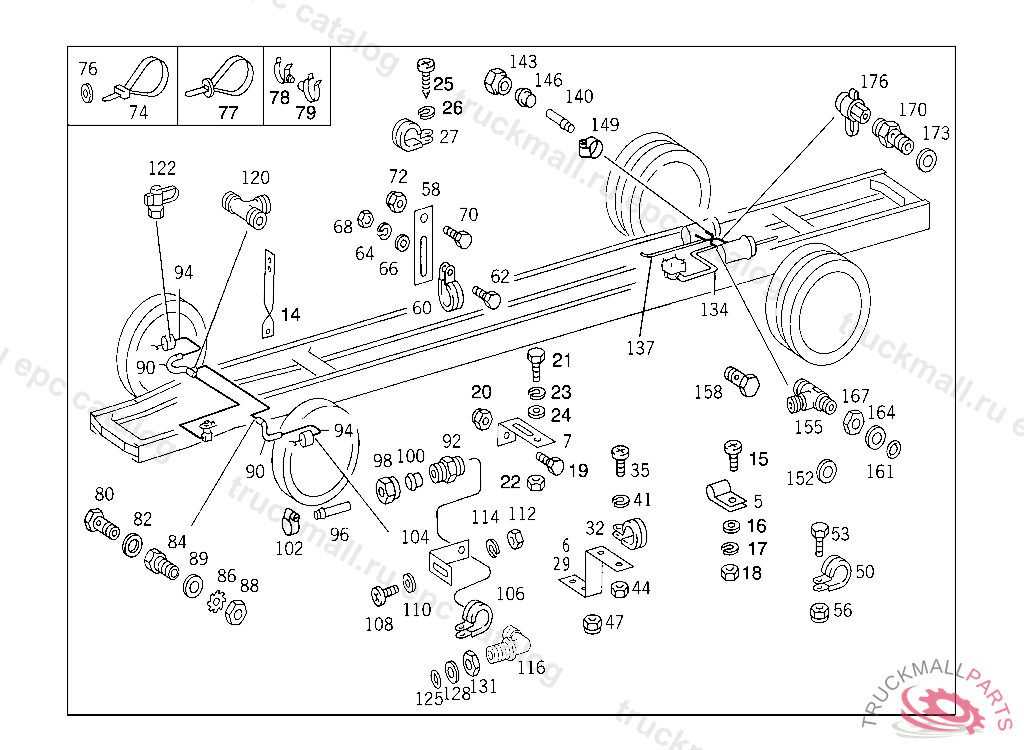

Поз.
Артикул
Описание
5
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
5
CLAMP , Replaced By: A3129952420
6
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
7
BRACKET POS. CABLE,XB209706
7
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
7
BRACKET , Replaced By: A3184280240
14
BRACKET AT TRANSMISSION CASE,D 009432
15
SCREW CAP TO BRACKET
16
WASHER PLUG SOCKET TO BRACKET
17
LOCK WASHER CABLE TO FUSE BOX
18
NUT
18
NUT
19
SCREW BRACKET TO BUMPER,LEFT M 10X25
20
NUT BRACKET TO SIDE MEMBER,XB209706
21
SCREW CLAMP TO BRACKET
22
NUT
23
LOCK WASHER CABLE TO FUSE BOX
24
WASHER PLUG SOCKET TO BRACKET
25
SHEET METAL SCREW6.3X16
26
LOCK WASHER CABLE TO FUSE BOX
27
CLAMP
27
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
53
SCREW PLUG SOCKET TO FRAME
56
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
58
BRACKET AT CROSS MEMBER
60
CLAMP PUMP TO BRACKET
62
SCREW CLAMP TO BRACKET
64
LOCK WASHER CABLE TO FUSE BOX
66
WASHER PLUG SOCKET TO BRACKET
68
NUT
70
SCREW ANGLE TO CROSS MEMBER M 10X30
72
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
74
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
74
LOOM TIE ELECTRIC CABLE MOUNTING
74
LOOM TIE AIR INTAKE HOSE TO CLAMP
74
LOOM TIE , Replaced By: A0019978490
76
WASHER TRAILER PLUG SOCKET TO BRACKET
76
WASHER , Replaced By: A3609902340
76
WASHER BRACKET TO LEFT SIDE MEMBER
77
LOOM TIE LINE MOUNTING
80
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
82
SEAL RINGTO 006 997 00 72
84
ADAPTER FITTING , Replaced By: A0004296934
86
TOOTHED WASHER SENDER UNIT TO BRACKET
86
TOOTHED WASHER SENDER UNIT TO BRACKET
88
NUT BRACKET TO SIDE MEMBER
88
NUT BRACKET TO SIDE MEMBER
90
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
90
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
90
BRAKE HOSE , Replaced By: A3844207248
90
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
90
BRAKE HOSE FROM QUICK-RELEASE VALVE TO COMBINATION CYLINDER,RIGHT
92
CONNECTION FITTING
92
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
94
LINE RIGHT FRONT WHEEL BRAKE CYLINDER 12X1 MM
94
LINE LEFT FRONT WHEEL BRAKE CYLINDER 12X1 MM
94
LINE FROM FITTING TO DIAPHRAGM CYLINDER,D 063242
96
FITTING
96
FITTING
98
UNION NUT LINE CONNECTION, Replaced By: N000000006239
100
GLAND , Replaced By: A0019901967
102
CLAMP HOSE TO FITTING AND TO OIL TANK
104
BRACKET COMPRESSED AIR LINE, BRAKE
104
BRACKET COMPRESSED AIR LINE TO BRAKE CYLINDER
106
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
106
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
108
SCREW CAP TO BRACKET
110
WASHER PLUG SOCKET TO BRACKET
112
NUT
114
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
116
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
116
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
116
FITTING , Replaced By: A0019909871
116
FITTING , Replaced By: A0019909871
120
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
120
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
122
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
122
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
122
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
125
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
128
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
128
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
128
THRUST RING LOCKING VALVE
131
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
134
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
134
BRAKE HOSE FROM QUICK-RELEASE VALVE TO COMBINATION CYLINDER,RIGHT
134
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
134
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
137
BRAKE HOSE FROM COMPRESSED AIR LINE TO REAR WHEEL BRAKE CYLINDER,D 030552
137
BRAKE HOSE FROM COMPRESSED AIR LINE TO REAR WHEEL BRAKE CYLINDER,D 030552
137
BRAKE HOSE FROM RELAY VALVE TO COMBINATION CYLINDER,D 122342
137
BRAKE HOSE FROM RELAY VALVE TO COMBINATION CYLINDER,D 122342
137
BRAKE HOSE FROM FITTING TO LEFT COMBINATION CYLINDER,CONNECTION: "11",D 122342
137
BRAKE HOSE FROM FITTING TO LEFT COMBINATION CYLINDER,CONNECTION: "11",D 122342
140
FITTING
143
UNION NUT LINE CONNECTION, Replaced By: N000000006239
146
GLAND , Replaced By: A0019901967
149
CLAMP HOSE TO FITTING AND TO OIL TANK
149
CLAMP , Replaced By: N916017011001
152
SEAL RINGTO 006 997 00 72
152
SEAL RINGTO 006 997 00 72
155
T-FITTING TRAILER CONTROL VALVE,CONNECTION: "1"
155
T-FITTING AIR RESERVOIR,CONNECTION: "31"
158
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
161
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
161
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
164
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
164
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
164
THRUST RING LOCKING VALVE
164
THRUST RING LOCKING VALVE
164
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
164
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
167
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
170
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
170
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
173
SEAL RINGTO 006 997 00 72
173
SEAL RINGTO 006 997 00 72
176
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
176
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
176
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
176
TEST CONNECTION
