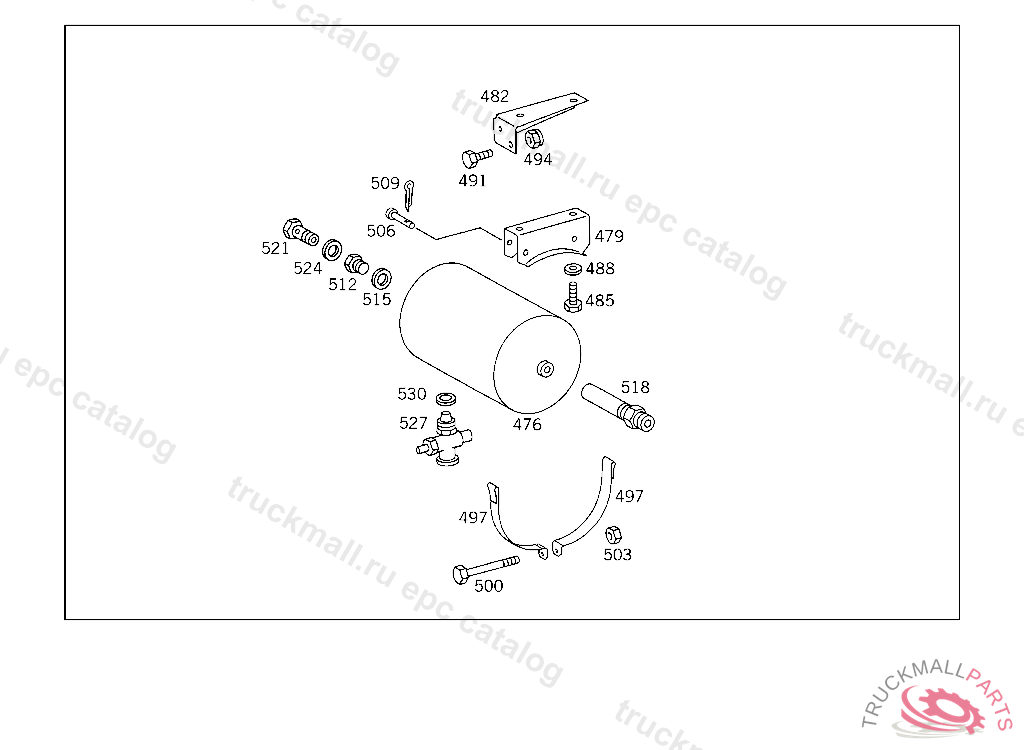

Поз.
Артикул
Описание
476
RESERVOIR
479
CONSOLE AIR RESERVOIR
482
BRACKET AIR RESERVOIR
485
SCREW
488
WASHER
491
SCREW BRACKET TO LEFT SIDE MEMBER
494
NUT BRACKET TO SIDE MEMBER
497
STRAP AIR RESERVOIR TO CONSOLE
497
STRAP AIR RESERVOIR TO CONSOLE
500
SCREW STRAP TO CONSOLE
503
NUT BRACKET TO RETARDER
506
PIN STRAP TO CONSOLE 20 L
509
COTTER PIN SHIFTING ROD TO BRACKET
512
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
515
SEAL RING LINE CONNECTION
518
CONNECTOR AIR RESERVOIR,CONNECTIONS: "11,12"
521
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
524
SEAL RINGTO 006 997 00 72
527
VALVE DRAIN 20 L
530
SEAL RING LINE CONNECTION
999
GUMMED LABEL
999
GUMMED LABEL
999
DECALCOMANIA
