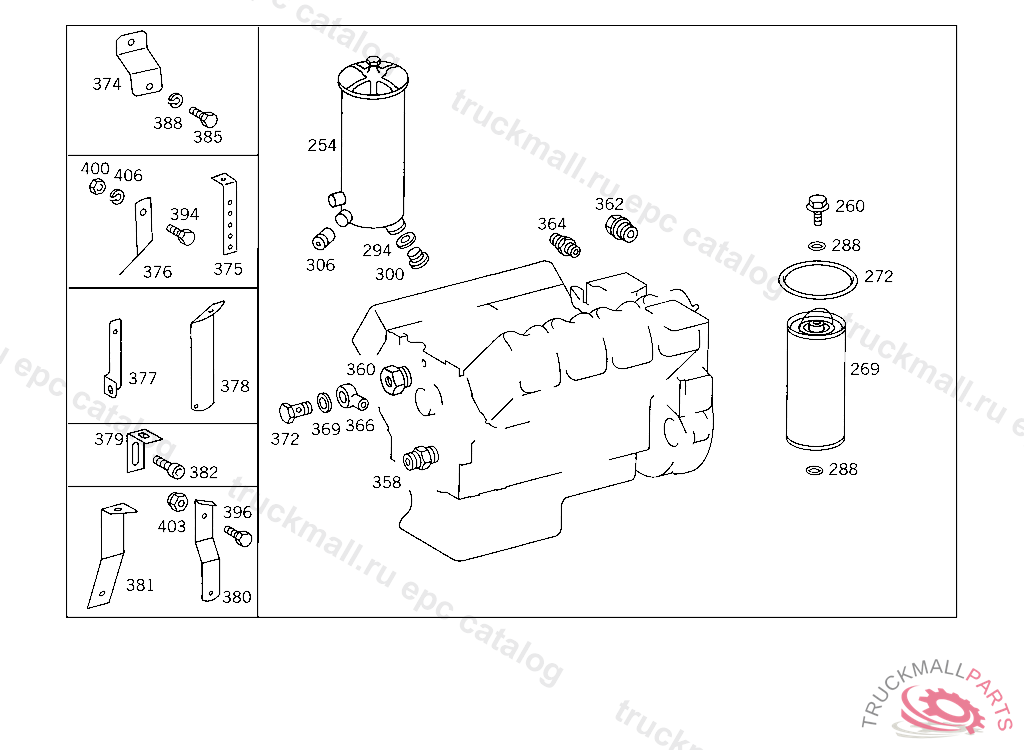

Поз.
Артикул
Описание
254
OIL FILTER
254
OIL FILTER , Replaced By: A4441800310
260
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
260
SCREW BRACKET MOUNTING
269
FILTER ELEMENT
269
FILTER ELEMENT
269
FILTER ELEMENT , Replaced By: A0001801809
272
SEAL RING
288
SEAL RING
294
SEAL RING
300
SCREW PLUG
306
PRESSURE RELIEF VALVE
306
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421800215
358
CONNECTOR OIL FEED LINE TO CYLINDER CRANKCASE
358
CONNECTOR OIL FEED LINE TO OIL FILTER
358
FITTING OIL RETURN TO TIMING CASE
360
CONNECTOR OIL PRESSURE SENDER UNIT CONNECTION
360
CONNECTOR OIL PRESSURE SENDER UNIT CONNECTION
362
CONNECTOR OIL FEED LINE TO CYLINDER CRANKCASE
364
FITTING OIL RETURN TO TIMING CASE
366
FITTING LINE CONNECTION
369
SEAL RINGTO 000 553 03 05,000 553 18 05,
372
HOLLOW SCREW FUEL LINE TO FEED PUMP
374
BRACKET OIL LINES
375
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
376
BRACKET OIL LINES
377
BRACKET OIL LINES
378
BRACKET OIL LINES,769499
379
BRACKET OIL LINES,769500
379
BRACKET FUEL LINES TO TRANSMISSION
380
BRACKET OIL LINES
381
BRACKET OIL LINES,769499
382
SCREW , Replaced By: A4419905201
385
SCREW , Replaced By: N304017016011
385
SCREWM 16X25
388
LOCK WASHERROCKINGER TYP 59 G140,59 G150
394
SCREW END PIECE TO EXHAUST PIPE M 10X25
396
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
396
SCREW , Replaced By: A0009903204
400
NUT , Replaced By: N913023010002
400
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
403
NUT STRAP TO BRACKET
403
NUT , Replaced By: N910113010000
406
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
SCREW PLUG OIL COOLER,5 360280
999
EXPANSION PLUG
999
SCREW BRACKET TO BRACKET, NOT USED
999
FILTER ELEMENT WITH GASKETS
