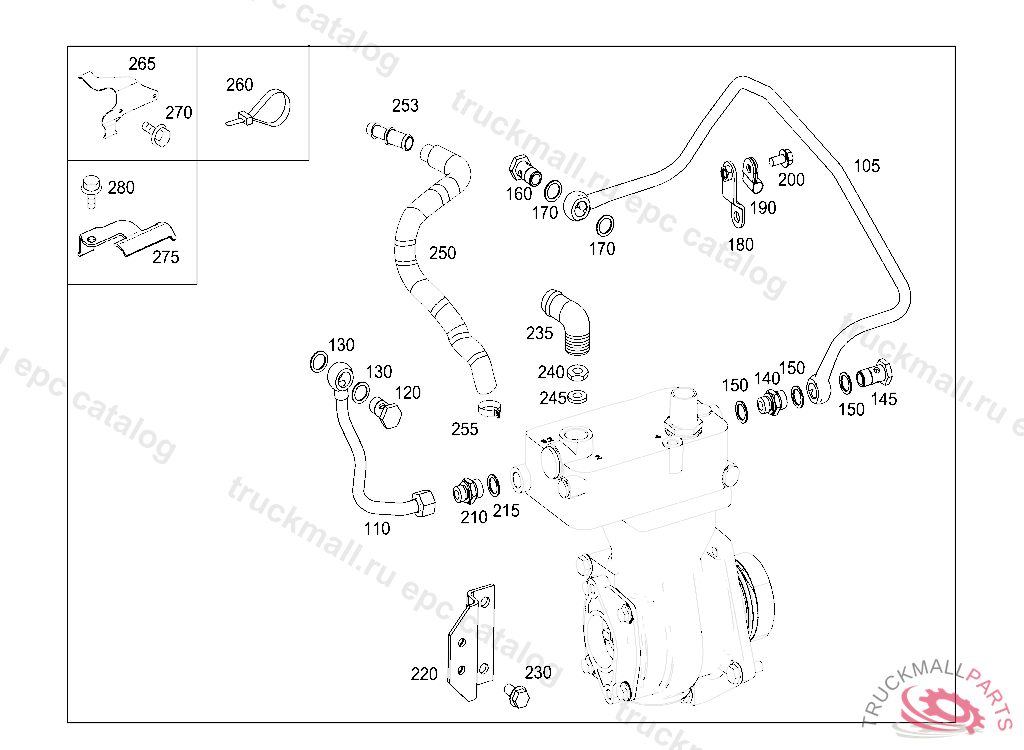

Поз.
Артикул
Описание
105
LINE COOLING WATER LINE FEED
105
LINE COOLING WATER LINE FEED,760252
110
LINE COOLING WATER LINE RETURN,760252
120
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
130
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
140
FITTING DELIVERY LINE TO PUMP
145
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
150
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
160
BANJO BOLT WITH 10 X 1-MM INTERNAL THREAD M 16X1.5 , TO 460 090 15 76
160
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
170
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
180
BRACKET COOLING WATER LINE TO TIMING CASE,760252
190
CLAMP
190
CLAMP COOLING WATER LINE TO TIMING CASE,760252
200
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
210
FITTING DELIVERY LINE TO PUMP
215
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
250
SUCTION LINE , UP TO ENGINE, Replaced By: A4601300257, +001A4601340240
250
SUCTION LINE
253
REDUCTION FITTING
255
CLAMP
260
CABLE TIE LINE MOUNTING 375X8.4MM
265
BRACKET BRACKET TO CHARGING AIR ELBOW, UP TO ENGINE 894496
265
BRACKET , FROM ENGINE 894497
270
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
275
BRACKET HOLDER AT EXHAUST GAS RECIRCULATION COOLER CARRIER
280
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
