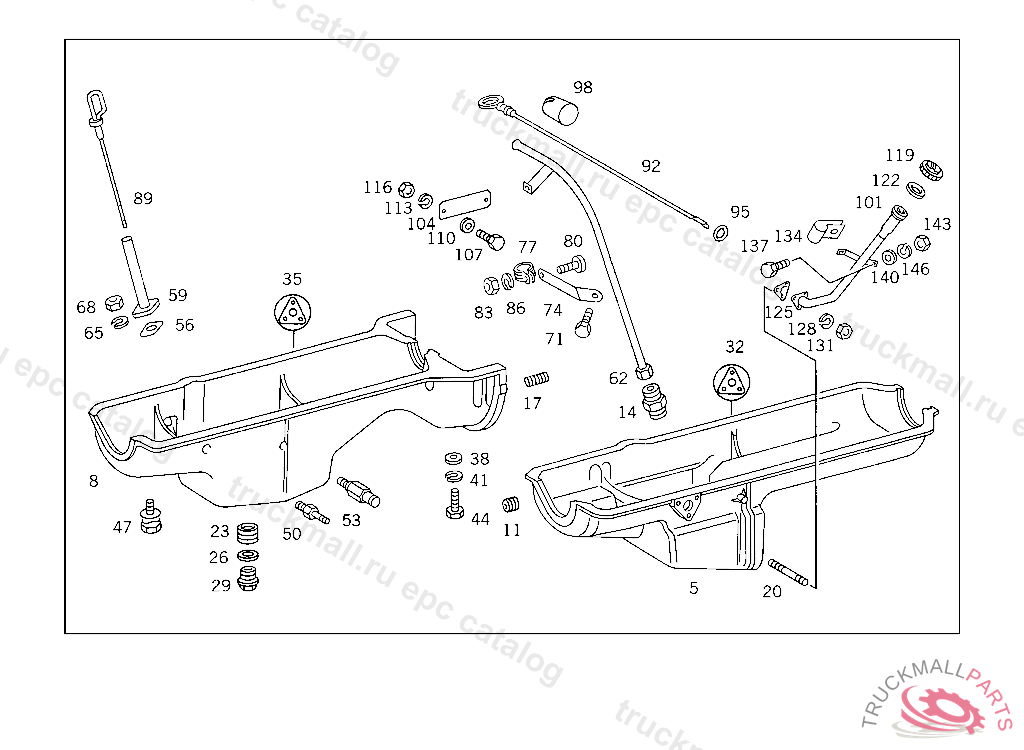

Поз.
Артикул
Описание
8
OIL PAN
11
THREADED INSERT TIMING CASE COVER
14
SCREW FITTING , Replaced By: A4039971172
17
THREADED INSERT
23
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
26
SEAL RING PREHEATER TO OIL PAN
29
SCREW PLUG OIL DRAIN
29
SCREW PLUG
35
GASKET KIT OIL PAN
38
WASHER TRAILER PLUG SOCKET TO BRACKET
38
WASHER GROUND CABLE
41
LOCK WASHER , Replaced By: N912004010102
41
LOCK WASHER CLUTCH TO FLYWHEEL
44
SCREW OIL FILTER TO SUPPORT M 8X150
44
SCREW REAR EXHAUST PIPE TO MUFFLER
47
COMBINATION BOLT OIL PAN TO CYLINDER CRANKCASE
62
GUIDE TUBE OIL DIPSTICK,071465
65
LOCK WASHER RAIL TO BATTERY SUPPORT
71
SCREW BRACKET TO DISC WHEEL M 8X16,D 315831
89
OIL DIPSTICK ,071465
95
SEAL RING
98
CAP
119
CAP OIL REFILLING
119
CAP , Replaced By: A0000180702
119
CAP , Replaced By: A3440180168
119
CAP , Replaced By: A0000180702
119
COVER OIL FILLER NECK
122
GASKET COVER TO FITTING
122
GASKETTO 352 010 01 68
122
GASKET , Replaced By: A1020180080
