Поз.
Артикул
Описание

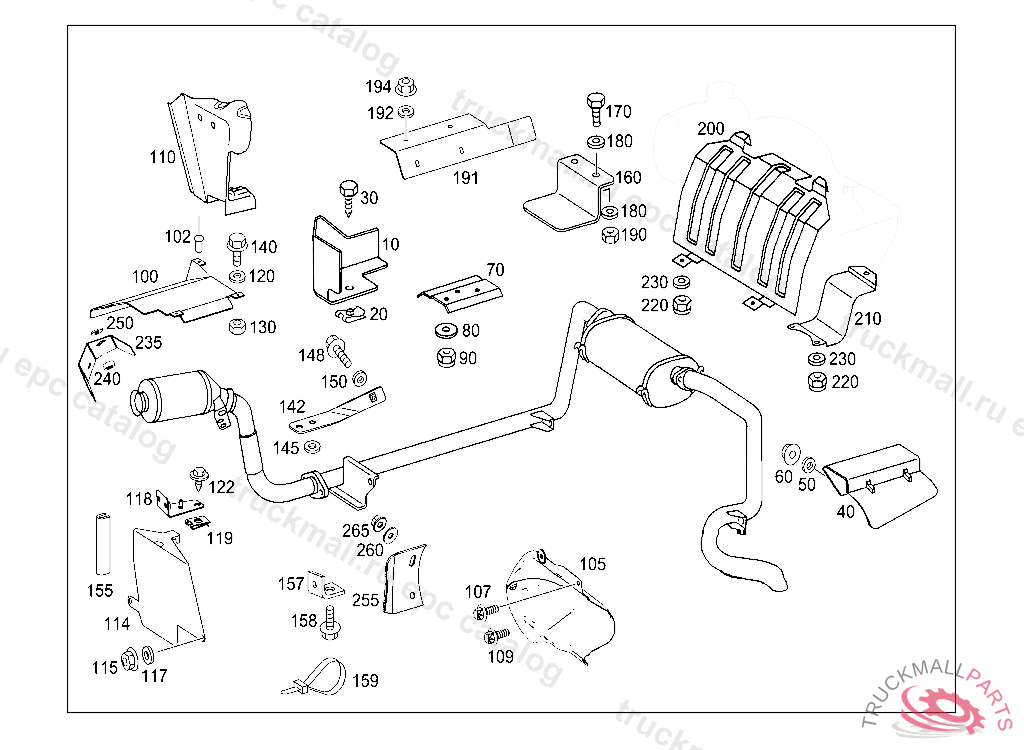

10
PROTECTIVE PLATE HEAT SHIELD AT BODY MOUNT,FRONT RIGHT
10
HEAT SHIELD HEAT SHIELD TO BODY SUSPENSION
20
CLIP-TYPE NUT BRACKET TO RELAY PLATE, A 994528 F 110300
20
LOCK AT ANGLE
30
TAPPING SCREW , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
30
TAPPING SCREW RADIATOR GRILLE SHELL TO ENGINE HOOD 4.8X13
40
PROTECTIVE PLATE LINE COVER,REAR LEFT ON SIDE MEMBER
70
PROTECTIVE PLATE COVERING,RIGHT FRONT SIDE MEMBER
80
WASHER LINE MOUNTING
90
NUT SPRING-LOADED PUSH ROD
90
NUT , Replaced By: N913023006001
100
SCREENING SIDE MEMBER COVERING, X 19216820110531
105
SCREENING PLATE AT CYLINDER HEAD
107
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
109
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
110
SHIELDING
110
HEAT SHIELD SIDE MEMBER
114
SCREENING FIRE WALL,CENTER
115
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
120
WASHER
120
WASHER MAIN MUFFLER SUSPENSION
130
HEXAGON NUT W COLLAR BRACKET MOUNTING
140
SCREW PUMP TO BRACKET
145
WASHER
145
WASHER MAIN MUFFLER SUSPENSION
148
SCREW LICENSE PLATE TO BRACKET
148
SCREW COVER PLATE TO BRACKET
150
WASHER COMPRESSED AIR LINE TO BRACKET
155
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
158
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
170
NUT HEATING PIPE TO BRACKET
191
PROTECTIVE PLATE TO MUFFLER ATTACHMENT, X 20407720121031
192
SCREW PUMP TO BRACKET
194
WASHER LINE MOUNTING
255
PROTECTIVE PLATE SHIELDING TO BEARING BRACKET, TO BE ADAPTED DURING ASSEMBLY
260
WASHER BRACKET TO CAB REAR PANEL
265
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
