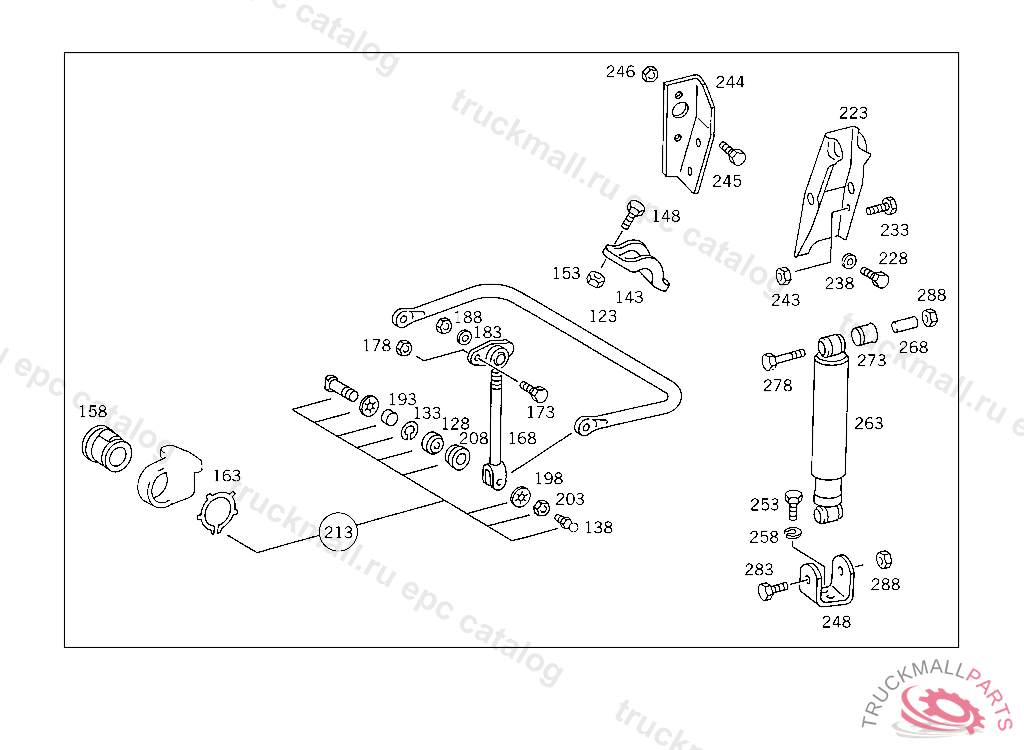

Поз.
Артикул
Описание
123
TORSION BAR TRAILING AXLE STABILIZER
128
JOINT BEARING , Replaced By: A0009817231
128
JOINT BEARING , Replaced By: A0009817331
128
JOINT BEARING , Replaced By: A0019814631
128
JOINT BEARING , Replaced By: A0009817231
128
JOINT BEARING
133
LOCK RING TORSION BAR
138
GREASE NIPPLE , Replaced By: N071412008102
138
GREASE NIPPLE
143
BRACKET TORSION BAR
148
SCREW , Replaced By: N308676012012
148
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
153
NUT SUPPORT TO SIDE MEMBER
158
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET,5 903513
163
LOCK RING SHACKLE TO TORSION BAR
168
ROD STABILIZER,4 653177
168
ROD ,4 653177, Replaced By: A6173200089
173
SCREW , Replaced By: N308676012026
173
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
178
NUT SUPPORT TO SIDE MEMBER
183
CONICAL SPRING WASHER ROD TO FRAME,4 653177
188
NUT COMBINATION CYLINDER TO BEARING BRACKET
188
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
193
SPACER TUBE
198
TOOTHED WASHER ROD TO TORSION BAR
198
TOOTHED WASHER ROD TO TORSION BAR
203
NUT ROD TO TORSION BAR
208
SEAL RING ROD TO TORSION BAR
213
REPAIR KIT TORSION BAR MOUNTING
223
CONSOLE , Replaced By: A6173200078
223
CONSOLE LEFT SHOCK ABSORBER
228
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
233
SCREW , Replaced By: N308676012012
233
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
238
WASHER , Replaced By: N007349013005
238
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
243
NUT SUPPORT TO SIDE MEMBER
248
BEARING BRACKET SHOCK ABSORBER,BOTTOM
253
SCREW , Replaced By: N308676012012
253
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
258
LOCK WASHER FITTING TO BRACKET
263
SHOCK ABSORBER FRONT AXLE
263
SHOCK ABSORBER , Replaced By: A0043233700
263
SHOCK ABSORBER FRONT AXLE
268
SPACER RINGTO 002 323 86 00,003 323 03 00,
268
BUSHINGTO 004 323 52 00
273
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
273
RUBBER BUFFER , Replaced By: A0003233144
273
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
278
SCREW SHOCK ABSORBER TO TOP BRACKET
283
SCREW , Replaced By: N000960016250
288
NUT COMBINATION CYLINDER TO BEARING BRACKET
288
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
JOINT BEARING
999
SHOCK ABSORBER
999
SHOCK ABSORBER , Replaced By: A6173260000
999
CONSOLE , Replaced By: A6173200178
999
BRACKET RIGHT SHOCK ABSORBER, UP TO CHASSIS 4 434076,FROM CHASSIS 4 434077 SEE SERIE
999
CONSOLE RIGHT SHOCK ABSORBER
999
RIVET REAR CROSS MEMBER 12X42 MM
