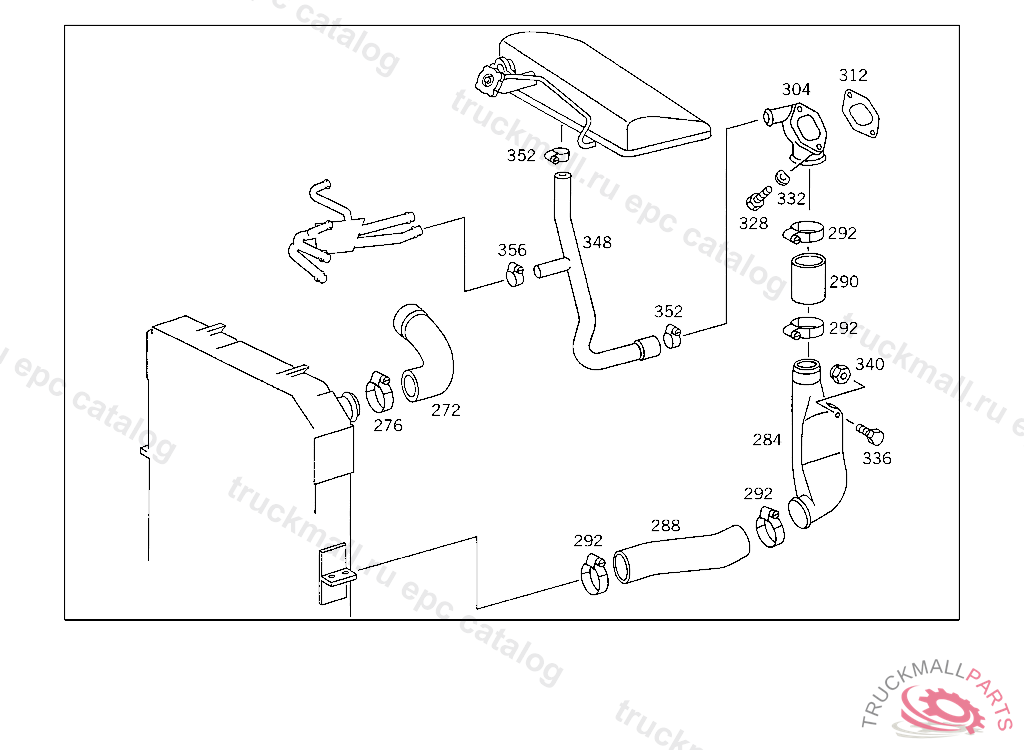

Поз.
Артикул
Описание
272
HOSE TRANSMISSION OIL COOLER, TO BE ADAPTED DURING ASSEMBLY
272
HOSE FROM RADIATOR TO THERMOSTAT
272
HOSE FROM RADIATOR TO THERMOSTAT
272
HOSE , Replaced By: A6175014982
276
CLAMP HOSE FASTENING 50-70X13 MM
276
CLAMP HOSE TO RETARDER 60-80X13 MM
276
CLAMP HOSE 70-90X13 MM
276
CLAMP , Replaced By: N000000000672
276
CLAMP , Replaced By: N000000000673
276
CLAMP , Replaced By: N000000000674
284
PIPE ELBOW AT WATER PUMP,5 193594
284
PIPE ELBOW , Replaced By: A6205010056
284
PIPE ELBOW , Replaced By: A6205010556
284
PIPE ELBOW , Replaced By: A6555010756
284
PIPE ELBOW AT WATER PUMP,5 1935955 510517
288
HOSE FROM RADIATOR TO WATER PUMP
288
HOSE FROM RADIATOR TO WATER PUMP,5 193595
288
HOSE , Replaced By: A6555011282
288
HOSE FROM RADIATOR OUTLET TO WATER PUMP
290
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
292
CLAMP HOSE 70-90X13 MM
292
CLAMP , Replaced By: N000000000674
304
CONNECTOR , Replaced By: A6205010223
304
CONNECTOR AT WATER PUMP
312
GASKET CONNECTOR, Replaced By: A0002011180
312
GASKET CONNECTOR, Replaced By: A0002011280
312
GASKET CONNECTOR
312
GASKET , Replaced By: A4422010480
312
GASKET CONNECTOR, Replaced By: A0002011080
328
SCREW END PIECE TO EXHAUST PIPE M 10X25
332
SPRING WASHER STEERING COLUMN BRACKET TO CAB
336
SCREW RADIATOR M 10X45
336
SCREW BRACKET TO FRAME SIDE MEMBER
340
NUT STRAP TO BRACKET
340
NUT , Replaced By: N910113010000
348
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
352
CLAMP , Replaced By: N000000000670
356
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
356
CLAMP , Replaced By: N000000000667
999
THERMOSTAT OIL COOLER
999
DRAIN PIPE EXPANSION TANK
999
GASKET O.D., 37 MM
999
RADIATOR CAP
999
CLAMP , UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
999
SCREW BRACKET TO TRANSMISSION,5 360280
999
HOSE OVERFLOW
999
PIPE SUCTION LINE 1360 MM
999
PIPE FROM HOSE LINE TO OIL FILTER, UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
999
BRACKET GOVERNOR,5 360280
999
BRACKET EXPANSION TANK
999
BRACKET EXPANSION TANK
999
TANK (EXPANSION TANK)
999
BRACKET OIL COOLER TO RADIATOR
999
FITTING OIL LINE TO OIL COOLER
999
CLAMP CABLE HARNESS MOUNTING
999
THREADED CONNECTION SUCTION LINE TO OIL PUMP
999
SCREW , Replaced By: N304017006020
999
CUTTING RING. GLAND LINE CONNECTION
999
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
999
FITTING SUCTION LINE TO OIL PUMP
999
FITTING OIL TEMPERATURE REGULATOR
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SEAL RING OIL LINE TO OIL COOLER
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
SCREW PLUGROCKINGER,TYP 59 U150
999
SCREW LICENSE PLATE TO BRACKET
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
UNION NUT OIL LINE
999
SCREW CONNECTION SUCTION LINE TO OIL PUMP, Replaced By: N000000006460
999
CLAMP , Replaced By: N916016010211
999
CLAMP , Replaced By: N000000001045
