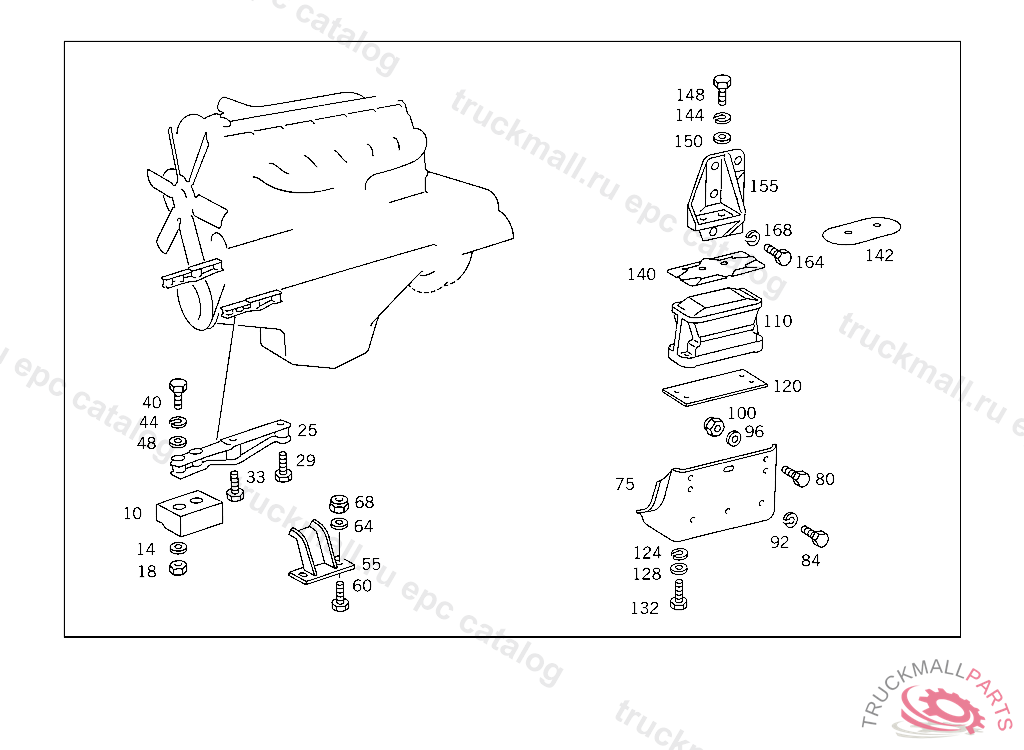

Поз.
Артикул
Описание
10
RUBBER MOUNTING ENGINE FRONT SUSPENSION
14
WASHER
18
NUT SUPPORT TO SIDE MEMBER
25
SUPPORTING ARM ENGINE FRONT SUSPENSION
29
SCREW SUPPORTING ARM TO ENGINE M 16X65
33
SCREW SUPPORT TO TRANSMISSION M 16X1.5X82
40
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 14X60
40
SCREW AT CROSS MEMBER
44
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
48
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
48
WASHER , Replaced By: N000125015019
55
STOP , Replaced By: A3462410165
55
RUBBER BUFFER RUBBER MOUNT
60
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
60
SCREW , Replaced By: N308676012026
64
WASHER
68
NUT SUPPORT TO SIDE MEMBER
75
CONSOLE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3462400006
75
CONSOLE ENGINE REAR SUSPENSION
80
SCREW BRACKET TO FRAME M 12X45
80
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
80
SCREW BRACKET TO FRAME M 12X35
84
HEXAGON HEAD BOLT , Replaced By: A0029902704
84
SCREW , Replaced By: N308676012013
92
LOCK WASHER FITTING TO BRACKET
96
WASHER
100
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
100
NUT , Replaced By: N910113012003
110
RUBBER MOUNTING REAR
110
RUBBER MOUNTING REAR
110
RUBBER MOUNTING REAR
110
RUBBER MOUNTING REAR
110
RUBBER MOUNTING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 356313, Replaced By: A6452400218
110
RUBBER MOUNTING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 356313, Replaced By: A6452400018
110
RUBBER MOUNTING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 356313, Replaced By: A6452400118
110
RUBBER MOUNTING , Replaced By: A6172400518
110
RUBBER MOUNTING , Replaced By: A6172400318
110
RUBBER MOUNTING , Replaced By: A6172400418
110
RUBBER MOUNTING REAR
110
RUBBER MOUNTING REAR
120
SHIM RUBBER MOUNTING TO ENGINE MOUNTING CONSOLE,4 740755
124
LOCK WASHER FITTING TO BRACKET
128
WASHER , Replaced By: N007349013005
128
WASHER , Replaced By: N000125015019
128
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
128
WASHER
128
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
132
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
132
SCREW CONSOLE TO SIDE MEMBER
132
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
140
SCREENING PLATE
140
SCREENING PLATE REAR RUBBER MOUNTING
144
LOCK WASHERROCKINGER TYP 59 G140,59 G150
148
SCREWM 16X16X24X42
148
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
148
150
WASHER CONSOLE TO FRAME
155
SUPPORTING ARM LEFT REAR
155
SUPPORTING ARM RIGHT REAR
164
SCREW SUPPORT TO SIDE MEMBER M 14X45
164
SCREW , Replaced By: N308676014012
168
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
