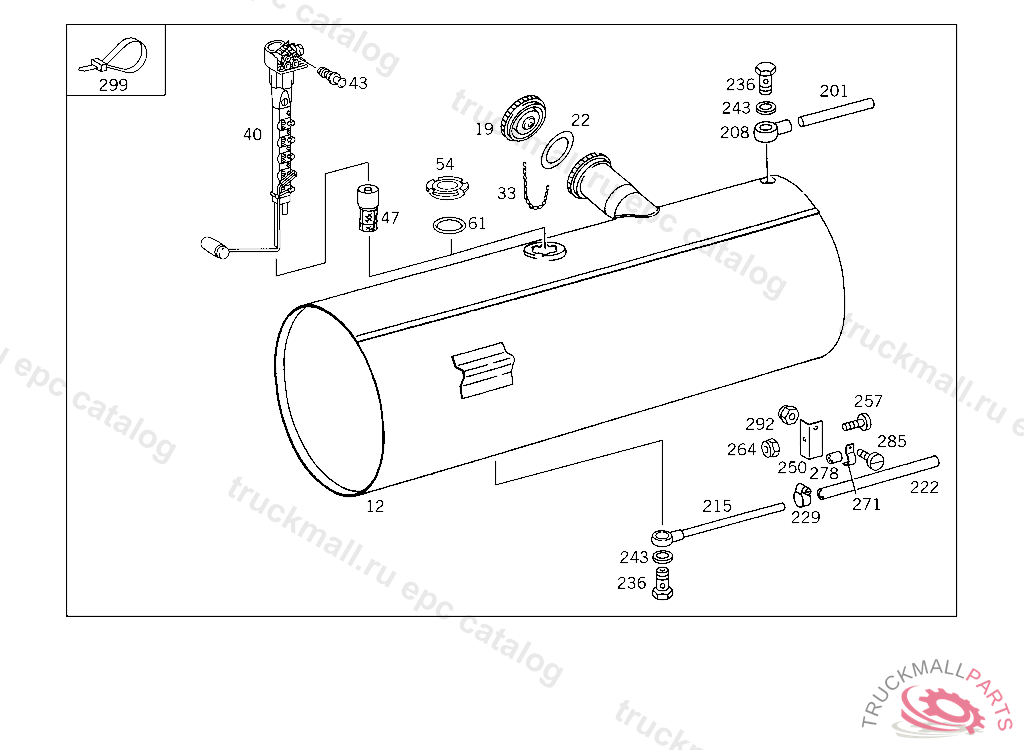

Поз.
Артикул
Описание
12
FUEL TANK200 L
12
FUEL TANK , Replaced By: A3554700101
12
FUEL TANK , Replaced By: A3874701301
19
FILLER CAP , Replaced By: A0004700305
19
FILLER CAP
19
FILLER CAP , Replaced By: A0004700305
19
FILLER CAP , Replaced By: A0004717930
19
FILLER CAP , Replaced By: A0004700305
22
SEAL RING
22
WASHER , Replaced By: A3049970340
33
CHAIN FILLER CAP
40
SENDER UNIT , NOT USED
40
SENDER UNIT FUEL GAUGE
40
SENDER UNIT , Replaced By: A0085428017
43
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
47
FUEL STRAINER FUEL TANK,K 169122
54
FILLER CAP IN PLACE OF FUEL GAUGE SENDER UNIT
61
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
201
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
201
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
208
BANJO UNION , Replaced By: N000000000363
215
LINE FUEL COMPENSATING
215
LINE WITH BANJO UNION
222
HOSE LEAK LINE
229
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
229
CLAMP , Replaced By: N916017011001
236
HOLLOW SCREW HEATING CONNECTION
243
SEAL RING FUEL LINE TO FEED PUMP
250
BRACKET FUEL LINE
257
SCREW HOOK TO BRACKET
257
SCREW , Replaced By: N007985005175
264
NUT TWO-WAY VALVE TO BRACKET
271
CLAMP FUEL LINE TO BRACKET
271
CLAMP , Replaced By: A1109950401
271
CLAMP , Replaced By: A3129952420
278
RUBBER PAD FUEL LINE TO BRACKET
285
SCREW HOOK TO BRACKET
285
SCREW , Replaced By: N007985005175
292
NUT TWO-WAY VALVE TO BRACKET
299
LOOM TIE LINE MOUNTING
999
CROSS MEMBER
999
SCREW CONSOLE TO SIDE MEMBER
999
NUT PLATFORM MOUNTING
