Поз.
Артикул
Описание

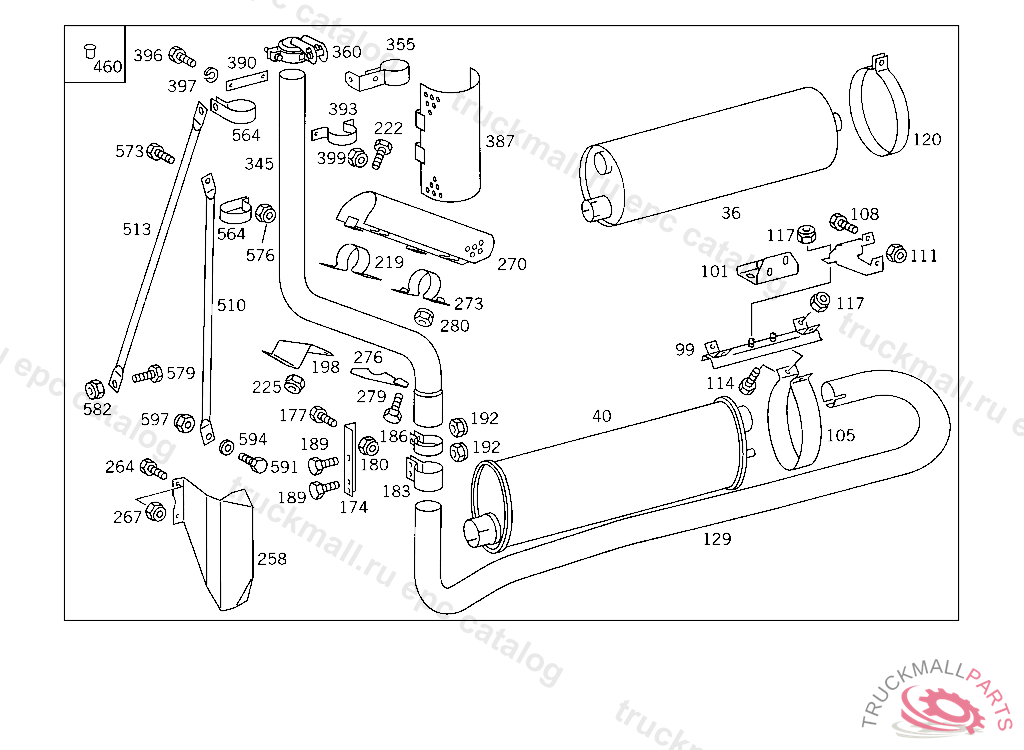

36
EXHAUST MUFFLER
36
EXHAUST MUFFLER
36
EXHAUST MUFFLER (POSTERIOR MUFFLER)
40
EXHAUST MUFFLER
40
EXHAUST MUFFLER
99
SUPPORT EXHAUST MUFFLER TO BRACKET
99
SUPPORT ,5 999999K 000001 - K 006420N 817441 - N 817938, Replaced By: A6734901734, +001A6744904640
101
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. K 139807, Replaced By: A6744924841
101
BRACKET EXHAUST MUFFLER TO BRACKET
105
BRACKET EXHAUST MUFFLER TO SIDE MEMBER,5 543914
105
BRACKET , Replaced By: A6744914541
105
STRAP EXHAUST MUFFLER TO SIDE MEMBER
105
STRAP EXHAUST MUFFLER TO SIDE MEMBER
105
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6524903740
105
BRACKET EXHAUST MUFFLER
108
SCREW , Replaced By: N308676014020
108
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
108
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
108
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
108
SCREW BRACKET TO SIDE MEMBER M 14X55,5 543914
108
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
108
SCREW BRACKET TO SIDE MEMBER M 14X40
108
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
111
NUT , Replaced By: N910113014001
111
NUT BRACKET TO SIDE MEMBER
111
NUT BRACKET TO SIDE MEMBER
111
NUT PARTICLE FILTER M14
111
NUT PARTICLE FILTER M14
114
SCREW BRACKET TO SIDE MEMBER
114
SCREW , Replaced By: N910105010009
114
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
117
NUT , Replaced By: N910113010000
117
NUT STRAP TO BRACKET
117
NUT EXHAUST PIPE TO SIDE MEMBER
120
CLAMP , Replaced By: A6154900041
120
CLAMP BRACKET TO SIDE MEMBER
129
CONNECTOR FROM CONNECTOR TO EXHAUST MUFFLER
129
CONNECTOR FROM CONNECTOR TO EXHAUST MUFFLER
174
BRACKET TAIL PIPE
174
BRACKET TAIL PIPE
174
BRACKET TAIL PIPE
174
BRACKET TAIL PIPE
174
BRACKET TAIL PIPE
177
SCREW , Replaced By: N304017010002
177
SCREW BRACKET TO SIDE MEMBER
177
SCREW EXHAUST PIPE TO SIDE MEMBER
177
SCREW BRACKET TO SIDE MEMBER
180
NUT , Replaced By: N910113010000
180
NUT STRAP TO BRACKET
180
NUT EXHAUST PIPE TO SIDE MEMBER
180
NUT STRAP TO BRACKET
183
CLAMP EXHAUST PIPE TO BRACKET
183
CLAMP EXHAUST PIPE TO BRACKET
186
CLAMP , Replaced By: N071555090502
186
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
186
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
186
CLAMP EXHAUST PIPE
186
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
189
SCREW EXHAUST PIPE TO SIDE MEMBER
189
SCREW , Replaced By: N304017010002
189
SCREW BRACKET TO SIDE MEMBER
189
SCREW EXHAUST PIPE TO BRACKET ON SIDE MEMBER
189
SCREW , Replaced By: N304017012020
189
SCREW END PIECE TO EXHAUST PIPE M 12X30
189
SCREW BRACKET TO SIDE MEMBER
189
SCREW BRACKET TO SIDE MEMBER
189
SCREW BRACKET TO SIDE MEMBER
189
SCREW END PIECE TO EXHAUST PIPE M 12X30
192
NUT EXHAUST PIPE TO SIDE MEMBER
192
NUT , Replaced By: N910113010000
192
NUT STRAP TO BRACKET
192
NUT , Replaced By: N910113012003
192
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
192
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
192
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
192
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
192
NUT STRAP TO BRACKET
198
BRACKET EXHAUST PIPE TO FENDER
198
BRACKET EXHAUST PIPE TO FENDER
219
CLAMP , Replaced By: A4374920440
219
CLAMP HEAT SHIELD TO TAILPIPE
219
CLAMP EXHAUST PIPE TO BRACKET
219
CLAMP HEAT SHIELD TO TAILPIPE
219
CLAMP HEAT SHIELD TO TAILPIPE
219
CLAMP HEAT SHIELD TO TAILPIPE
222
SCREW , Replaced By: N910142008009
222
SCREW CLAMP TO BRACKET,5 597426
222
SCREW , Replaced By: N304017008034
222
SCREW BRACKET TO CROSS CONNECTION STRUT
222
SCREW BRACKET TO CROSS CONNECTION STRUT
222
SCREW , Replaced By: N304017008021
222
SCREW PIPE CLAMP
222
SCREW BRACKET TO CROSS CONNECTION STRUT
222
SCREW PIPE CLAMP
222
SCREW BRACKET TO CROSS CONNECTION STRUT
225
NUT BRACKET TO BRACKET
225
NUT , Replaced By: N913004008001
225
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
225
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
225
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
225
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
225
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
225
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
258
PROTECTIVE PLATE (HEAT SHIELD)
258
PROTECTIVE PLATE (HEAT SHIELD) 510 MM
258
PROTECTIVE PLATE FUEL TANK
258
PROTECTIVE PLATE (HEAT SHIELD)
258
PROTECTIVE PLATE (HEAT SHIELD)
258
PROTECTIVE PLATE (HEAT SHIELD)
258
PROTECTIVE PLATE (HEAT SHIELD)
264
SCREW EXHAUST PIPE TO SIDE MEMBER
264
SCREW EXHAUST PIPE TO SIDE MEMBER
264
SCREW , Replaced By: N304017010002
264
SCREW BRACKET TO SIDE MEMBER
264
SCREW BRACKET TO SIDE MEMBER
264
SCREW BRACKET TO SIDE MEMBER
267
NUT EXHAUST PIPE TO SIDE MEMBER
267
NUT EXHAUST PIPE TO SIDE MEMBER
267
NUT , Replaced By: N910113010000
267
NUT STRAP TO BRACKET
267
NUT STRAP TO BRACKET
267
NUT STRAP TO BRACKET
270
PROTECTIVE PLATE (HEAT SHIELD)
270
PROTECTIVE PLATE (HEAT SHIELD)
270
PROTECTIVE PLATE (HEAT SHIELD)
270
PROTECTIVE PLATE (HEAT SHIELD)
270
PROTECTIVE PLATE (HEAT SHIELD)
273
CLAMP , Replaced By: A3434920340
273
CLAMP , Replaced By: A4374920440
273
CLAMP HEAT SHIELD TO TAILPIPE
273
CLAMP HEAT SHIELD TO TAILPIPE
273
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
273
CLAMP HEAT SHIELD TO TAILPIPE
273
CLAMP HEAT SHIELD TO TAILPIPE
273
CLAMP HEAT SHIELD TO TAILPIPE
273
CLAMP HEAT SHIELD TO TAILPIPE
276
BASE PLATE HEAT SHIELD TO TAILPIPE
276
BASE PLATE HEAT SHIELD TO TAILPIPE
279
SCREW , Replaced By: N910142008009
279
SCREW CLAMP TO BRACKET,5 597426
279
SCREW , Replaced By: N304017008034
279
SCREW BRACKET TO CROSS CONNECTION STRUT
279
SCREW , Replaced By: N304017010002
279
SCREW BRACKET TO SIDE MEMBER
279
SCREW , Replaced By: N910142008001
279
SCREW , Replaced By: N910143008002
279
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
280
NUT , Replaced By: N910113010000
280
NUT STRAP TO BRACKET
345
END PIECE BEHIND CAB,UPWARD
345
END PIECE
345
END PIECE BEHIND CAB,UPWARD
345
END PIECE BEHIND CAB,UPWARD
355
BRACKET TAIL PIPE
360
FLAP (RAIN DEFLECTOR)
360
FLAP (RAIN DEFLECTOR)
387
PROTECTIVE PLATE (HEAT SHIELD) 1380 MM
387
PROTECTIVE PLATE (HEAT SHIELD) 1380 MM
387
PROTECTIVE PLATE (HEAT SHIELD)
387
PROTECTIVE PLATE (HEAT SHIELD)
387
PROTECTIVE PLATE (HEAT SHIELD) 1380 MM
387
PROTECTIVE PLATE (HEAT SHIELD)
390
BASE PLATE HEAT SHIELD TO TAILPIPE
393
CLAMP , Replaced By: A4374920440
393
CLAMP HEAT SHIELD TO TAILPIPE
396
SCREW , Replaced By: N910142008009
396
SCREW CLAMP TO BRACKET,5 597426
396
SCREW , Replaced By: N304017008021
396
SCREW PIPE CLAMP
396
SCREW , Replaced By: N304017008034
396
SCREW BRACKET TO CROSS CONNECTION STRUT
396
SCREW , Replaced By: N304017008027
396
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
397
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
399
NUT , Replaced By: N913004008001
399
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
399
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
460
RIVET FRAME TRUSS TO SIDE MEMBER
460
RIVET FRAME TRUSS TO SIDE MEMBER
510
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
513
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
513
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
513
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
513
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
513
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
564
CLAMP EXHAUST PIPE TO BRACKET
564
CLAMP EXHAUST PIPE TO BRACKET
564
CLAMP , Replaced By: A6454921140
564
CLAMP , Replaced By: N071555090501
564
CLAMP , Replaced By: N071555090502
573
SCREW EXHAUST PIPE TO SIDE MEMBER
573
SCREW EXHAUST PIPE TO SIDE MEMBER
573
SCREW END PIECE TO EXHAUST PIPE M 10X25
573
SCREW END PIECE TO EXHAUST PIPE M 10X25
573
SCREW BRACKET TO CROSS CONNECTION STRUT
573
SCREW END PIECE TO EXHAUST PIPE M 10X25
573
SCREW END PIECE TO EXHAUST PIPE M 10X25
573
SCREW END PIECE TO EXHAUST PIPE M 10X25
573
SCREW BRACKET TO CROSS CONNECTION STRUT
573
SCREW , Replaced By: N304017008034
