1928A/K,1935 A,1936 A 2228 A,2528 A,2535 A
621.215
49 EXHAUST SYSTEM

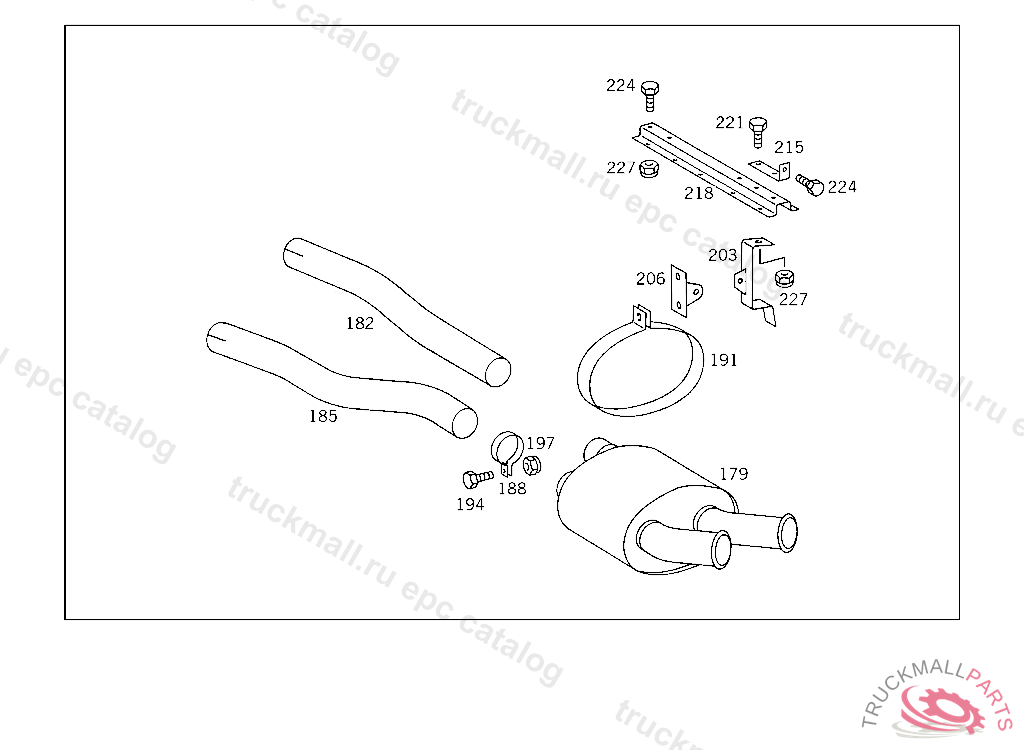

001 TWIN FLUX EXHAUST SYSTEM,HORIZONTAL,UNDERFRAME IL.3

1928A/K,1935 A,1936 A 2228 A,2528 A,2535 A - 621.215 - 49 EXHAUST SYSTEM

Поз.
Артикул
Описание
179
A6454902201
EXHAUST MUFFLER (POSTERIOR MUFFLER)
179
A6994901801
EXHAUST MUFFLER , Replaced By: A6454902201
179
A6454902201
EXHAUST MUFFLER (POSTERIOR MUFFLER)
182
A6994924114
END PIECE EXHAUST MUFFLER,RIGHT
182
A6994926414
END PIECE EXHAUST MUFFLER,RIGHT
185
A6994929507
CONNECTOR EXHAUST MUFFLER,RIGHT
188
N071555090501
CLAMP , Replaced By: N071555090502
188
N071555090502
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
188
N071555094501
CLAMP , Replaced By: N071555094502
188
N071555094502
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
191
A6454910040
CLAMP REAR MUFFLER ON FIXTURE
194
A6454910040
CLAMP REAR MUFFLER ON FIXTURE
197
N913004010008
NUT , Replaced By: N910113010000
197
N910113010000
NUT STRAP TO BRACKET
203
A6994905340
BRACKET TAIL PIPE TO APPARATUS SUPPORT
206
A6994906340
BRACKET TAIL PIPE TO APPARATUS SUPPORT
215
A6995410825
ANGLE AIR RESERVOIR
218
A6994302039
SUPPORT ROCKER PANEL
221
N000961012106
SCREW BRACKET TO FRAME M 12X35
224
N000961012025
SCREW SUPPORT TO SIDE MEMBER
227
N913004012009
NUT , Replaced By: N910113012003
227
N910113012003
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
227
N910113012003
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
999
A6994902930
PROTECTIVE PLATE RIGHT
999
A6994916041
BRACKET EXHAUST MUFFLER,LEFT FRONT
999
A6994916141
BRACKET EXHAUST MUFFLER,LEFT REAR
999
A6994921918
BASE PLATE LEFT EXHAUST PIPE
999
A6994922646
BRACKET FRONT EXHAUST PIPE,RIGHT
999
N000961014050
SCREW , Replaced By: N308676014020
999
N308676014020
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
