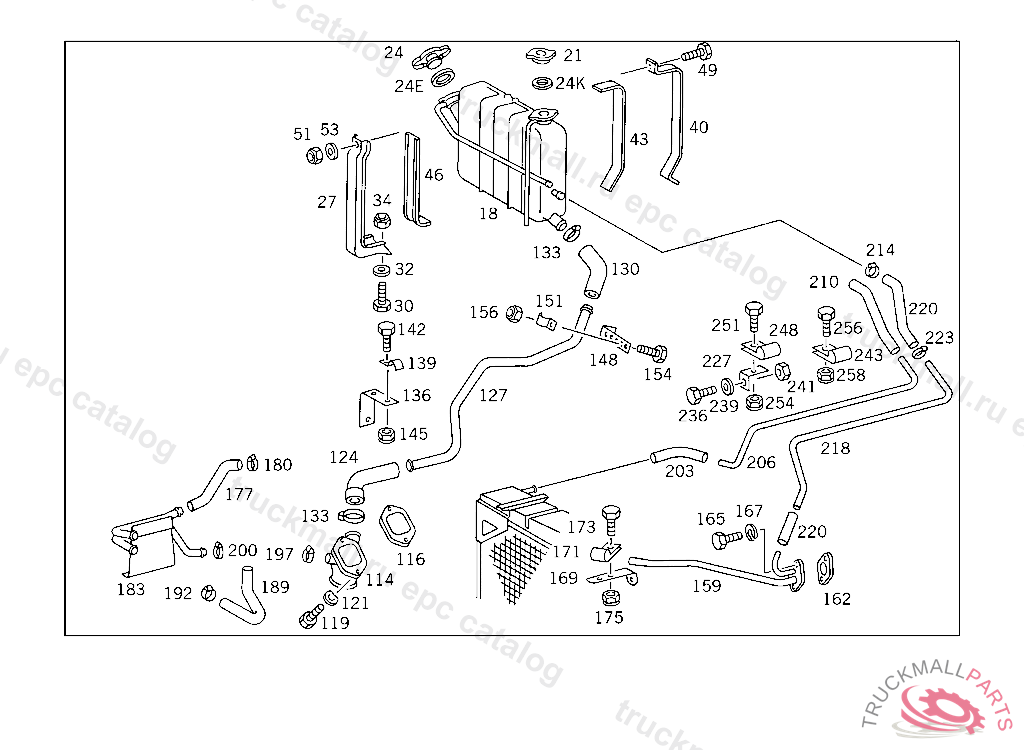

Поз.
Артикул
Описание
21
RADIATOR CAP
116
GASKET CONNECTOR
116
GASKET CONNECTOR, Replaced By: A0002011180
116
GASKET CONNECTOR, Replaced By: A0002011280
116
GASKET , Replaced By: A4422010480
116
GASKET CONNECTOR, Replaced By: A0002011080
119
SCREW END PIECE TO EXHAUST PIPE M 10X25
121
SPRING WASHER STEERING COLUMN BRACKET TO CAB
133
CLAMP , Replaced By: N000000000670
133
CLAMP
162
GASKET. SEAL DE-AERATION PIPE TO ENGINE
165
SCREW END PIECE TO EXHAUST PIPE M 10X25
167
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
169
BRACKET ENGINE CABLE HARNESS PLUG-CONNECTION,5 452356
171
CLAMP FEED LINE TO THERMOSTAT
173
SCREW COVER PLATE TO BRACKET
175
NUT PUMP TO BRACKET
175
NUT , Replaced By: N913004006001
180
CLAMP , Replaced By: N000000000667
180
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
189
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
192
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
192
CLAMP , Replaced By: N000000000667
214
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
223
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
223
CLAMP , Replaced By: N000000000667
256
SCREW , Replaced By: N304017006016
256
SCREW PUMP TO BRACKET
999
RADIATOR WATER,5 337827
999
DRAIN PIPE EXPANSION TANK
999
GASKET O.D., 52 MM
999
GASKET O.D., 37 MM
999
RADIATOR CAP CENTRAL
999
RADIATOR CAP FILLER NECK
999
RADIATOR CAP CENTRAL
999
RADIATOR CAP FILLER NECK
999
RADIATOR , Replaced By: A0015010201
999
CLAMP , Replaced By: N916017011000
999
RADIATOR , Replaced By: A0005001103
999
SCREW PLUG , Replaced By: N007604014101
999
HOSE , Replaced By: A0219977682
999
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
HOSE OVERFLOW, EXPANSION TANK
999
HOSE
999
BRACKET HEATING PIPE TO FAN SHROUD BRACKET
999
BRACKET EXPANSION TANK,RIGHT
999
SHIM EXPANSION TANK,RIGHT
999
STRAP EXPANSION TANK,RIGHT
999
HOSE FROM RADIATOR TO THERMOSTAT
999
BRACKET EXPANSION TANK
999
BRACKET OIL DIPSTICK TO RADIATOR
999
FLANGE FROM ENGINE TO EXPANSION TANK
999
LINE HEATING AND BREATHING
999
LINE HEATING PIPE
999
SHIM EXPANSION TANK TO BRACKET
999
STRAP EXPANSION TANK TO BRACKET
999
FLANGE , Replaced By: A6205060261
999
FLANGE
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR,5 301948
999
HOSE FROM VALVE TO FEED LINE,K 004003
999
BRACKET HEATING PIPE
999
HOSE HEATING PIPE TO RADIATOR
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW , Replaced By: N000933008337
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW , Replaced By: N304017008018
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: A0099900101
999
SEAL RING FUEL LINE TO FEED PUMP
999
SCREW PLUG WATER DRAIN
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW SUPPORT TO FENDER
999
NUT STRAP TO BRACKET
999
NUT STRAP TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT , Replaced By: N913004006001
999
NUT , Replaced By: N910113010000
999
CLAMP , Replaced By: N916017011001
999
GASKET HEATING PIPE TO ENGINE
