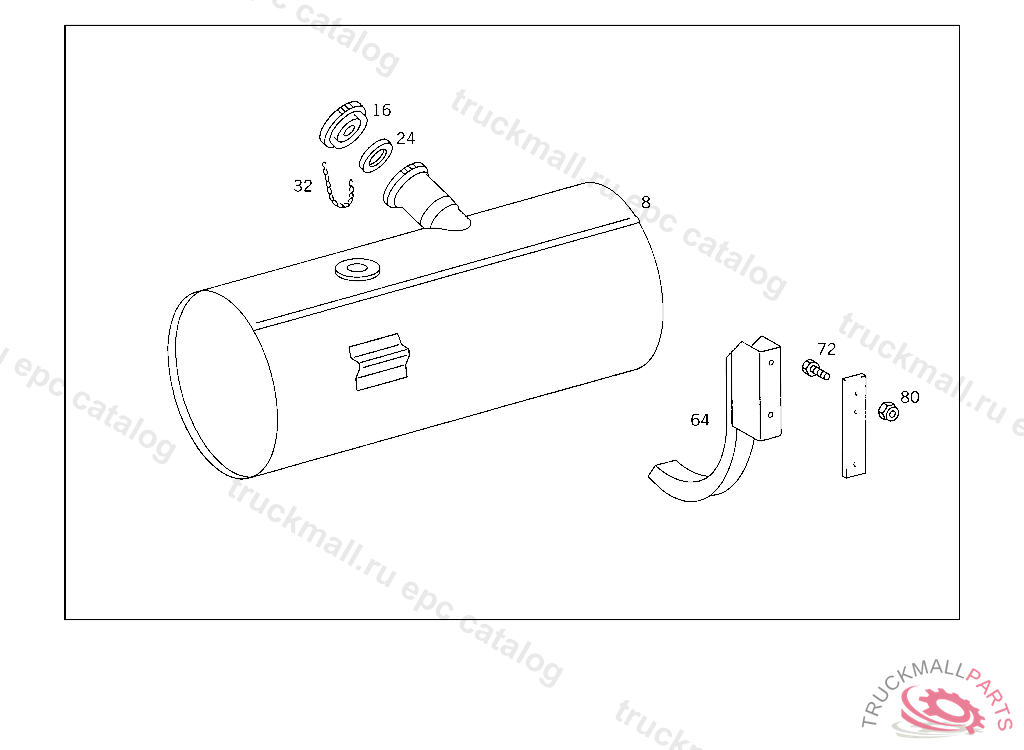

1935 AK,1936 A/AK,1945 A/AF/F,2436,2536/A,AK,K - 621.327 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
8
FUEL TANK , Replaced By: A3554700101
8
FUEL TANK200 L
16
FILLER CAP , Replaced By: A0004700305
16
FILLER CAP , Replaced By: A0004700305
16
FILLER CAP
16
FILLER CAP , Replaced By: A0004700305
24
SEAL RING
32
CHAIN FILLER CAP
64
SUPPORT FUEL TANK
72
SCREW , Replaced By: N308676014014
72
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET M 14X1.5X70
80
NUT , Replaced By: N910113014001
80
NUT BRACKET TO SIDE MEMBER
999
BRACKET AT FRAME
999
BASE SUPPORT TO SIDE MEMBER
