Поз.
Артикул
Описание
5

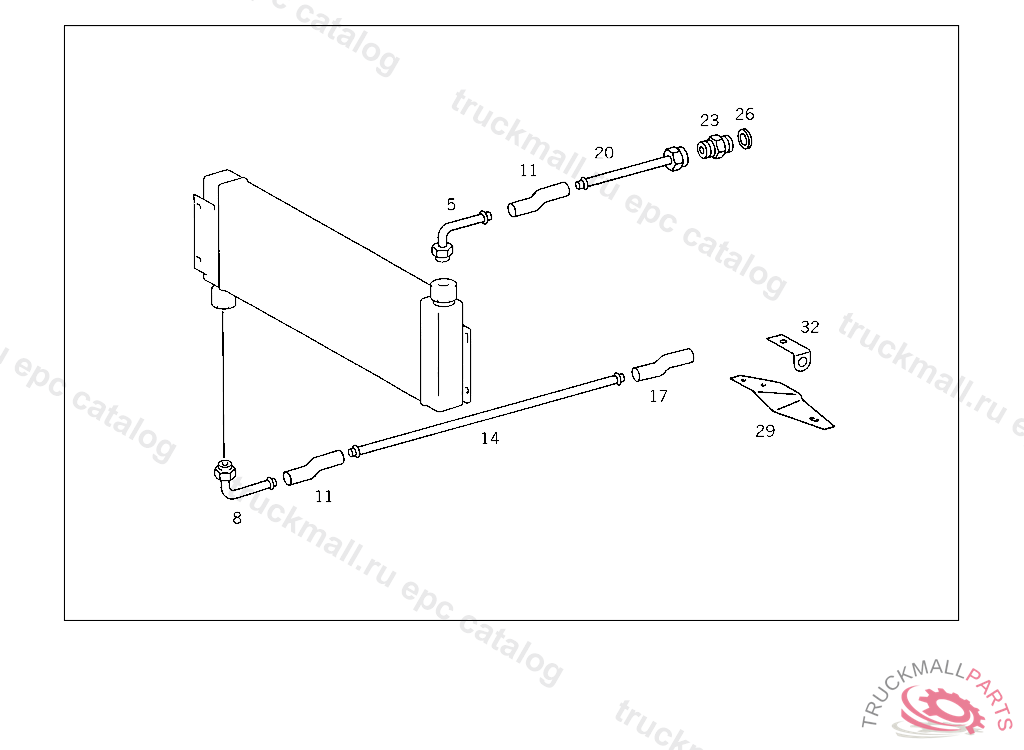

OIL PIPE FROM OIL COOLER TO FEED HOSE CONNECTION
8
OIL PIPE FROM OIL COOLER TO RETURN HOSE CONNECTION
11
HOSE FROM OIL COOLER TO TRANSMISSION
14
LINE TRANSMISSION
14
LINE , Replaced By: A0805009672
17
HOSE FROM OIL COOLER TO TRANSMISSION
17
HOSE FROM OIL COOLER TO FITTING, RETURN
20
OIL PIPE FEED, FROM TRANSMISSION TO HOSE
20
OIL PIPE RETURN, FROM HOSE TO TRANSMISSION
23
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
26
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
29
BRACKET OIL LINE TO RADIATOR
32
BRACKET OIL LINE TO ENGINE, TO BE ADAPTED DURING ASSEMBLY
32
BRACKET , Replaced By: A6202571140
999
HOSE (OIL LINE),FROM AIR COOLED OIL COOLER TO SLEEVE VALVE
