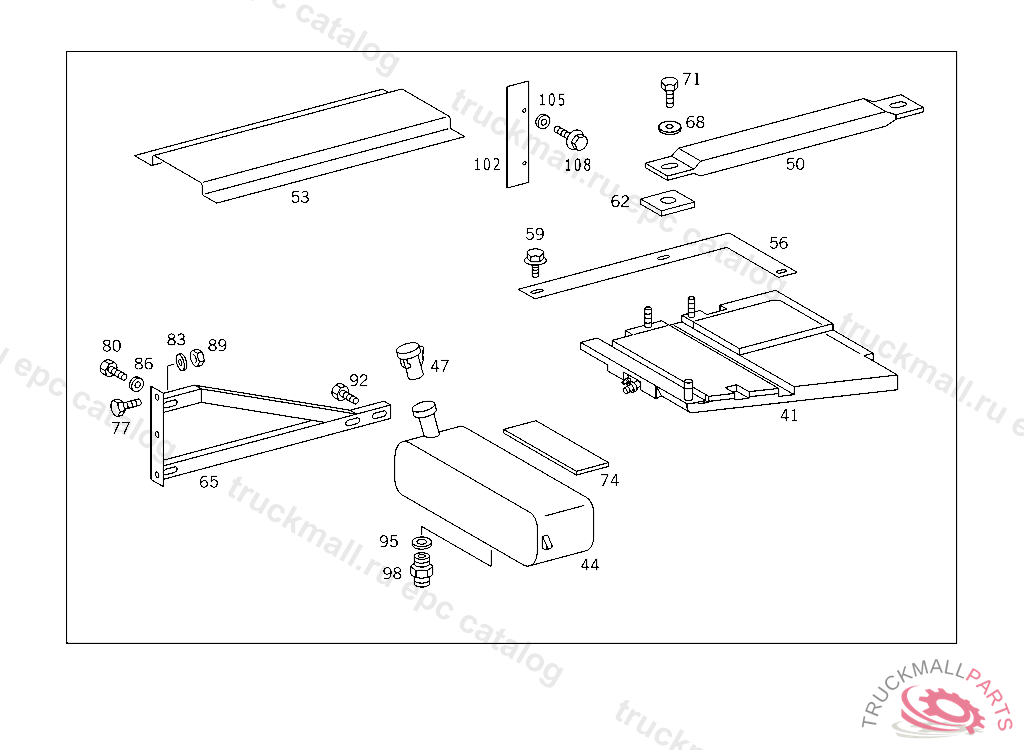

O 530 N3 LANG EURO 3 - 628.143 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
41
FUEL TANK55 L
41
FUEL TANK55L
50
SUPPORT
53
PROTECTIVE PLATE
56
PROTECTIVE PLATE
59
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
62
THRUST PLATE
68
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
71
SCREW BRACKET TO FRAME
102
COVERING , NOT USED
105
WASHER BRACKET TO COVERING
108
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
999
FILTER ELEMENT
999
FILTER ELEMENT
999
GASKET23X15X3
999
GASKET14X22
999
GASKET22X18X1,5
999
SEAL F FILLER NECK. GASKET
999
SEAL RING
