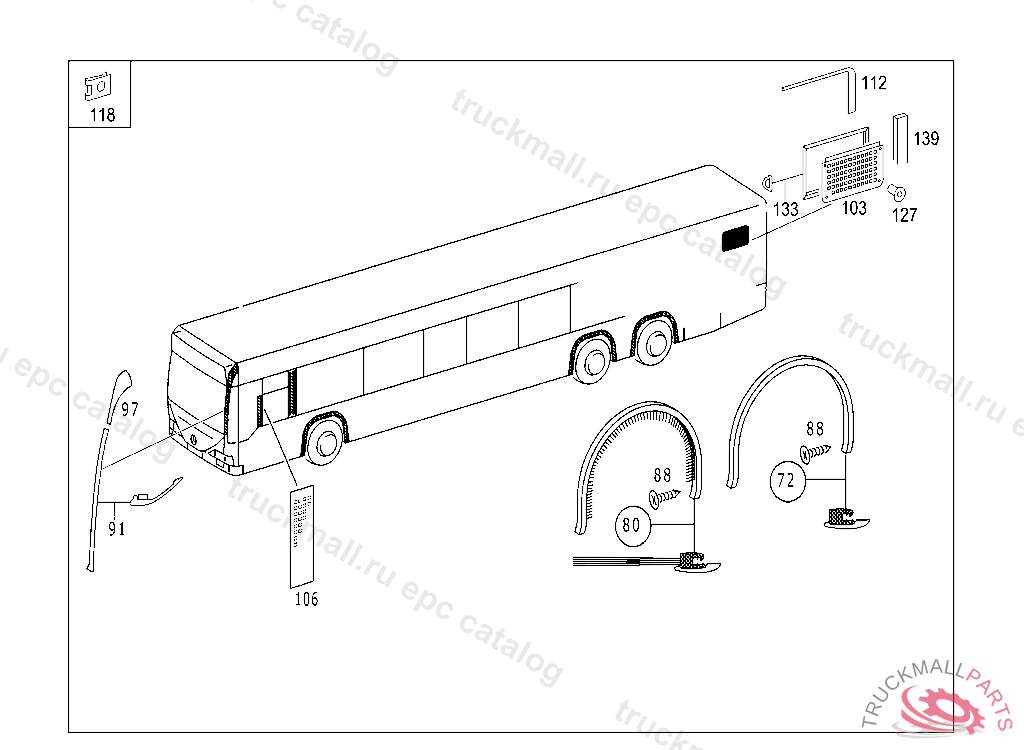

O 530 N3 LANG EURO 3 - 628.143 - 69 COVERING AND LINING
Поз.
Артикул
Описание
72
EDGE GUARD SECTION WITHOUT BRUSH
80
EDGE GUARD SECTION WITH BRUSH
88
SHEET METAL SCREW BRACKET TO FIRE WALL
91
PANELLING A-PILLAR,LEFT
91
PANELLING A-PILLAR,RIGHT
97
COVERING TOP RIGHT
97
COVERING TOP RIGHT
97
COVERING TOP LEFT
97
COVERING TOP LEFT
103
GRILLE ENGINE AIR INTAKE
103
GRILLE ENGINE AIR INTAKE
106
SCREEN VENTILATION DRIVER'S WINDOW
112
COVERING VENTILATION GRILLE TO BODY
118
LOCK FUEL LINE
127
RIVETED NUT LINE MOUNTING M 6X60
133
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
139
ADHESIVE TAPE4.5X10 MM, ORDER BY THE METER
