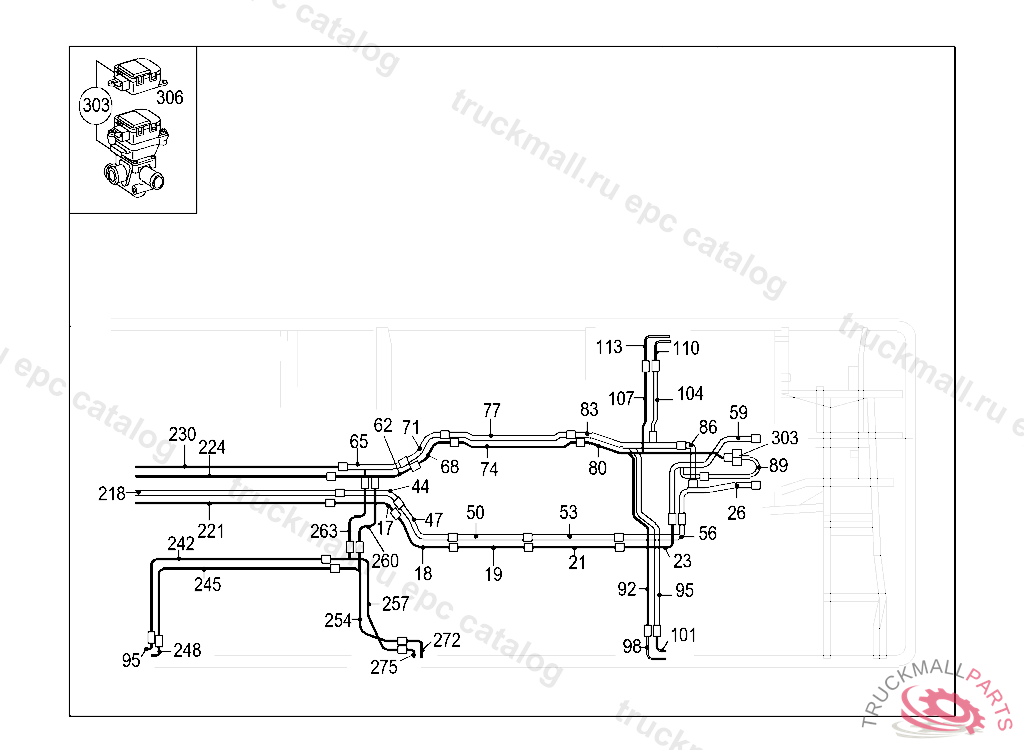

O 530 N3 LANG EURO 3 - 628.143 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
17
PIPE LINE
18
PIPE LINE
19
PIPE LINE FEED 1310 MM
21
PIPE LINE FEED & RETURN
23
PIPE LINE
26
PIPE LINE RETURN
44
PIPE LINE
44
PIPE LINE RETURN 1450 MM
47
PIPE LINE
50
PIPE LINE RETURN 1450 MM
53
PIPE LINE FEED & RETURN
56
PIPE LINE
59
PIPE LINE FEED
62
PIPE LINE580 MM
65
PIPE LINE
68
PIPE LINE
71
PIPE LINE
74
PIPE LINE
77
PIPE LINE
80
PIPE LINE
83
PIPE LINE
83
PIPE LINE1160 MM
83
PIPE LINE160 MM
86
PIPE LINE
89
PIPE LINE
92
PIPE LINE1660 MM
95
PIPE LINE1640 MM
98
PIPE LINE
101
PIPE LINE
104
PIPE LINE1120 MM
107
PIPE LINE
110
PIPE LINE
113
PIPE LINE
218
PIPE LINE5440 MM
221
PIPE LINE5450 MM
224
PIPE LINE
230
PIPE LINE
242
PIPE LINE
245
PIPE LINE
248
PIPE LINE
248
PIPE LINE
254
PIPE LINE FEED 1255 MM
257
PIPE LINE REVERSE SPEED 1300 MM
260
HEATER PIPEL475MM
263
HEATER PIPEL530MM
303
VALVE 2/2 -WAY VALVE
303
VALVE THREE-WAY VALVE
303
VALVE , Replaced By: A0038305784
303
VALVE , Replaced By: A0038305684
303
VALVE 2/2 -WAY VALVE, Replaced By: A0048301884
303
VALVE THREE-WAY VALVE, Replaced By: A0048301684
306
ELECTRIC MOTOR , Replaced By: A0068207842
306
SERVO-D.C. W.GEARBOX
999
PIPE LINE
999
PIPE LINE
