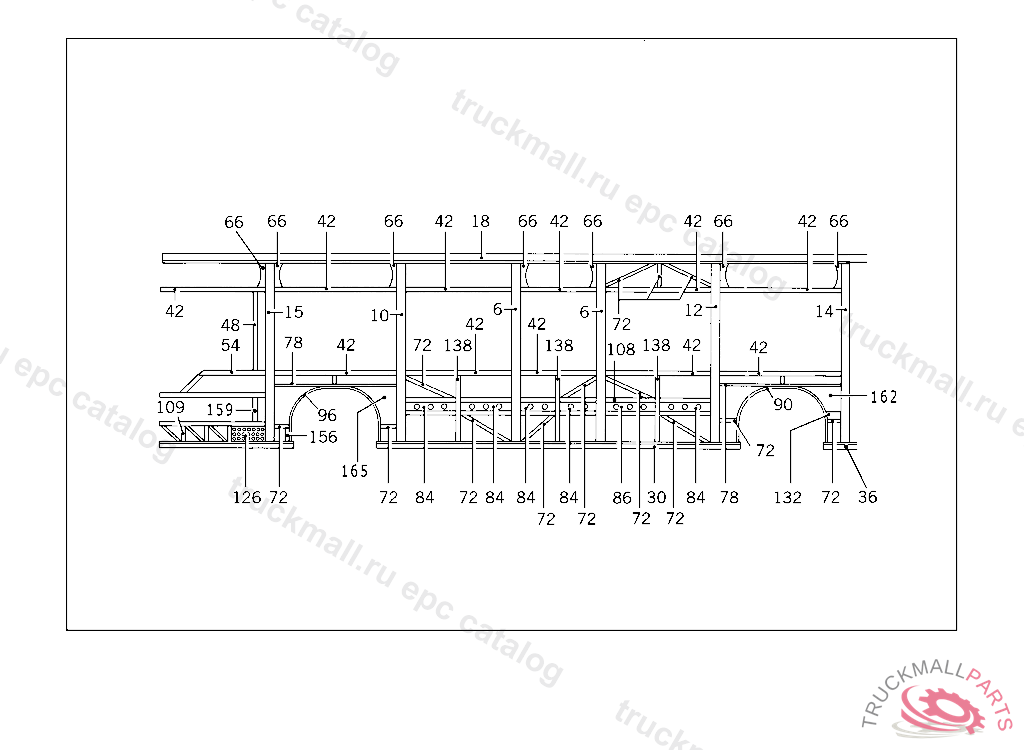

Поз.
Артикул
Описание
6
PILLAR PART
10
PILLARNO. 2
12
PILLAR
14
PILLAR
15
PILLARNO. 1
18
SUPPORT TOP
30
SUPPORT BOTTOM
36
SUPPORT BOTTOM
42
BEAM. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
48
PILLAR PART DRIVER'S WINDOW
54
SUPPORT , Replaced By: A6286304640
54
SUPPORT DRIVER'S WINDOW
66
REINFORCEMENT TOP
72
RECTANGULAR TUBE. CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY
78
RECTANGULAR TUBE , A 628 632 18 40 RECTANGULAR TUBE 40 X 20 X 2 X 1590 MM TO BE ADAPTED DURING ASSEMBLY
84
PART NAME MISSING. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
90
WHEEL BOW
96
WHEEL BOW FRONT WHEEL BOW
109
SUPPORT
126
PLATE
132
REINFORCEMENT
138
PILLAR PART
156
PILLAR PART , TO BE ADAPTED DURING ASSEMBLY
159
CONSOLE
162
PANELLING
165
PANELLING
