Поз.
Артикул
Описание
3

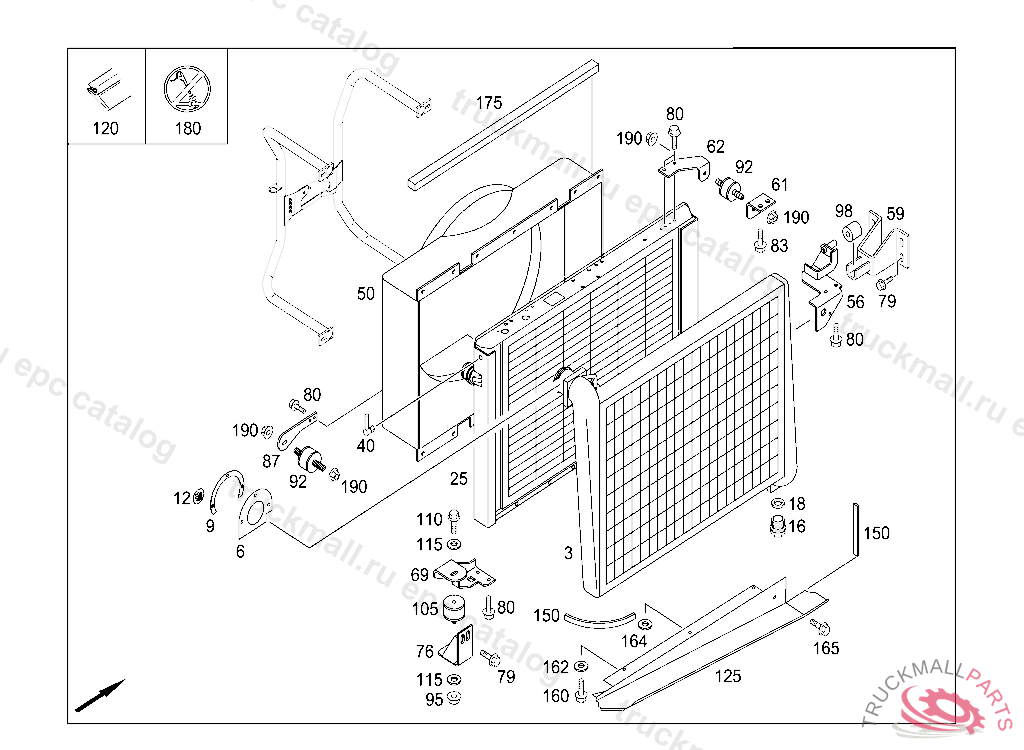

RADIATOR CHARGE AIR COOLER, AIR-COOLED, AS OF PRODUCTION BREAKPOINT DATE 23.03.07
3
RADIATOR
6
GASKET
9
COVERING
12
CLAMPING DISC30X23X3,5X0,4MM
16
SCREW PLUG
18
SEAL RINGTO 001 431 72 14
25
25
RADIATOR
40
SCREW BLEEDER SCREW
50
FAN SHROUD
50
FAN SHROUD
56
SUPPORTING PLATE
59
61
BRACKET
62
CONSOLE
69
BRACKET
76
SUPPORTING PLATE
79
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
80
SCREWM 10X20
83
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
87
CONSOLE
92
RUBBER BUFFER RADIATOR MOUNTING,TOP M10X50X30
95
NUT. HEXAGON NUT STRAP TO CONSOLE M12X1.5
98
RUBBER BUSHING EXPANSION TANK D50X45MM
105
RUBBER MOUNTM12X70X45
110
HEXAGON HEAD BOLT FILTER HOUSING TO BRACKET M12X20
115
WASHER BATTERY CASE TO SIDE MEMBER
120
RUBBER PROFILE BLACK, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
125
RADIATOR SHUTTER DIFFUSER LENS
150
MOSS TYPE RUBBER SELF-ADHESIVE ON ONE SIDE 3X22MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
160
SCREW PIPE ELBOW TO BRACKET M8X12
162
WASHER
164
WASHER P.T.O. TO TRANSMISSION
165
SCREW , Replaced By: N910143008000
175
SEAL SELF-ADHESIVE ON ONE SIDE 40X30MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
180
PLATE HIGH PRESSURE CLEANER
190
NUT , Replaced By: N913023010002
