Mercedes
VAN
VITO 108 CDI, 110 CDI 112 CDI, 113, 114
638.094 FROM IDENT-NR. 246706
50 RADIATOR

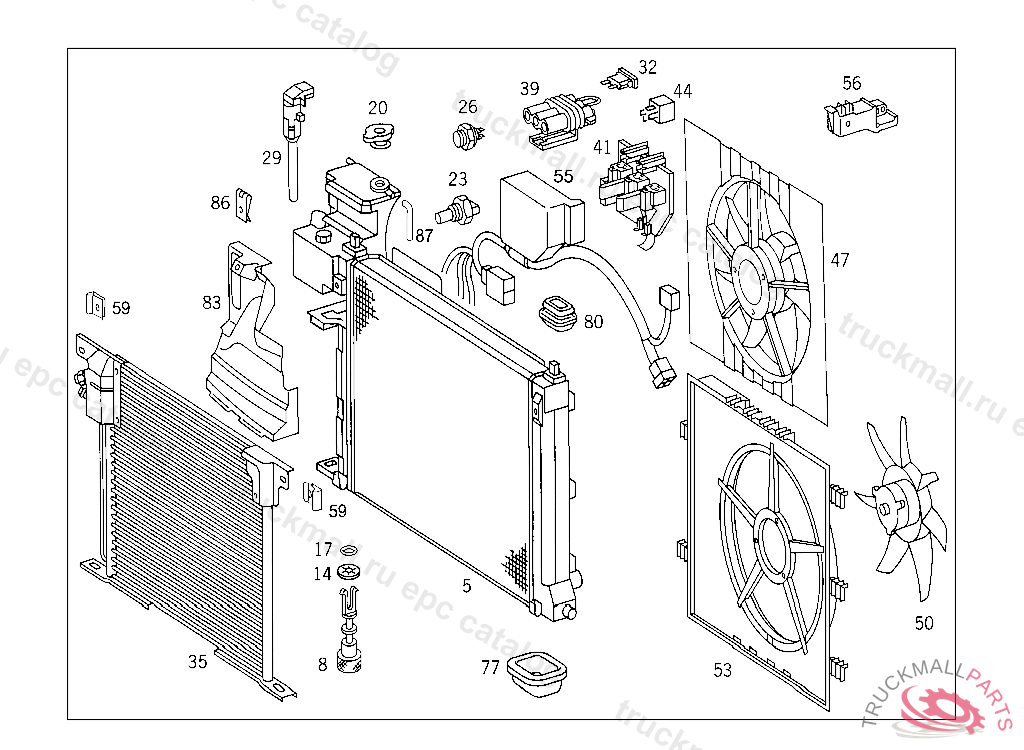

120 RADIATOR AND COOLING WATER LINES IL. 1

Mercedes A0005401109 - ЖГУТ ЭЛЕКТРОПРОВОДКИ

VITO 108 CDI, 110 CDI 112 CDI, 113, 114 638.094 FROM IDENT-NR. 246706

50 RADIATOR - 120 RADIATOR AND COOLING WATER LINES IL. 1

Поз.
Артикул
Описание
5
A6385013001
5
A6385012801
5
A6385013501
5
A6385012701
5
A6385011601
RADIATOR LESS COVER
5
A6385013301
5
A6385013401
5
A6385012201
RADIATOR
8
A0005000185
SCREW WATER DRAIN
14
A0005010176
WASHER WATER DRAIN
17
A0039974548
SEAL RING5X2 MM, 415 5 014668 416 5 000515 417 4 972023
20
A1245000406
CLOSING COVER RADIATOR
23
A0015403045
SWITCH STEP SWITCH 95-105 GRAD
23
A0015403145
SWITCH OVERHEATING 115 GRAD
26
A0025457934
SWITCH OVERHEATING THERMOSTAT 110 GRAD
29
A1295450224
SWITCH,AUTOMATIC EXPANSION TANK, A 328810 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 328811 WITH CODE 806
29
A6385450224
SWITCH,AUTOMATIC COOLING WATER LEVEL SENDER UNIT, ELECTRICAL CONNECTION WITH CONTACT PINS
32
N000000000698
FUSE LINK60A (MAXI), Replaced By: N000000004217
32
N000000004215
FUSE LINKE-40
32
N000000000696
FUSE LINK40 A (MAXI)
35
A6388350170
CONDENSER
41
A0005000306
FILLER CAP
44
A0045451305
RELAY70 A
44
A0045451205
RELAY30 A
47
A6385002193
47
A6385002293
47
A6385002093
47
A6385001993
50
A6385001193
BLOWER
50
A6385001093
BLOWER
53
A0005051455
FAN SHROUD FOR ELECTRICAL LINE WITH WIRE FILAMENT RESISTANCE TO 000 540 08 09,09 09
53
A0005051055
FAN SHROUD FOR ELECTRICAL LINE WITH CERAMIC RESISTANCE
53
A0005050955
FAN SHROUD FOR ELECTRICAL LINE WITHOUT RESISTANCE
55
A0005401109
55
A0005400609
55
A0005401009
55
A0005400509
56
A6388321013
BRACKET USED WITH AIR CONDITIONER
59
A6385040035
CLIP CONDENSER TO CHARGE AIR INTERCOOLER
77
A6385040212
RUBBER MOUNTING RADIATOR BOTTOM
80
A6385040112
RUBBER MOUNTING ON RADIATOR,TOP
83
A6385050488
COVERING RIGHT
86
A6389941145
LOCK MOUNTING BUMPER
87
A0219977682
HOSE
