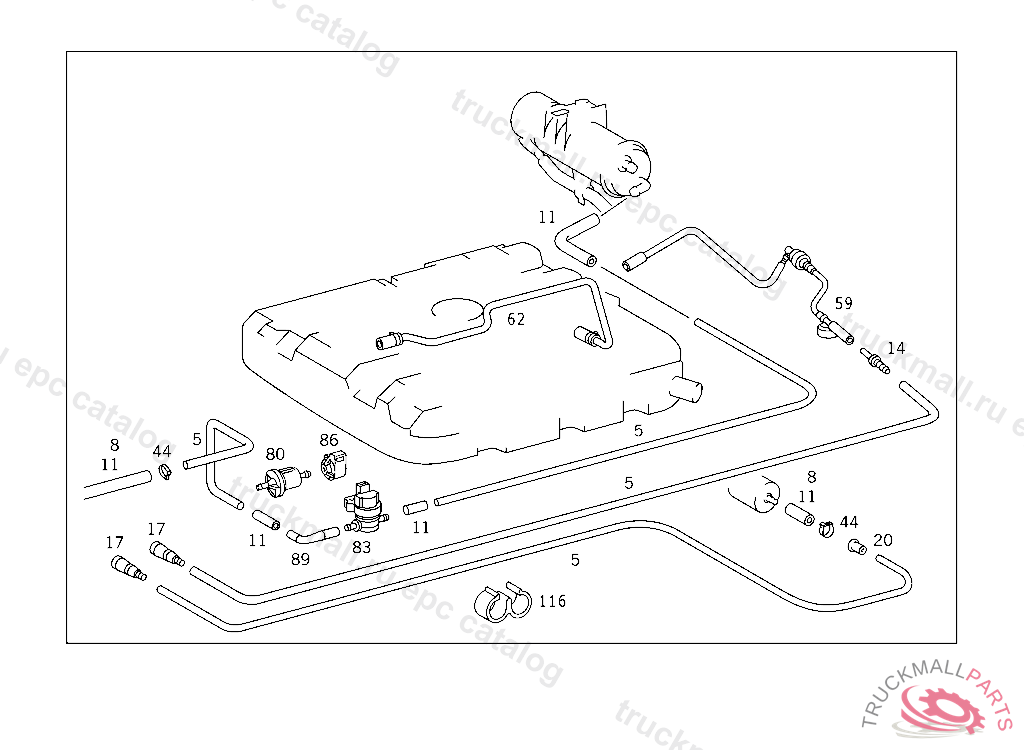

V 200 CDI, V 220 CDI, V 200, V 230, V 280 - 638.294 FROM IDENT-NR. 246706 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
5
PLASTIC PIPE AERATION, ORDER BY THE METER
8
HOSE FROM FEED LINE TO FILTER 240 MM
11
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
11
HOSE FROM FEED LINE TO FILTER 240 MM
14
CONNECTOR , Replaced By: A0019979468
17
CONNECTOR FEED LINE TO ENGINE
17
CONNECTOR RETURN LINE
20
SLEEVE LINE CONNECTION
44
HOSE CLAMP HOSE ATTACHMENT
59
62
80
83
REGENERATION VALVE , Replaced By: A0004703593
86
89
HOSE FROM REGENERATION LINE TO ENGINE
89
116
