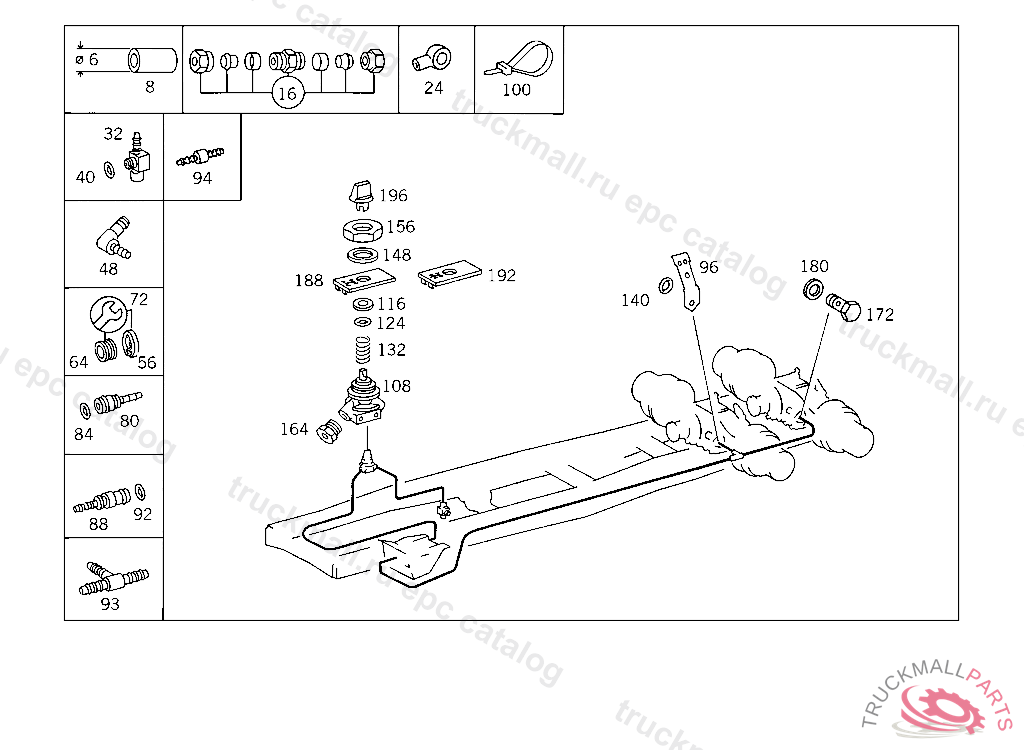

Поз.
Артикул
Описание
8
PLASTIC PIPE RISING PIPE 4X6 MM
8
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
16
FITTING (PARTS KIT),LINE RUPTURE
24
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
24
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
32
CONNECTOR DISTRIBUTOR TO CAB
40
SEAL RING
48
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
56
SEAL RING , Replaced By: A0009940747
56
LOCK RING LINE CONNECTION
64
LOCK , Replaced By: A0009945448
64
LOCK LINE CONNECTION
72
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
72
REPAIR KIT , Replaced By: A0309971748
80
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
84
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
88
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
92
SEAL RING
93
DISTRIBUTOR HOSE WIDTH, 6 MM
94
CONNECTOR
96
BRACKET LINE MOUNTING
100
LOOM TIE LINE MOUNTING 280 MM
108
VALVE LONGITUDINAL DIFFERENTIAL LOCK CONTROL WABCO
108
VALVE LONGITUDINAL DIFFERENTIAL LOCK CONTROL BOSCH
116
SEAL RING TOP WABCO
124
SEAL RING INSIDE WABCO
132
SPRING INSIDE WABCO
140
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
148
WASHER 3/2-WAY VALVE TO BRACKET
156
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
164
SCREW. UNION SCREW LINE CONNECTION
164
SCREW. UNION SCREW , Replaced By: A0009973734
172
HOLLOW SCREW HEATING CONNECTION
180
SEAL RING LINE CONNECTION
188
GUIDE SIGN TRANSVERSE DIFFERENTIAL LOCK
188
GUIDE SIGN TRANSVERSE DIFFERENTIAL LOCK
192
GUIDE SIGN TRANSVERSE DIFFERENTIAL LOCK
196
HANDLE 3/2-WAY VALVE TO BRACKET
999
COVERING IN PLACE OF SWITCH 82X44,5 MM
