Поз.
Артикул
Описание

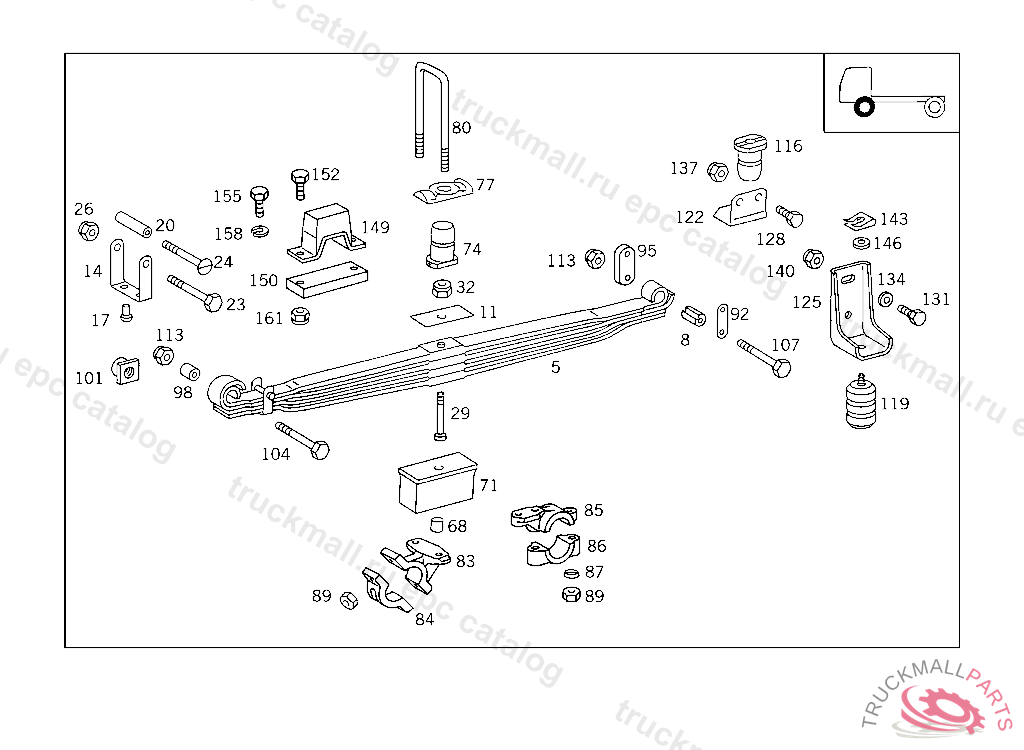

5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "3"
8
RUBBER MOUNTING
8
RUBBER MOUNTING
11
SHIM BETWEEN THE SPRING LEAVES
14
SPRING CLAMP , TO BE ADAPTED DURING ASSEMBLY
14
SPRING CLAMP
17
RIVET SPRING CLAMP TO SPRING LEAF
20
SPACER TUBE , Replaced By: A0003213253
20
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
23
SCREW 3/2-WAY VALVE TO BRACKET
23
SCREW , Replaced By: N304014008009
24
SCREW SPRING CLAMP
26
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
26
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
26
NUT , Replaced By: N913004008001
29
SPRING BOLT
32
NUT , Replaced By: N910113012005
32
HEXAGON NUT. NUT SPRING BOLT
68
DOWEL PIN FRONT AXLE TO FRONT SPRINGS
71
SHIM FRONT SPRINGS TO FRONT AXLE,5 251720
74
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
77
PLATE FRONT SPRINGS TO FRONT AXLE
80
U-BOLT FRONT SPRINGS TO FRONT AXLE 200 MM
80
U-BOLT FRONT SPRINGS TO FRONT AXLE 220 MM
83
BEARING BRACKET TORSION BAR,FRONT,5 903513
83
BEARING BRACKET TORSION BAR,FRONT,5 903514
84
BEARING SHELL TORSION BAR,FRONT,5 903514 NO.7390I I I I II
84
BEARING SHELL ,5 903514 NO.7390I I I I II, Replaced By: A9413230221, +002N910105012015
89
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
92
SHACKLE OUTSIDE
98
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET
104
SCREW REAR SPRING TO REAR SPRING FRONT BRACKET
104
HEXAGON HEAD BOLT. SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET
107
SCREW FRONT SPRING TO FRONT-SPRING REAR BRACKET
113
NUT FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS
116
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
122
BRACKET HELPER SPRING
128
SCREW REAR EXHAUST PIPE TO MUFFLER
137
NUT STRAP TO BRACKET
137
NUT , Replaced By: N910113010000
