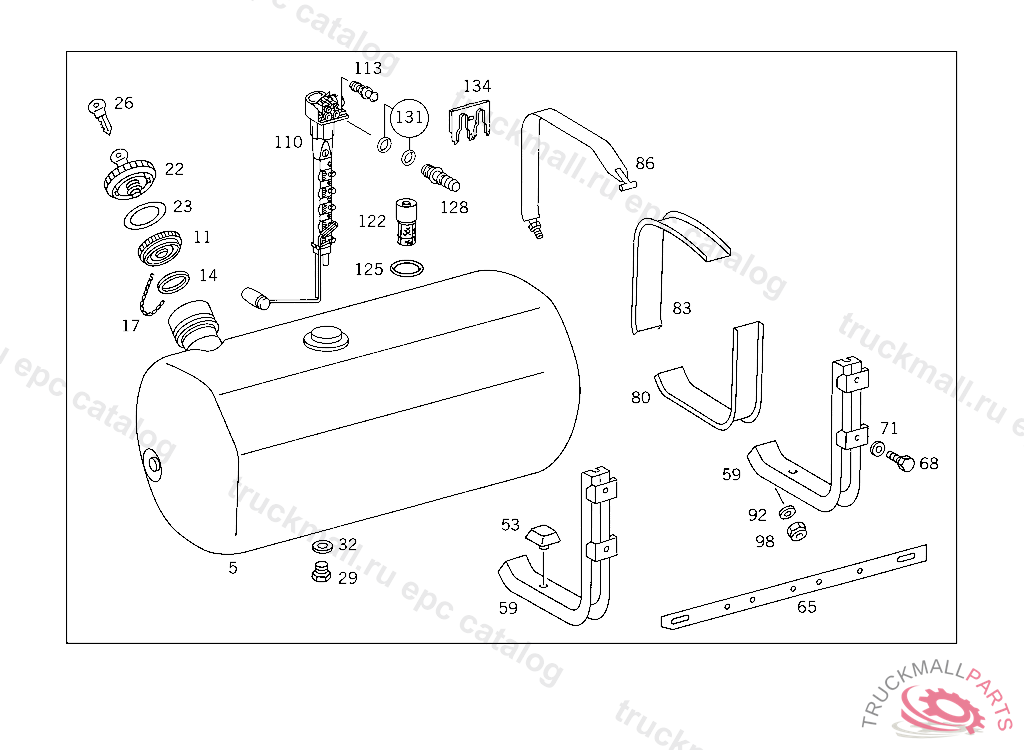

Поз.
Артикул
Описание
5
FUEL TANK125 L,K 169123
5
FUEL TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A6524700101, +001A0005409917, +001A0115426017
5
FUEL TANK ,K 169123, Replaced By: A6704700101
11
FILLER CAP , Replaced By: A0004700305
11
FILLER CAP
14
SEAL RING
17
CHAIN FILLER CAP
22
FILLER CAP , Replaced By: A0004718430
22
FILLER CAP LESS BREATHING
22
FILLER CAP LESS BREATHING
23
SEAL RING
23
SEAL RING , Replaced By: A3049970340
26
KEYTO 000 471 67 30, STATE LOCK NUMBER WHEN ORDERING
29
SCREW PLUG FUEL TANK
29
SCREW PLUG , Replaced By: N007604014110
32
SEAL RING WATER LEVEL SENSOR
32
SEAL RING AT TANK
53
STOP
59
SUPPORT FUEL TANK,FRONT AND REAR,5 761839
59
SUPPORT FUEL TANK
65
REINFORCEMENT SUPPORT TO CONSOLE,5 497851
68
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
68
SCREW , Replaced By: N308676014020
71
WASHER BRACKET TO SIDE MEMBER,5 703114
80
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
83
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
86
STRAP FUEL TANK TO SUPPORT
92
WASHER
98
NUT SUPPORT TO SIDE MEMBER
110
SENDER UNIT ,K 169122K 169123, Replaced By: A0085428917, +001A3529870045
110
SENDER UNIT FUEL GAUGE,K 169123
113
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
122
FUEL STRAINER FUEL TANK,K 169122
122
FUEL STRAINER FUEL TANK,K 169123
125
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
128
CONNECTOR FEED LINE AND RETURN LINE 11X1,5 MM
128
CONNECTOR FEED LINE AND RETURN LINE 12,5X1,25 MM
128
CONNECTOR FEED LINE AND RETURN LINE 8X1 MM
131
GASKET KIT CONNECTION ON FUEL GAUGE SENSOR
134
LOCK FUEL GAUGE SENDER UNIT CONNECTION
999
SHIM CONSOLE TO SIDE MEMBER
