Поз.
Артикул
Описание

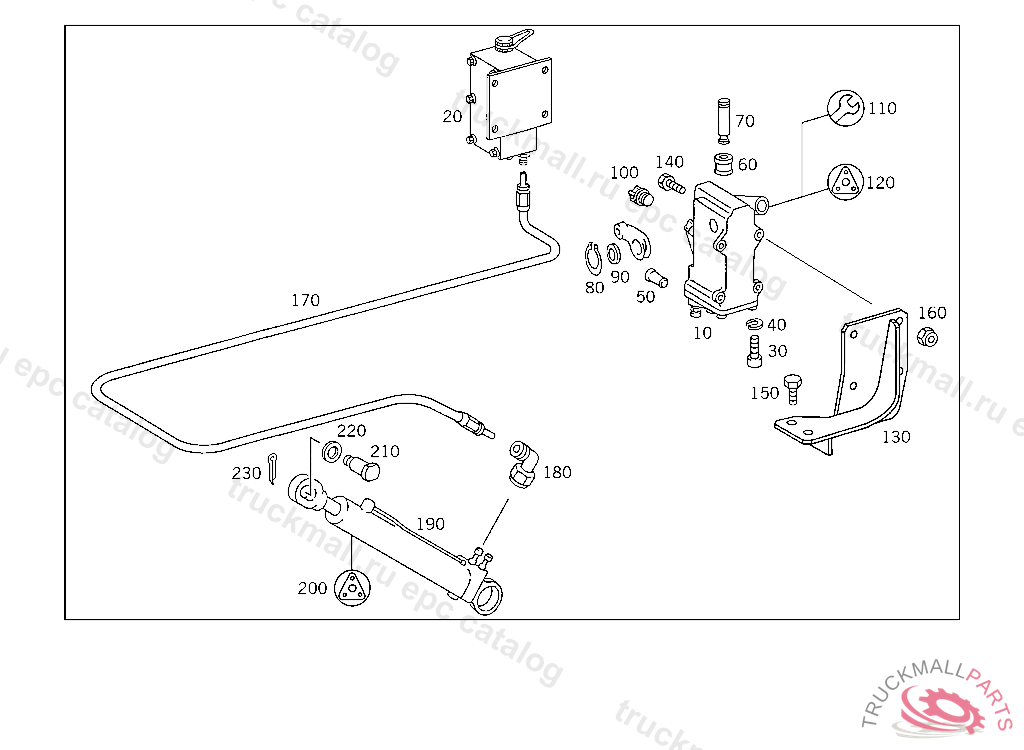

10
PUMP (HAND PUMP) WEBER
20
PUMP (HAND PUMP) POWER PACKER
30
SCREW
30
SCREW , Replaced By: N000000000190
40
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
50
FILTER
60
VALVETO 000 553 79 01,WEBER
70
PISTONTO 000 553 79 01,WEBER
80
LOCK RING
90
FITTED WASHER
100
SCREWTO 000 553 65 01,000 553 69 01,
100
SCREW
110
REPAIR KIT HAND PUMP TO 000 553 65 01,000 553 69 01,
120
GASKET KIT HAND PUMP
130
BRACKET , Replaced By: A6225500040
130
BRACKET AIR CLEANER SUPPORT
140
SCREW END PIECE TO EXHAUST PIPE M 10X25
140
SCREW BRACKET TO SIDE MEMBER
140
SCREW EXHAUST PIPE TO SIDE MEMBER
140
SCREW , Replaced By: N304017010002
150
SCREW , Replaced By: N910105010009
150
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
160
NUT EXHAUST PIPE TO SIDE MEMBER
160
NUT STRAP TO BRACKET
160
NUT , Replaced By: N910113010000
170
HOSE , Replaced By: A6555530582
170
HOSE FROM CYLINDER TO PUMP
170
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
180
FITTING FROM PUMP TO CYLINDER
180
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
190
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
190
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
200
GASKET KIT HYDRAULIC CYLINDER WEBER
200
GASKET KIT HYDRAULIC CYLINDER POWER PACK
210
PIN HYDRAULIC CYLINDER TO SWIVEL ARM
220
WASHER HYDRAULIC CYLINDER TO SWIVEL ARM
230
COTTER PIN HYDRAULIC CYLINDER TO SWIVEL ARM
999
PUMP (HAND PUMP) POWER PACKER,4 733732
999
PUMP (HAND PUMP)
999
HOSE , Replaced By: A6555530582
999
HOSE , Replaced By: A6205530182
999
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
999
HOSE , Replaced By: A6555530082
