Поз.
Артикул
Описание

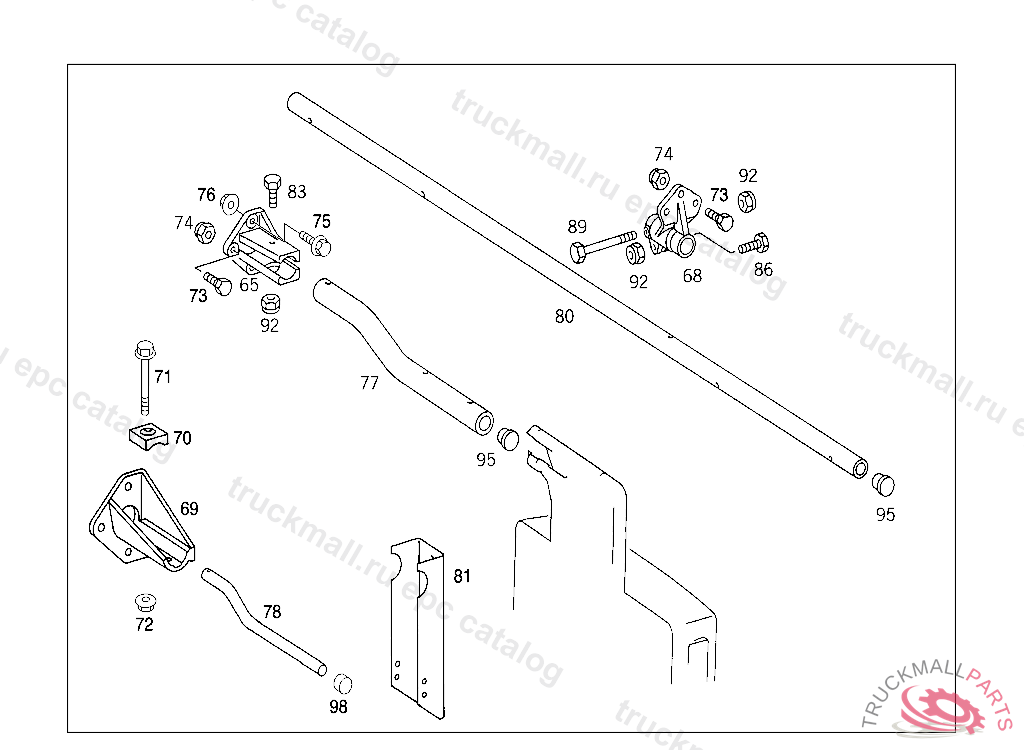

68
BEARING BRACKET TAIL LAMP
69
BEARING BRACKET LEFT TAIL LAMP,K 257461
69
BEARING BRACKET RIGHT TAIL LAMP,K 257461
70
CLAMPING PIECE BRACKET TO BEARING BRACKET,K 274033
71
SCREW BRACKET TO BEARING BRACKET,K 274033
72
NUT EXHAUST PIPE TO SIDE MEMBER
73
SCREW REAR EXHAUST PIPE TO MUFFLER
74
NUT , Replaced By: N910113010000
74
NUT STRAP TO BRACKET
77
BRACKET RIGHT
77
BRACKET LEFT AND RIGHT,5 453765
78
BRACKET TAIL LAMP
83
SCREW , Replaced By: N304017010055
83
SCREW , Replaced By: N304017010050
92
NUT , Replaced By: N910113010000
92
NUT STRAP TO BRACKET
95
EXPANSION PLUG BRACKET
98
CAP AT BRACKET,K 257460
