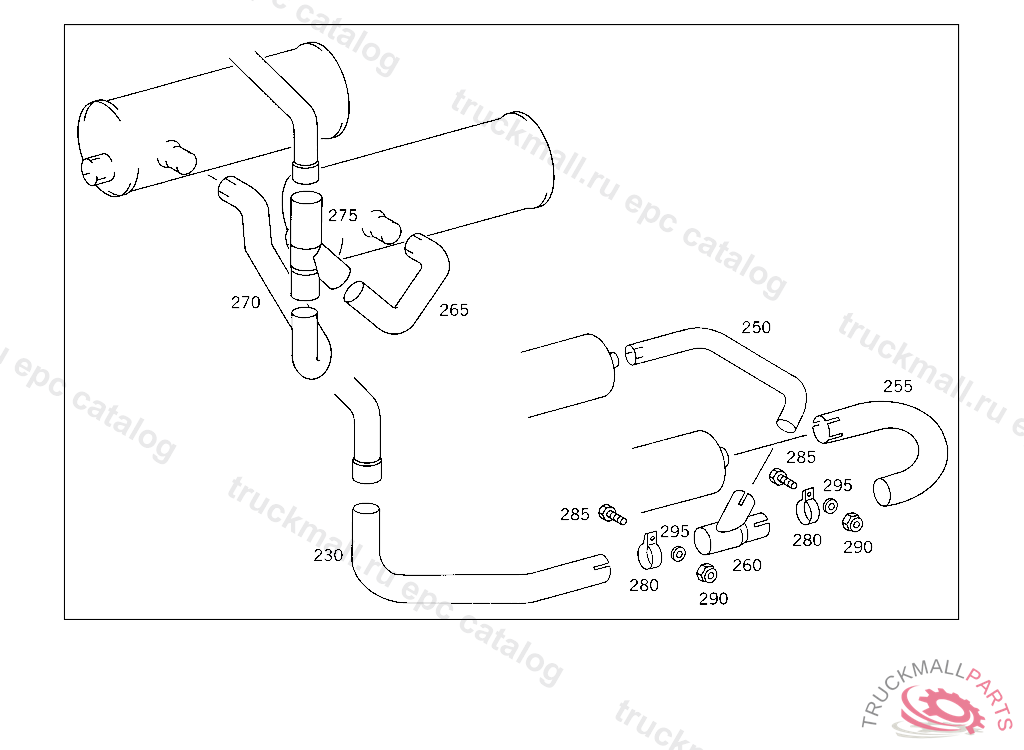

Поз.
Артикул
Описание
230
CONNECTOR FROM CONNECTION FITTING TO CAB REAR PANEL
230
CONNECTOR EXHAUST PIPE TO MUFFLER,K 027551
230
CONNECTOR FROM CONNECTION FITTING TO CAB REAR PANEL
230
CONNECTOR FROM EXHAUST MUFFLER TO TAIL PIPE
230
CONNECTOR FROM CONNECTION FITTING TO CAB REAR PANEL,5 741049
230
CONNECTOR REAR EXHAUST PIPE TO MUFFLER
230
CONNECTOR FROM CONNECTOR TO EXHAUST MUFFLER
230
CONNECTOR FROM EXHAUST MUFFLER TO TAIL PIPE
250
REAR EXHAUST PIPE FROM RIGHT EXHAUST MUFFLER TO CONNEC TION FITTING,5 741048
250
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
250
REAR EXHAUST PIPE FROM RIGHT EXHAUST MUFFLER TO CONNEC TION FITTING,5 741049
250
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
255
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,LEFT
255
REAR EXHAUST PIPE FROM LEFT EXHAUST MUFFLER TO CONNECTION FITTING
260
FITTING REAR EXHAUST PIPE TO MUFFLER
265
REAR EXHAUST PIPE FROM LEFT EXHAUST MUFFLER TO CONNECTION FITTING
270
REAR EXHAUST PIPE FROM RIGHT EXHAUST MUFFLER TO CONNEC TION FITTING
275
FITTING CONNECTOR
280
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
280
CLAMP , Replaced By: N071555090502
280
CLAMP INTERMEDIATE PIECE
285
SCREW BRACKET TO SIDE MEMBER
285
SCREW PIPE CLAMP
285
SCREW , Replaced By: N304017008021
285
SCREW , Replaced By: N304017010002
290
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
290
NUT , Replaced By: N913004008001
290
NUT , Replaced By: N910113010000
290
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
290
NUT STRAP TO BRACKET
295
WASHER , Replaced By: N000125010532
295
WASHER RADIATOR TO RUBBER MOUNTING
999
PROTECTIVE PLATE FUEL TANK
999
REAR EXHAUST PIPE
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
END PIECE
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE ,5 193595
999
END PIECE
999
END PIECE REAR EXHAUST PIPE,5 298310
999
BRACKET STRUT
999
EXHAUST MUFFLER
999
BRACKET FRONT EXHAUST MUFFLER
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE SHORT,EXHAUST MUFFLER,RIGHT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE , Replaced By: A6524926914
999
END PIECE EXHAUST MUFFLER,LEFT AND RIGHT
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE
999
BRACKET TAIL PIPE
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 193595
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 193595
999
BRACKET , Replaced By: A6524920741
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
EXHAUST PIPE FRONT,REAR PART,K 035522
999
END PIECE LEFT
999
END PIECE (TAIL PIPE)
999
END PIECE RIGHT
999
END PIECE TAIL PIPE,FRONT,K 027551
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468859
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE (TAIL PIPE)
999
END PIECE (TAIL PIPE),K 035523
999
PROTECTIVE PLATE , NOT USED
999
END PIECE (TAIL PIPE),K 035523
999
BRACKET
999
END PIECE TAIL PIPE TO EXHAUST MUFFLER
999
END PIECE (TAIL PIPE)
999
END PIECE ,5 765949
999
END PIECE
999
END PIECE
999
END PIECE (TAIL PIPE),5 5644795 758825
999
END PIECE (TAIL PIPE),5 5644795 758825
999
END PIECE (TAIL PIPE)
999
BRACKET ,5 768419, Replaced By: A3464910441
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
END PIECE (TAIL PIPE)
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
END PIECE
999
BRACKET TAIL PIPE
999
BRACKET PROTECTIVE PLATE TO SUPPORT
999
SCREW , Replaced By: N304017010002
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
NUT , Replaced By: N910113010000
