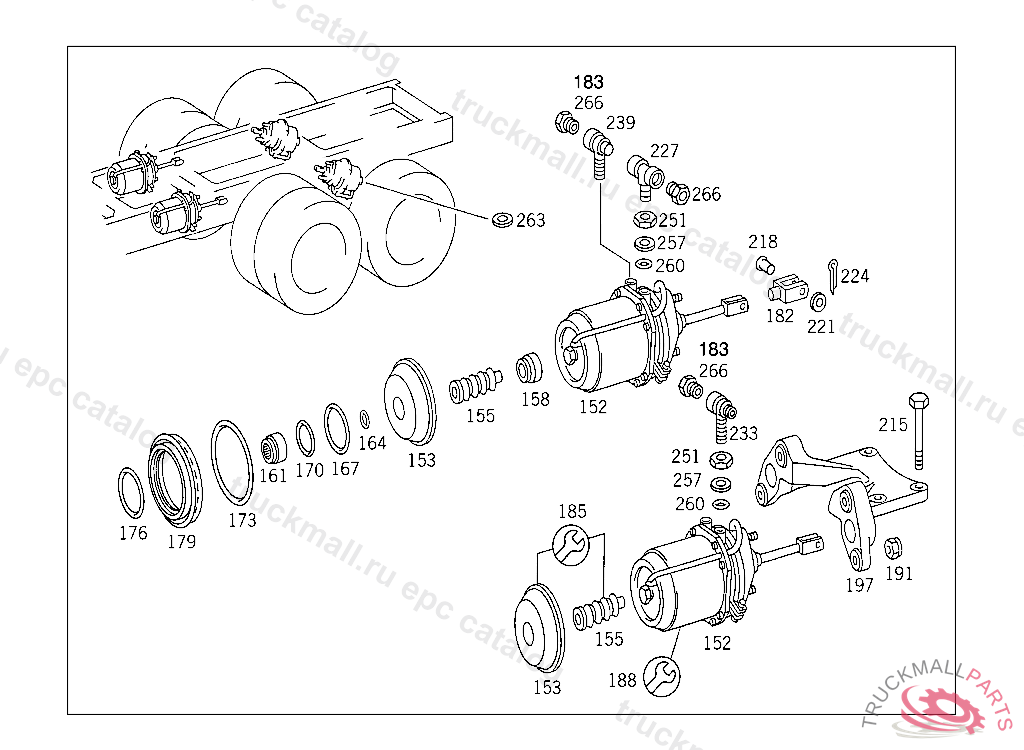

Поз.
Артикул
Описание
191
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
191
NUT COMBINATION CYLINDER TO BEARING BRACKET
218
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
221
WASHER , Replaced By: N000433015005
221
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
224
COTTER PIN STRAP TO SUPPORT
227
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
233
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
239
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
251
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
257
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
260
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
263
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
266
SCREW. UNION SCREW LINE CONNECTION
