Поз.
Артикул
Описание

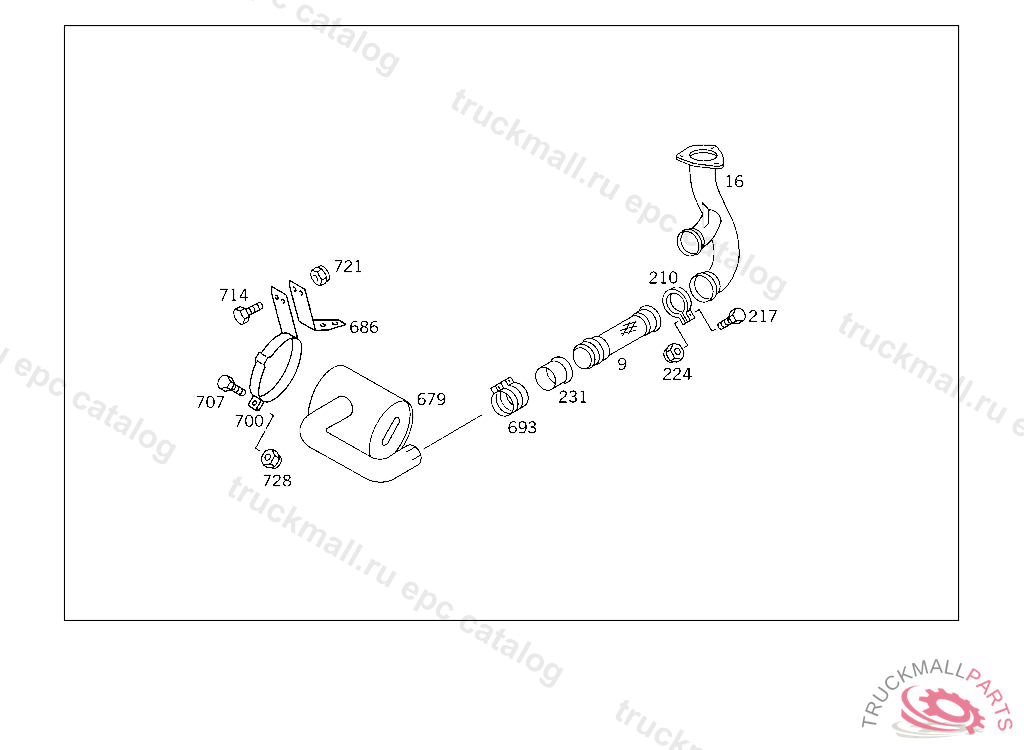

9
FLEXIBLE METAL TUBE CONNECTOR
9
FLEXIBLE METAL TUBE FRONT
16
END PIECE FRONT
16
CONNECTOR FRONT,K 118397
16
CONNECTOR FRONT
210
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
217
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
217
SCREW , Replaced By: N304017008027
224
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
224
NUT , Replaced By: N913004008001
231
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
679
RESONATOR , NOT USED
686
BRACKET RESONATOR, NOT USED
693
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
700
BRACKET RESONATOR, NOT USED
707
SCREW BRACKET TO SIDE MEMBER
707
SCREW BRACKET TO SIDE MEMBER
707
SCREW , Replaced By: N304017010002
714
SCREW END PIECE TO EXHAUST PIPE M 12X30
714
SCREW END PIECE TO EXHAUST PIPE M 12X30
714
SCREW , Replaced By: N304017012020
721
NUT END PIECE TO EXHAUST PIPE
721
NUT END PIECE TO EXHAUST PIPE
728
NUT STRAP TO BRACKET
728
NUT STRAP TO BRACKET
728
NUT , Replaced By: N910113010000
999
PROTECTIVE PLATE FUEL TANK
999
CLAMP UPPER EXHAUST PIPE TO BRACKET
999
STRAP EXHAUST MUFFLER
999
EXHAUST PIPE FRONT,K 087975
999
EXHAUST PIPE FRONT,K 087976
999
INTERMEDIATE PIECE FRONT,K 087976
999
BRACKET FRONT EXHAUST PIPE
999
BRACKET AT SIDE MEMBER
999
CONNECTOR FRONT,K 087975
999
CONNECTOR FRONT
999
EXHAUST PIPE
999
STRAP STRAP TO SUPPORT
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
999
PROTECTIVE PLATE LEFT EXHAUST PIPE, REPAIR SOLUTION FOR PENDANT OIL FILTER5 521312
