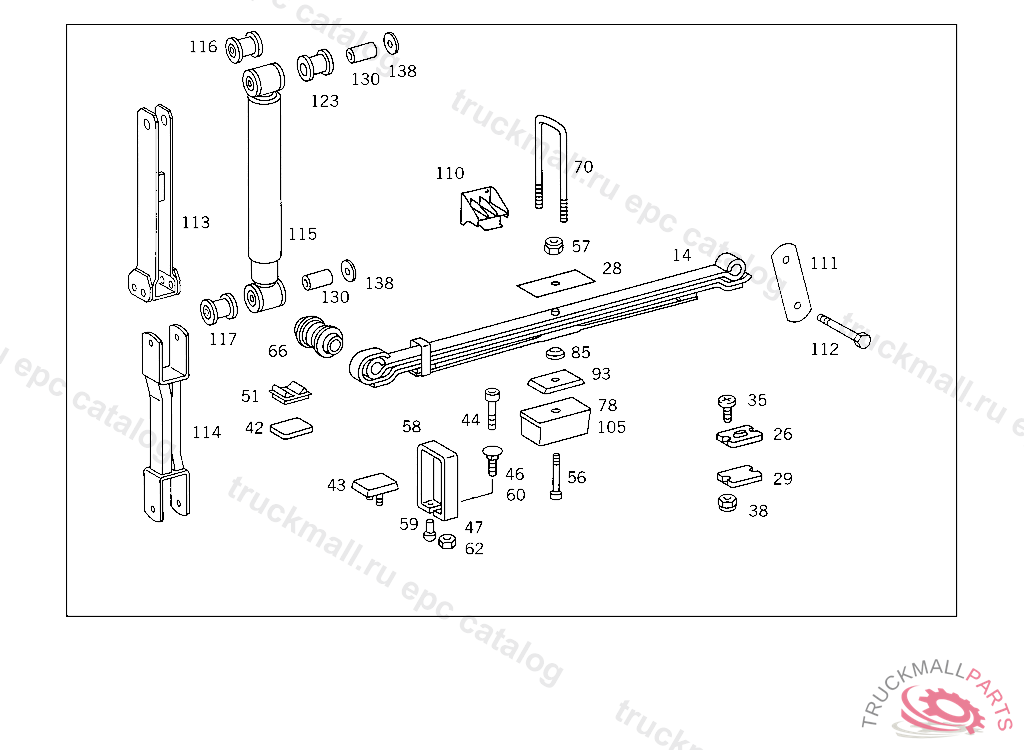

Поз.
Артикул
Описание
14
REAR SPRING (SUPPORTING SPRING),3 LEAVES
14
REAR SPRING (SUPPORTING SPRING),3 LEAVES
14
REAR SPRING (SUPPORTING SPRING),4 LEAVES
14
REAR SPRING (SUPPORTING SPRING),3 LEAVES
14
REAR SPRING (SUPPORTING SPRING),4 LEAVES
14
REAR SPRING (SUPPORTING SPRING),4 LEAVES
14
REAR SPRING (SUPPORTING SPRING),3 LEAVES,5 711071
14
REAR SPRING (SUPPORTING SPRING),3 LEAVES,5 711071
14
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6733202006
14
REAR SPRING (SUPPORTING SPRING),4 LEAVES
14
REAR SPRING (SUPPORTING SPRING),3 LEAVES
14
REAR SPRING (SUPPORTING SPRING),3 LEAVES,5 711072
14
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6743204106
14
REAR SPRING (SUPPORTING SPRING),3 LEAVES
14
REAR SPRING (SUPPORTING SPRING),3 LEAVES
14
REAR SPRING (SUPPORTING SPRING),3 LEAVES
14
REAR SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
14
REAR SPRING , Replaced By: A6733201106
14
REAR SPRING , Replaced By: A6733201206
14
REAR SPRING (SUPPORTING SPRING),4 LEAVES
14
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6733202106
14
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6753203506
14
REAR SPRING (SUPPORTING SPRING),4 LEAVES
14
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6783200306
14
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6733202206
14
REAR SPRING (SUPPORTING SPRING),3 LEAVES
14
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6743203906
14
REAR SPRING (SUPPORTING SPRING),3 LEAVES
14
REAR SPRING , Replaced By: A6743201206
14
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6743203306
14
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6743203506
14
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6753202906
14
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6753203906
14
REAR SPRING (SUPPORTING SPRING),4 LEAVES
14
REAR SPRING (SUPPORTING SPRING),3 LEAVES
26
SHIM , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9703250184
26
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
28
SHIM , Replaced By: A9703210184
28
SHIM , Replaced By: A9703210184
28
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
28
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
29
SHIM BETWEEN THE SPRING LEAVES
29
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
29
SHIM , Replaced By: A9703250184
29
SHIM , Replaced By: A9703250184
35
SCREW RUBBER BUFFER TO SPRING LEAF
38
NUT , Replaced By: N913004006001
38
NUT PUMP TO BRACKET
42
SHIM BETWEEN THE SPRING LEAVES
42
SHIM BETWEEN THE SPRING LEAVES
43
RUBBER BUFFER BETWEEN THE SPRING LEAVES
43
RUBBER BUFFER BETWEEN THE SPRING LEAVES
43
RUBBER BUFFER BETWEEN THE SPRING LEAVES, Replaced By: A3753200844
43
RUBBER BUFFER BETWEEN THE SPRING LEAVES
43
RUBBER BUFFER BETWEEN THE SPRING LEAVES
44
SCREW , Replaced By: A0019907212
44
SCREW SHIM TO LEAF SPRING
44
SCREW , Replaced By: N000912006175
46
SCREW SPRING CLAMP TO SPRING LEAF
47
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
47
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
47
NUT , Replaced By: N913004008001
47
NUT , Replaced By: N913004008001
51
RUBBER BUFFER BETWEEN THE SPRING EYES
56
SPRING BOLTM 12X125
56
SPRING BOLT
56
SPRING BOLTM 12X90
56
SPRING BOLT
56
SPRING BOLT
56
SPRING BOLT
56
SPRING BOLTM 12X110
56
SPRING BOLTM 12X110
56
SPRING BOLTM 12X135
56
SPRING BOLT
56
SPRING BOLT , Replaced By: N004626012272
57
HEXAGON NUT. NUT SPRING BOLT
57
NUT , Replaced By: N910113012005
58
SPRING CLAMP
58
SPRING CLAMP , Replaced By: A6763210033
58
SPRING CLAMP AT SPRING LEAF NO.5
59
RIVET SPRING CLAMP TO SPRING LEAF
59
RIVET SPRING CLAMP TO SPRING LEAF
60
SCREW SPRING CLAMP TO SPRING LEAF
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
62
NUT , Replaced By: N913004008001
66
BUSHING SPRING EYE,FRONT AND REAR
66
BUSHING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6753200650
66
BUSHING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6753200650
66
BUSHING SPRING EYE,FRONT AND REAR
70
U-BOLT REAR SPRING TO REAR AXLE 450 MM
70
U-BOLT REAR SPRING TO REAR AXLE 440 MM
70
U-BOLT REAR SPRING TO REAR AXLE 370 MM
70
U-BOLT REAR SPRING TO REAR AXLE 370 MM
70
U-BOLT , Replaced By: A6793510325
70
U-BOLT REAR SPRING TO REAR AXLE 380 MM,K 028585
70
U-BOLT REAR SPRING TO REAR AXLE 320 MM
70
U-BOLT REAR SPRING TO REAR AXLE 340 MM
70
U-BOLT REAR SPRING TO REAR AXLE 320 MM
70
U-BOLT REAR SPRING TO REAR AXLE 330 MM,K 028585
70
U-BOLT FRONT SPRINGS TO FRONT AXLE 280 MM
70
U-BOLT REAR SPRING TO REAR AXLE 380 MM
70
U-BOLT , Replaced By: A3423510125
70
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT 300MM
70
U-BOLT REAR SPRING TO REAR AXLE 400 MM,5 201988
70
U-BOLT , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 999999K 000001 - K 028584, Replaced By: A6793510625, +001A6793250031
70
U-BOLT , Replaced By: A6743510125
70
U-BOLT , Replaced By: A3213511625
78
SHIM REAR SPRING 90 MM
78
SHIM ,5 361886, Replaced By: A6743220484, +001A3229910060
78
SHIM BETWEEN SPRING AND FRONT AXLE
78
SHIM REAR SPRING,5 3618875 437116
78
SHIM REAR SPRING,5 3618875 437116
78
SHIM REAR SPRING,5 3618875 437116
85
DOWEL PIN (CENTERING CONE),5 361886
85
DOWEL PIN , Replaced By: A6749910060
85
DOWEL PIN BETWEEN SPRING AND FRONT AXLE
93
SHIM REAR SPRING
93
SHIM
93
SHIM
93
SHIM REAR SPRING 90 MM
93
SHIM REAR SPRING
93
SHIM REAR SPRING 80 MM,5 361887
93
SHIM REAR SPRING
93
SHIM REAR SPRING
105
SHIM REAR SPRING
105
SHIM REAR SPRING
105
SHIM REAR SPRING
110
BRACKET REAR SPRING STOP,5 711072
110
BRACKET REAR SPRING STOP
110
BRACKET REAR SPRING STOP
111
SHACKLE (SPRING SHACKLE)
111
SHACKLE (SPRING SHACKLE)
112
SCREW , Replaced By: N000960018072
112
SCREW VIBRATION ABSORBER TO CONSOLE
113
SHACKLE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 592870, Replaced By: A6763200137, +002A6753262640, +002A6753261281, +004N000960012332
113
SHACKLE TORSION BAR TO CONSOLE,5 5928715 711071
113
SHACKLE TORSION BAR TO CONSOLE,5 5928715 711071
114
SHACKLE TORSION BAR TO CONSOLE,5 711072
115
SHOCK ABSORBER , Replaced By: A0053265300
115
SHOCK ABSORBER REAR AXLE,5 711071
115
SHOCK ABSORBER REAR AXLE,5 711071
115
SHOCK ABSORBER REAR AXLE,5 711072
115
SHOCK ABSORBER REAR AXLE,5 711071, Replaced By: A0063267700
115
SHOCK ABSORBER , Replaced By: A0053265500
116
JOINT TOP TO 005 326 53 00
116
JOINT TOP TO 005 326 53 00
117
JOINT BOTTOM TO 005 326 53 00
117
JOINT BOTTOM TO 005 326 53 00
123
RUBBER MOUNTING004 326 01 00
123
RUBBER MOUNTING004 326 01 00
123
RUBBER MOUNTING004 326 01 00
123
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
130
SPACER RINGTO 002 323 86 00,003 323 03 00,
130
BUSHING TOP TO 005 326 55 00,5 711072
130
BUSHING TOP TO 677 326 00 00,5 711071
130
BUSHING TOP TO 677 326 00 00,5 711071
130
BUSHING TOP TO 677 326 00 00,5 711071
138
SPACER TUBE TOP TO 005 326 55 00,5 711072
138
SPACER TUBE
138
SPACER TUBE
138
SPACER TUBE
999
DOWEL PIN FRONT SPRINGS TO FRONT AXLE 25 MM, Replaced By: A9303230474
999
SHIM
999
BUSHING SPRING EYE,REAR
999
BUSHING SPRING EYE,FRONT
999
SHIM REAR SPRING
999
RUBBER BUFFER
999
BRACKET LEFT STABILIZER
999
BRACKET RIGHT STABILIZER
999
REAR SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "3"
999
REAR SPRING
999
REAR SPRING (SUPPORTING SPRING),3 LEAVES
999
REAR SPRING (SUPPORTING SPRING),4 LEAVES,5 378795
999
SHACKLE TORSION BAR
999
REAR SPRING (SUPPORTING SPRING),3 LEAVES
999
U-BOLT REAR SPRING TO REAR AXLE 420 MM,5 201989
999
REAR SPRING
999
SHIM
999
COVER PLATE
