Поз.
Артикул
Описание
5

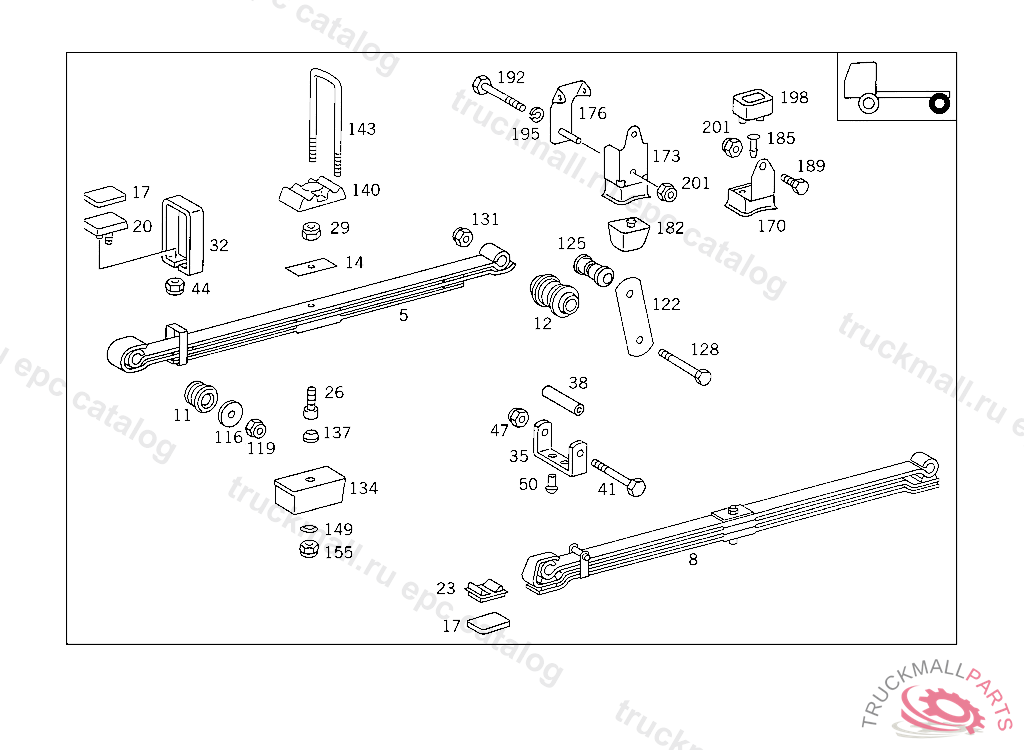

REAR SPRING (SUPPORTING SPRING),3 LEAVES
5
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6743203506
11
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
11
BUSHING SPRING EYE,FRONT
12
BUSHING SPRING EYE,REAR
14
SHIM , Replaced By: A9703210184
14
SHIM , Replaced By: A9703210184
14
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
17
SHIM BETWEEN THE SPRING LEAVES
20
RUBBER BUFFER
23
RUBBER BUFFER BETWEEN THE SPRING EYES
26
SPRING BOLT
29
HEXAGON NUT. NUT SPRING BOLT
29
NUT , Replaced By: N910113012005
32
SPRING CLAMP , Replaced By: A6753210133
32
SPRING CLAMP , Replaced By: A6763210033
32
SPRING CLAMP AT SPRING LEAF NO.5
44
NUT , Replaced By: N913004008001
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
116
THRUST WASHER REAR SPRING TO REAR SPRING FRONT BRACKET
119
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
119
NUT , Replaced By: N910113018004
122
SHACKLE SPRING SHACKLE TO SPRING REAR BRACKET
122
SHACKLE ,5 078346 THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY THE SET, Replaced By: A6733250620
125
BUSHING SPARE WHEEL HOIST TO CROSS MEMBER
125
BUSHING REAR SPRING TO REAR SPRING REAR BRACKET
128
SCREW VIBRATION ABSORBER TO CONSOLE
131
NUT , Replaced By: N910113018004
131
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
134
SHIM CONTROL ARM TO REAR AXLE
134
SHIM REAR SPRING
137
DOWEL PIN (CENTERING CONE),5 361886
137
DOWEL PIN , Replaced By: A6749910060
137
DOWEL PIN (CENTERING CONE),5 361887, Replaced By: A9303230574
137
CENTERING BOLT (CENTERING CONE),5 361887
140
PLATE REAR SPRING TO REAR AXLE
143
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT 300MM
149
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
155
NUT FRONT SPRINGS TO FRONT AXLE
170
BRACKET AXLE STOP
182
HELPER SPRING RUBBER BUFFER
185
PIN RUBBER BUFFER
189
SCREW BRACKET TO SIDE MEMBER
198
SHIM STOP TO FRAME
201
NUT STRAP TO BRACKET
201
NUT , Replaced By: N910113010000
