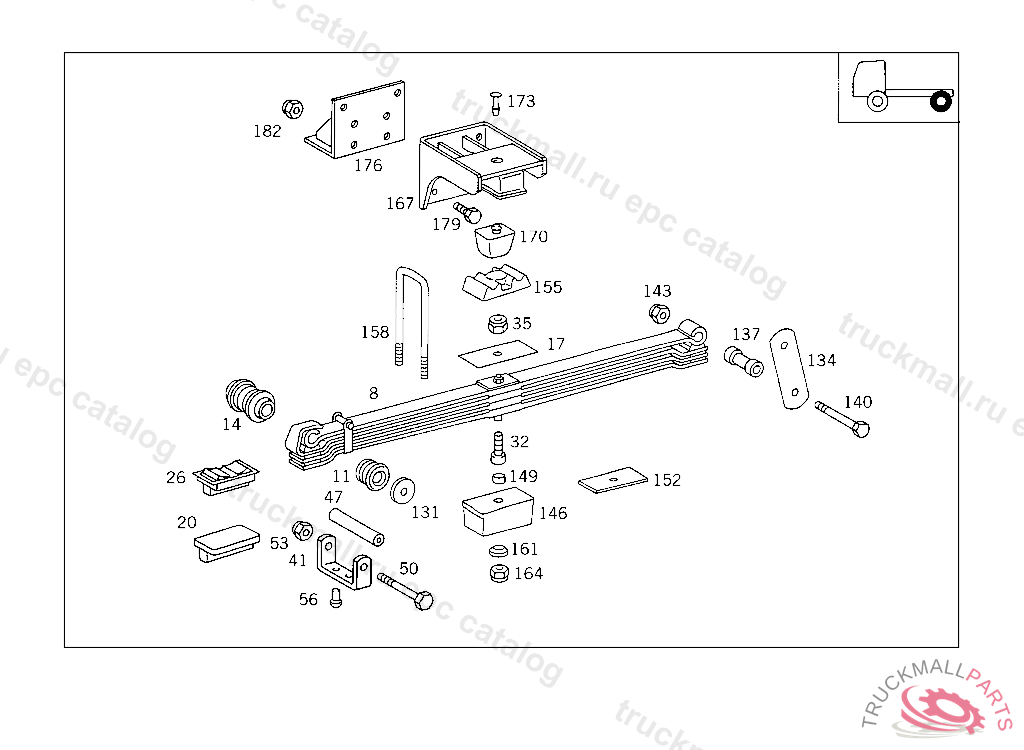

Поз.
Артикул
Описание
14
BUSHING SPRING EYE,FRONT AND REAR
17
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
17
SHIM , Replaced By: A9703210184
17
SHIM , Replaced By: A9703210184
20
SHIM BETWEEN THE SPRING LEAVES
26
RUBBER BUFFER BETWEEN THE SPRING EYES
35
HEXAGON NUT. NUT SPRING BOLT
35
NUT , Replaced By: N910113012005
131
THRUST WASHER REAR SPRING TO REAR SPRING FRONT BRACKET
134
SHACKLE (SPRING SHACKLE)
137
BUSHING REAR SPRING TO REAR SPRING REAR BRACKET
137
BUSHING SPARE WHEEL HOIST TO CROSS MEMBER
140
SCREW , Replaced By: N000960018072
140
SCREW VIBRATION ABSORBER TO CONSOLE
143
NUT , Replaced By: N910113018004
143
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
152
SHIM
155
PLATE REAR SPRING TO REAR AXLE
158
U-BOLT REAR SPRING TO REAR AXLE 320 MM
164
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
