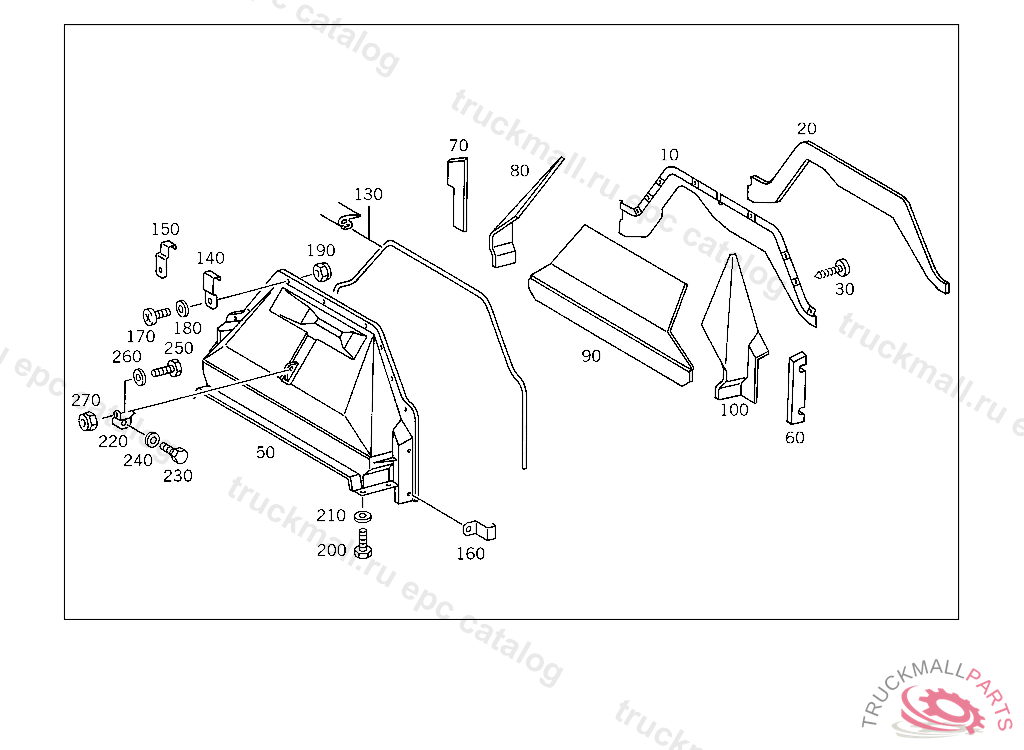

Поз.
Артикул
Описание
10
ANTINOISE CAPSULE
10
ANTINOISE CAPSULE
10
ANTINOISE CAPSULE
20
SEALING PLATE
30
SHEET METAL SCREW COVERING TO CAB 4.2X19
30
SHEET METAL SCREW , Replaced By: N000000000523
50
ANTINOISE CAPSULE ,5 462573
50
ANTINOISE CAPSULE
50
ANTINOISE CAPSULE
50
ANTINOISE CAPSULE ,5 462572
60
SEALING PLATE
70
SEALING PLATE
80
SEALING PLATE
90
SEALING PLATE
100
SEALING PLATE
130
SEAL
130
SEAL
130
SEAL , Replaced By: A6735240392
140
BRACKET SEAL TO COVERING,5 462573
150
BRACKET SEAL TO COVERING
160
BRACKET SEAL TO COVERING,5 462572
170
SCREW , Replaced By: N000000001146
170
SCREW CLAMP MOUNTING M 6X16
170
SCREW COVER PLATE TO BRACKET
180
WASHER COMPRESSED AIR LINE TO BRACKET
180
WASHER , Replaced By: N009021006208
190
NUT AT FILTER BRACKET
200
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
210
WASHER , Replaced By: N009021008213
210
WASHER BRACKET TO LEFT SIDE MEMBER
220
BRACKET
230
SCREW , Replaced By: N910105010011
230
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
240
WASHER , Replaced By: N000125008443
240
WASHER EXHAUST MUFFLER TO STRAP
250
SCREW AT FILTER BRACKET
260
WASHER , Replaced By: N009021006208
260
WASHER COMPRESSED AIR LINE TO BRACKET
270
NUT AT FILTER BRACKET
999
LOCK. CLIP FASTENER HOUSING UPPER PART TO LOWER PART
999
LOCK , Replaced By: A0009942545
999
COVERING
999
ANTINOISE CAPSULE
999
GASKET
