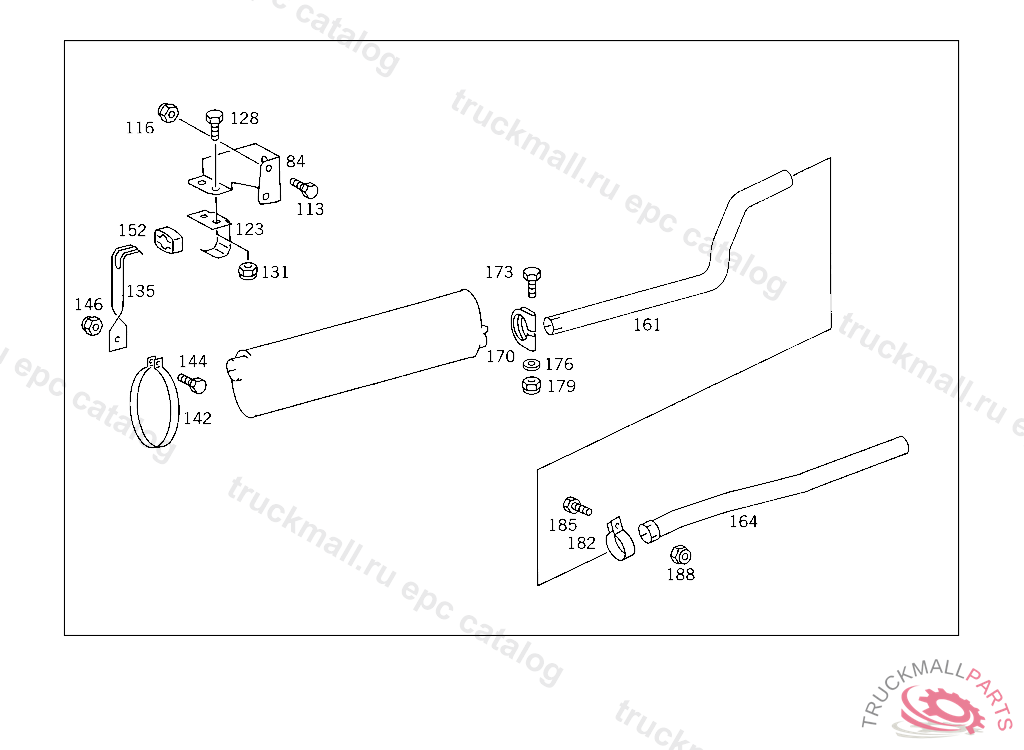

Поз.
Артикул
Описание
84
BRACKET AT SIDE MEMBER,5 398760
116
NUT , Replaced By: N910113010000
116
NUT STRAP TO BRACKET
123
SUPPORT REAR EXHAUST MUFFLER
128
SCREW BRACKET TO SIDE MEMBER
128
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
131
NUT STRAP TO BRACKET
131
NUT STRAP TO BRACKET
131
NUT , Replaced By: N910113010000
135
BRACKET EXHAUST MUFFLER,REAR
142
BRACKET AT MUFFLER
142
BRACKET , Replaced By: A6744912841
144
SCREW , Replaced By: N304017010002
144
SCREW BRACKET TO SIDE MEMBER
146
NUT , Replaced By: N910113010000
146
NUT STRAP TO BRACKET
146
NUT STRAP TO BRACKET
152
DAMPING PAD PARTICLE FILTER
161
REAR EXHAUST PIPE FRONT PART,5 337343
161
REAR EXHAUST PIPE FRONT PART,5 337342
164
REAR EXHAUST PIPE REAR PART,5 337342
164
REAR EXHAUST PIPE REAR PART,5 337343
170
CLAMP BRACKET TO EXHAUST PIPE
173
SCREW , Replaced By: N304014008021
173
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
173
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
176
WASHER , Replaced By: N000125008443
176
WASHER EXHAUST MUFFLER TO STRAP
176
WASHER EXHAUST MUFFLER TO STRAP
179
NUT , Replaced By: N913004008001
179
NUT , Replaced By: N913004008001
182
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
182
CLAMP , Replaced By: N071555094502
185
SCREW END PIECE TO EXHAUST PIPE M 10X25
188
NUT , Replaced By: N910113010000
188
NUT STRAP TO BRACKET
999
SCREW PROTECTIVE PLATE TO CLAMP
999
SCREW COVERING TO SUPPORT
999
PROTECTIVE PLATE , NOT USED
999
SUPPORT EXHAUST MUFFLER TO BRACKET
999
BRACKET AT SIDE MEMBER,5 478324
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 227991, Replaced By: A6764902640
999
BRACKET HEAT SHIELD
999
WASHER HEAT SHIELD TO BRACKET
