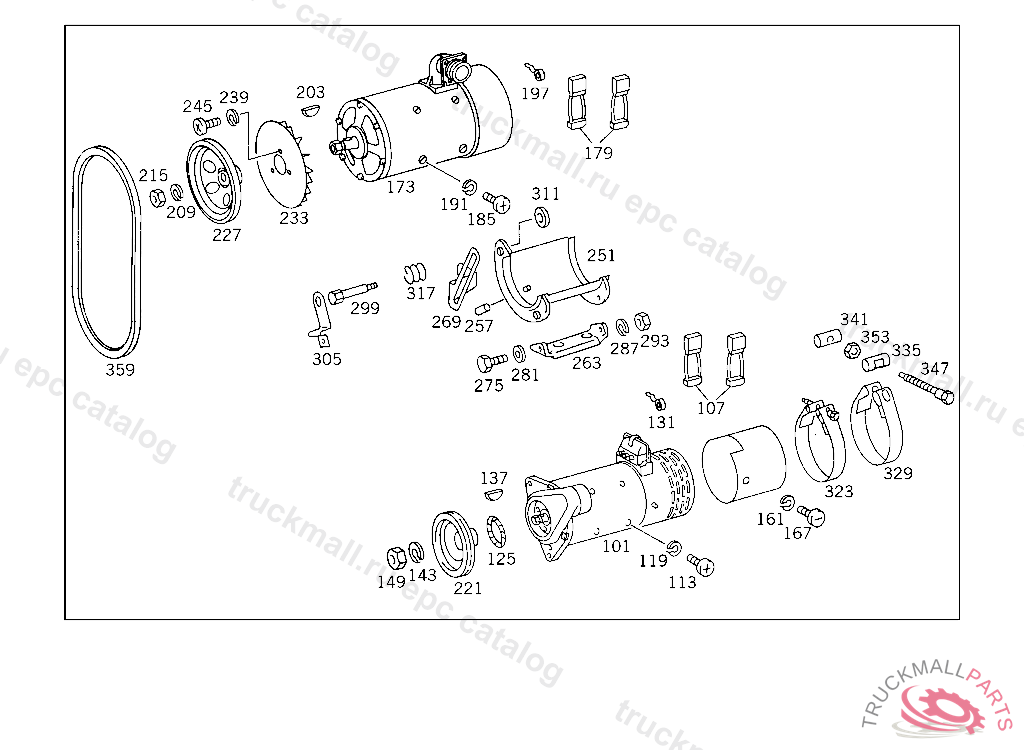

Поз.
Артикул
Описание
101
ALTERNATOR600 W/24 V
107
CARBON BRUSH SET ,9500212
113
SCREW MAIN CABLE HARNESS
119
LOCK WASHER BRACKET TO STEERING COLUMN END
125
SPRINGTO 001 151 38 01
131
SPRING
137
WOODRUFF KEY POWER STEERING PUMP
143
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
149
NUT
161
LOCK WASHER BRACKET TO STEERING COLUMN END
167
SCREW MAIN CABLE HARNESS
173
ALTERNATOR24 V 38 A
179
CARBON BRUSH SET
185
SCREW MAIN CABLE HARNESS
191
LOCK WASHER BRACKET TO STEERING COLUMN END
197
SPRING
203
WOODRUFF KEY POWER STEERING PUMP
209
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
215
NUT , Replaced By: N308673014001
215
NUT BRACKET TO SIDE MEMBER,K 035196
221
PULLEY
227
PULLEY
233
FAN
239
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
245
SCREW
251
BEARING BRACKET BOTTOM
257
CYLINDRICAL PIN
263
SUPPORT
269
CLAMP
275
SCREW CONNECTOR TO REAR SHIFTING ROD
275
SCREW , Replaced By: N304017010047
281
WASHER CONSOLE TO REAR CROSS MEMBER,5 751724
287
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
293
NUT BRACKET TO SUPPORT AND TO END PIECE
299
PIN ,000032
305
LOCK
311
WASHER
317
SPRING
323
STRAP
329
STRAP
335
PIN
341
PIN
347
SCREW
353
NUT
359
V-BELT SET2 PIECES
999
STUDTO 002 151 81 01,003 151 57 01
999
STUDTO 002 151 81 01,003 151 57 01
999
STUDTO 002 151 81 01,003 151 57 01
999
SHAFT WITH COUPLING TO 002 151 81 01,003 151 57 01
999
BEARINGTO 002 151 81 01,003 151 57 01
999
SPRINGTO 003 151 57 01
999
BUSHINGTO 002 151 81 01,003 151 57 01
999
BUSHINGTO 002 151 81 01,003 151 57 01
999
EXCITER COILTO 003 151 57 01
999
SOLENOID SWITCH CONTROL RELAY TO 002 151 81 01,003 151 57 01BOSCH, Replaced By: A0011529010
999
SOLENOID SWITCH ENGAGEMENT RELAY TO 003 151 57 01 BOSCH
999
COVER PLATE
999
REPAIR KIT STARTING MOTOR TO 004 151 00 01
999
SNAP RINGTO 002 151 81 01,003 151 57 01
999
SEAL RINGTO 002 151 81 01,003 151 57 01
999
NEEDLE BEARING , Replaced By: A0001513849
999
NEEDLE BEARINGTO 002 151 81 01,003 151 57 01
999
SEAL RINGTO 004 151 00 01
999
SCREW ALTERNATOR MOUNTING
999
BALL
999
KEYTO 003 151 57 01,002 151 81 01
