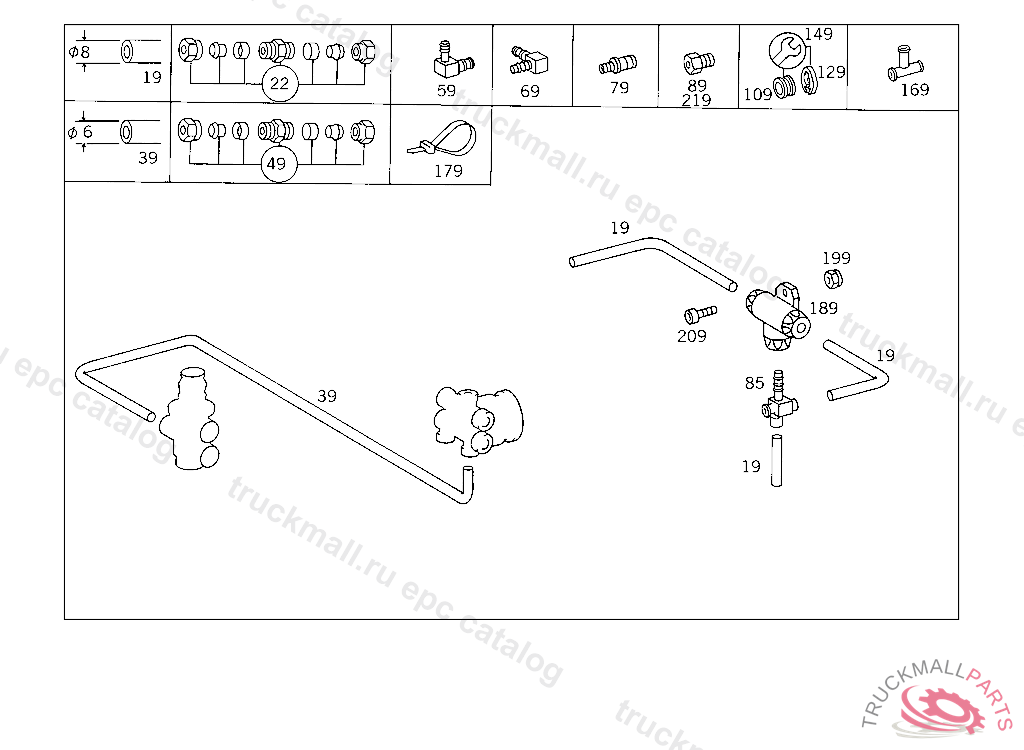

Поз.
Артикул
Описание
19
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
22
FITTING (PARTS KIT),LINE RUPTURE
39
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
39
PLASTIC PIPE RISING PIPE 4X6 MM
49
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
59
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
59
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
59
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
59
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
59
ELBOW FITTING , Replaced By: A0049905371
69
ELBOW FITTING HOSE WIDTH, 4 MM,TO M 22
69
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
69
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
79
CONNECTOR HOSE WIDTH, 6 MM,TO M16
79
CONNECTOR HOSE WIDTH, 6 MM,TO M16
79
CONNECTOR , Replaced By: A0029905478
85
CONNECTOR DISTRIBUTOR TO CAB
85
CONNECTOR DISTRIBUTOR TO CAB
89
SCREW. UNION SCREW , Replaced By: A0009973734
89
SCREW. UNION SCREW LINE CONNECTION
89
SCREW. UNION SCREW LINE CONNECTION
109
SEAL RING , Replaced By: A0009940747
109
LOCK RING LINE CONNECTION
109
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
129
LOCK LINE CONNECTION
129
LOCK , Replaced By: A0009945448
129
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
149
REPAIR KIT , Replaced By: A0309971748
149
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
149
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
169
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
179
LOOM TIE LINE MOUNTING 280 MM
179
LOOM TIE COMPRESSED AIR LINE MOUNTING
179
LOOM TIE LINE MOUNTING
179
LOOM TIE LINE MOUNTING
189
SHUTTLE VALVE. VALVE (SHUTTLE VALVE)
199
NUT , Replaced By: N913004008001
199
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
209
SCREW , Replaced By: N007984008044
209
SCREW SHUTTLE VALVE TO BRACKET
219
SCREW. UNION SCREW LINE CONNECTION
219
SCREW. UNION SCREW , Replaced By: A0009973734
219
SCREW. UNION SCREW LINE CONNECTION
999
CONNECTOR DISTRIBUTOR TO CAB
999
CONNECTORTO M22 / 4MM / VOSS 230
999
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10",TO M 22, VOSS 232
999
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
