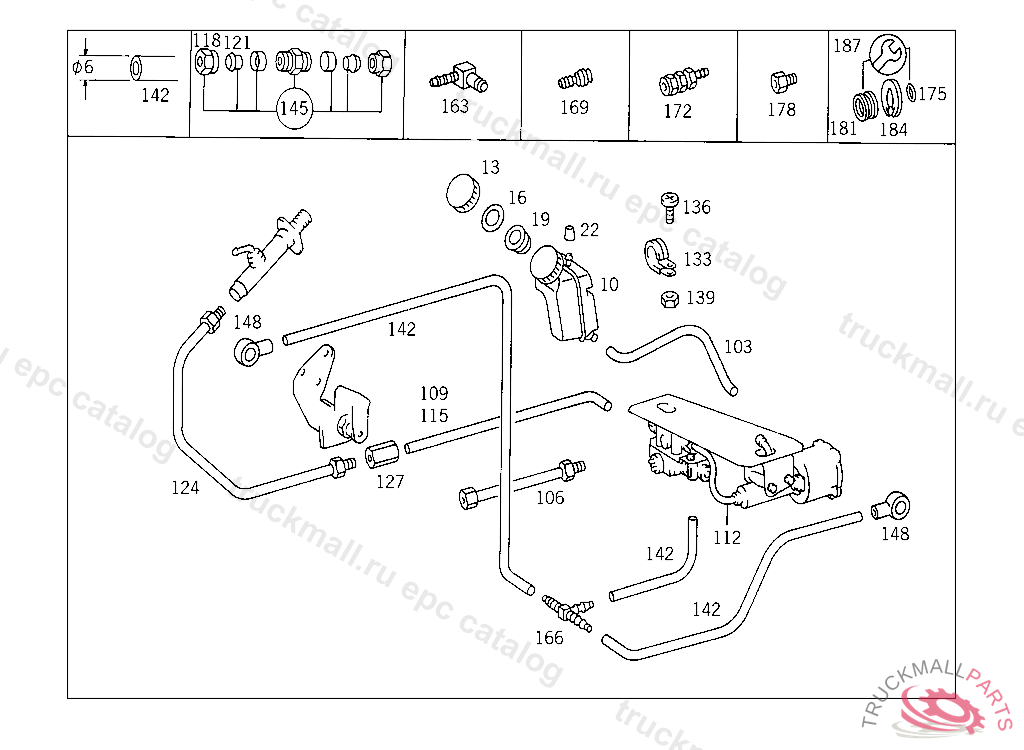

Поз.
Артикул
Описание
10
RESERVOIR
13
LOCKING CAP
16
SEAL RING
19
STRAINER
22
CAP RESERVOIR DE-AERATION
103
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
106
LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 700 MM
109
LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 400 MM, TO BE ADAPTED DURING ASSEMBLY
109
LINE FROM SHUTTLE VALVE TO CLUTCH REMOTE CONTROL MASTER CYLINDER 1100 MM, TO BE ADAPTED DURING ASSEMBLY
112
LINE FROM ENGINE-MOUNTING BRACKET TO CLUTCH BOOSTER 550 MM, TO BE ADAPTED DURING ASSEMBLY
115
LINE FROM HYDRAULIC LINE TO CONNECTION FITTING 2000 MM, NOT USED
115
LINE FROM ENGINE-MOUNTING BRACKET TO CLUTCH BOOSTER 550 MM, TO BE ADAPTED DURING ASSEMBLY
118
UNION NUT LINE CONNECTION
121
GLAND LINE CONNECTION
124
LINE FROM MASTER CYLINDER TO CONNECTOR 285 MM, TO BE ADAPTED DURING ASSEMBLY
127
INTERMEDIATE PIECE CLUTCH HOSE,K 172342
127
INTERMEDIATE PIECE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE,5 767800
127
INTERMEDIATE PIECE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE,5 767800
133
CLAMP ,K 147121, Replaced By: N000000000319
133
CLAMP OIL DIPSTICK TO RADIATOR
133
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
133
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
133
CLAMP LINE MOUNTING
136
SCREW , Replaced By: N304017006016
136
SCREW , Replaced By: N304017006020
136
SCREW PUMP TO BRACKET
136
SCREW LICENSE PLATE TO BRACKET
139
NUT BRACKET TO PIN
139
NUT BALL PIVOT TO LEVER
142
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
142
PLASTIC PIPE RISING PIPE 4X6 MM
145
FITTING (PARTS KIT),LINE RUPTURE
148
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
148
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
163
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
166
DISTRIBUTOR HOSE WIDTH, 6 MM
169
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
172
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
175
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
178
SCREW. UNION SCREW , Replaced By: A0009973734
178
SCREW. UNION SCREW LINE CONNECTION
181
SEAL RING , Replaced By: A0009940747
181
LOCK RING LINE CONNECTION
184
LOCK LINE CONNECTION
184
LOCK , Replaced By: A0009945448
187
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
187
REPAIR KIT , Replaced By: A0309971748
999
SEAL RING
999
GROMMET
999
LINE FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE 350 MM,556500-604337
999
CONNECTOR DISTRIBUTOR TO CAB
999
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER,K 032902
999
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER,K 032903N 820662
999
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
999
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
999
PIPE FROM SHUTTLE VALVE TO CYLINDER
999
PLUG TO PLUG THE FREE CONNECTIONS,K 063043
999
BRACKET SHUTTLE VALVE
999
PIPE FROM SHUTTLE VALVE TO CYLINDER,5 767801
999
PIPE FROM SHUTTLE VALVE TO CYLINDER
999
PIPE FROM SHUTTLE VALVE TO CYLINDER,5 767801
999
PIPE FROM SHUTTLE VALVE TO CYLINDER
999
PIPE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER,K 032903
999
PIPE CLUTCH ACTUATION
999
PIPE CLUTCH ACTUATION
999
PIPE FROM SHUTTLE VALVE TO CYLINDER
999
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
999
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
999
SCREW , Replaced By: N304017006034
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
HOLLOW SCREW HEATING CONNECTION
