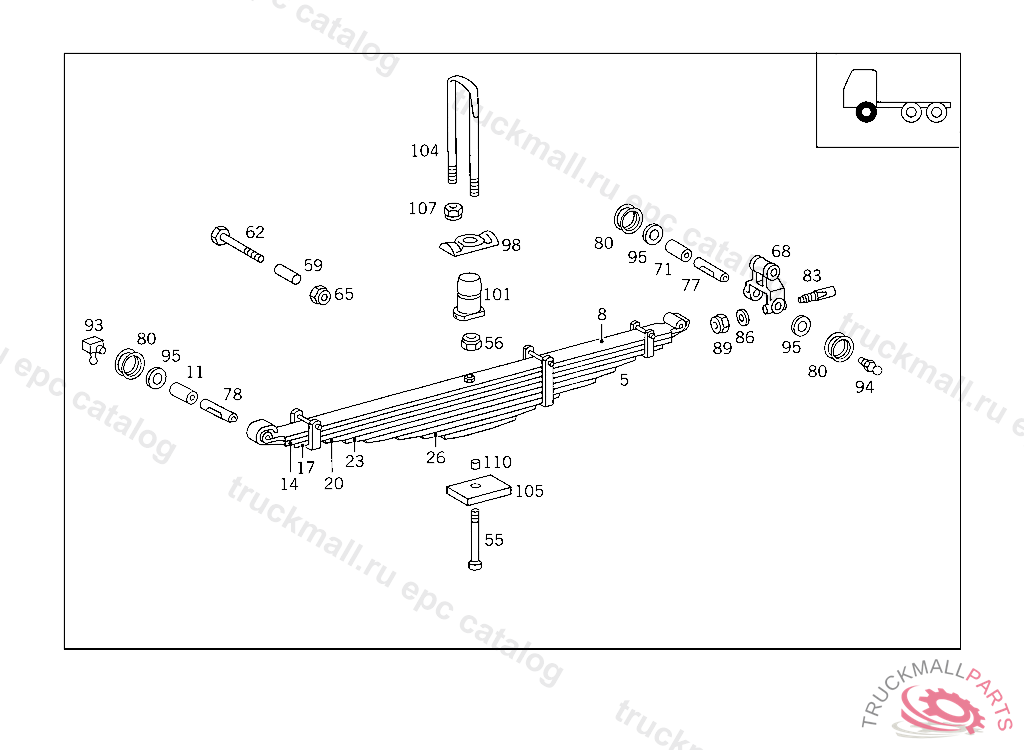

Поз.
Артикул
Описание
5
FRONT SPRING 7-LEAF
5
FRONT SPRING 8-LEAF
5
FRONT SPRING , Replaced By: A6823207202
5
FRONT SPRING , Replaced By: A6823207202
8
SPRING LEAFNO.1,TO 682 320 72 02
11
BUSHING
11
BUSHING
14
SPRING LEAFNO.2, TO 682 320 72 02
17
SPRING LEAFNO.3, TO 682 320 72 02
20
SPRING LEAFNO.4, TO 682 320 72 02
26
SPRING LEAFNO.8, TO 682 320 72 02
55
SPRING BOLTM12X155, TO 682 320 72 02, 75 02
56
NUT , Replaced By: N910113012005
62
SCREW FOR SPRING CLAMPS
62
SCREW SPRING CLAMP TO SPRING LEAF NO.3, TO 682 320 72 02, M 12X110
65
NUT , Replaced By: N910113012003
65
NUT , Replaced By: N910113012003
68
SHACKLE FRONT SPRING SUSPENSION,REAR
71
BUSHING
71
BUSHING
77
SHACKLE PIN FRONT SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
78
SHACKLE PIN FRONT SPRING TO FRONT SPRING FRONT BRACKET
80
SEAL RING SPRING SUSPENSION
83
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
86
WASHER GROUND CABLE
89
NUT BRACKET TO SIDE MEMBER,XB209706
93
GREASE NIPPLE
94
GREASE NIPPLE PROTECTIVE TUBE
94
GREASE NIPPLE PROTECTIVE TUBE
95
WASHER AS REQUIRED 4.20 MM
95
WASHER AS REQUIRED 4.2 MM
95
WASHER AS REQUIRED 4.00 MM
95
WASHER AS REQUIRED
98
PLATE FRONT SPRINGS TO FRONT AXLE
101
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
104
U-BOLT FRONT SPRINGS TO FRONT AXLE 270 MM
104
U-BOLT FRONT SPRINGS TO FRONT AXLE 250 MM
105
SPACER FRONT SPRINGS TO FRONT AXLE
107
NUT STEERING SUPPORT TO FRAME
110
DOWEL PIN FRONT SPRINGS TO FRONT AXLE 38 MM
